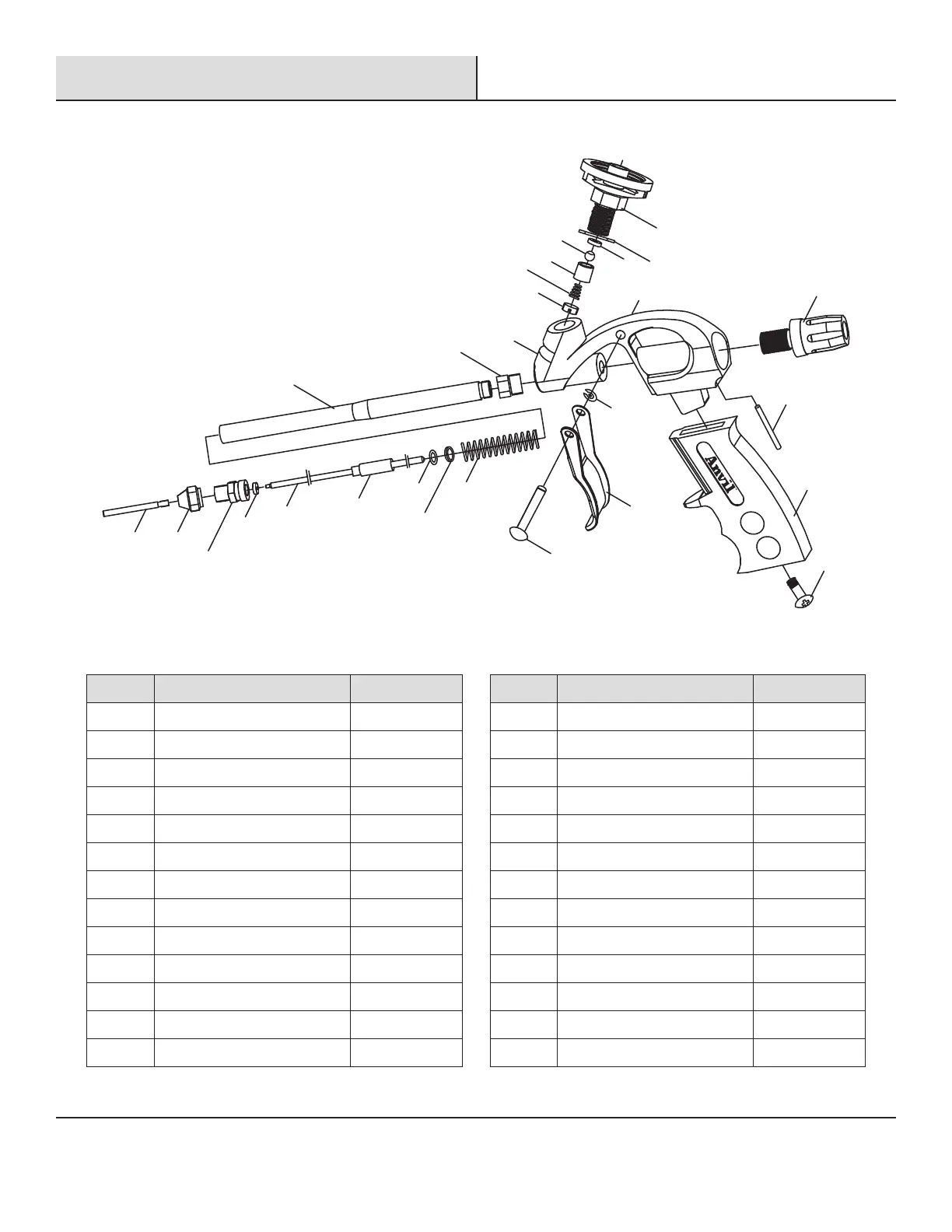

Service Parts
13
12
10
22
19
20
14
21
23
24
25
15
16
17
8
11
18
26
9
7
6
5
4
21
3
Part Description Quantity Part Description Quantity
1 Long nozzle 1 14 Spring 1
2 Nut 1 15 Plastic bushing 1
3 Nozzle 1 16 Plastic bead 1
4 Seal ring 1 17 Seal ring 1
5 Needle 1 18 Paper gasket 1
6 Connecting sleeve 1 19 Can housing 1
7 Gasket 3 20 Flow control knob 1
8 O-ring 1 21 Pin 1
9 Spring 1 22 Handle 1
10 Gun barrel 1 23 Screw 1
11 Connecting nut 1 24 Rivet 1
12 Gun body 1 25 Trigger 1
13 Screw 1 26 Circlip 1
To Next Page
