Anviz M5 Quick Guide

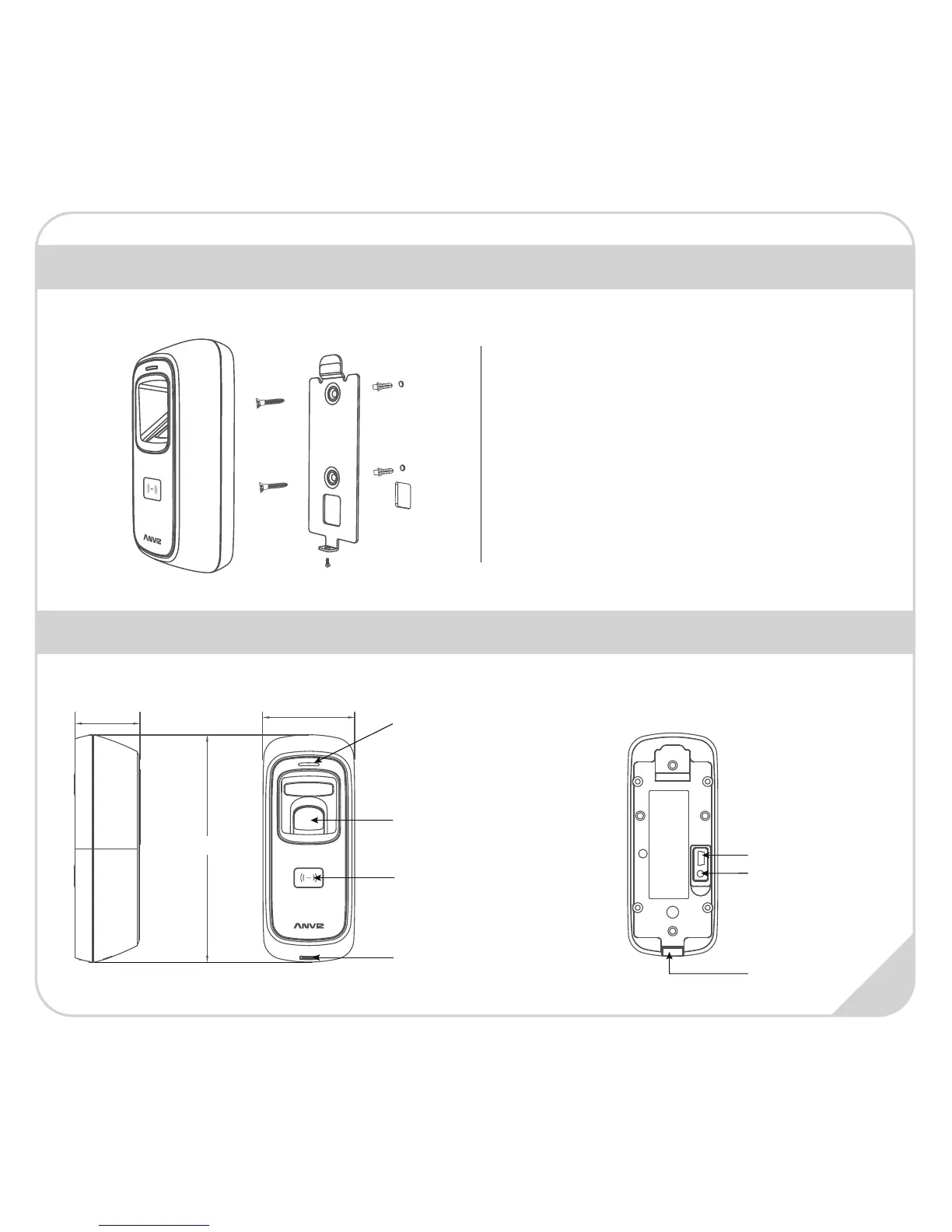

Installation Diagram
Appearance
Steps:
Screw Hole
Mini USB Port
Function Button
Indicator LED
Three colour: Red,
Blue and Green.
Fingerprint Sensor
Place the finger here.
1.36in.
(34.5mm)
4.88in.(124mm)
1.97in. (50mm)
Step1
Step2
Step3
3
Card Reader Area
Swipe the card here.
Step1: Drill holes in the wall follow the hole
position on back panel.
Step2: Install and fix back panel, connect related
cables.
Step3: Place M5 on back panel, fix screw at the
buttom of M5.
Restart button

Anviz M5 Specifications

General

Brand	Anviz
Model	M5
Category	Security System
Language	English
