Anybus CompactCom - Host Interface Signals (Connectors JP3, JP1, JP2, JP17-JP25)

Description 13 (20)
JP20
JP22
JP18
JP19
JP17
JP21
J2
J1
J3
JP25 JP24
C4

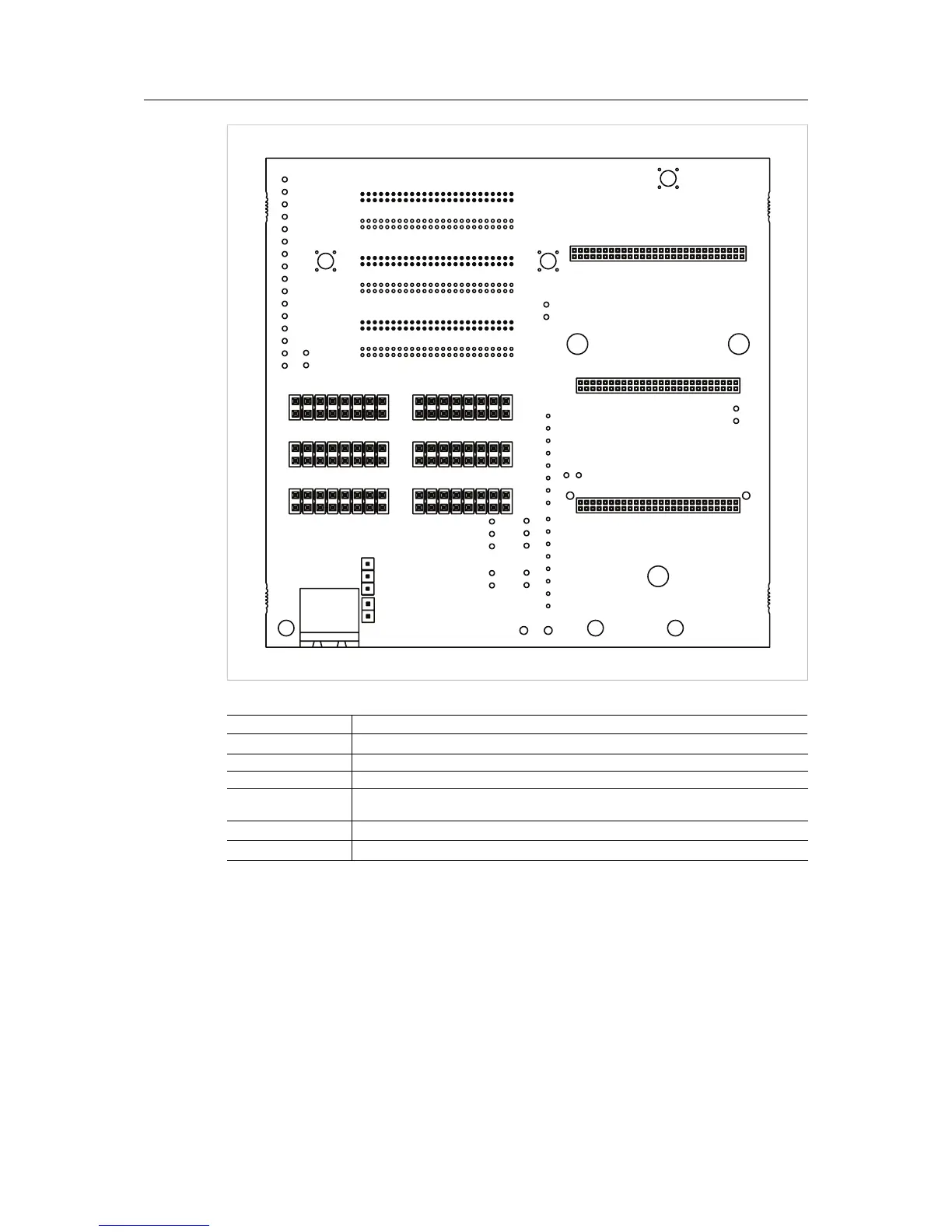

Fig. 6
Header/Connector Description
JP3 Host application interface of brick
JP1 Network interface of brick
JP2 Network interface of connector board
JP17 - JP22 Headers providing access to Anybus CompactCom host interface signals, see Host In-
terface Signals, p. 16
JP24 See Power Source Selection (JP24), p. 15
JP25 See External Power Connector (JP25), p. 14
