- 10 -

Wall Mounting

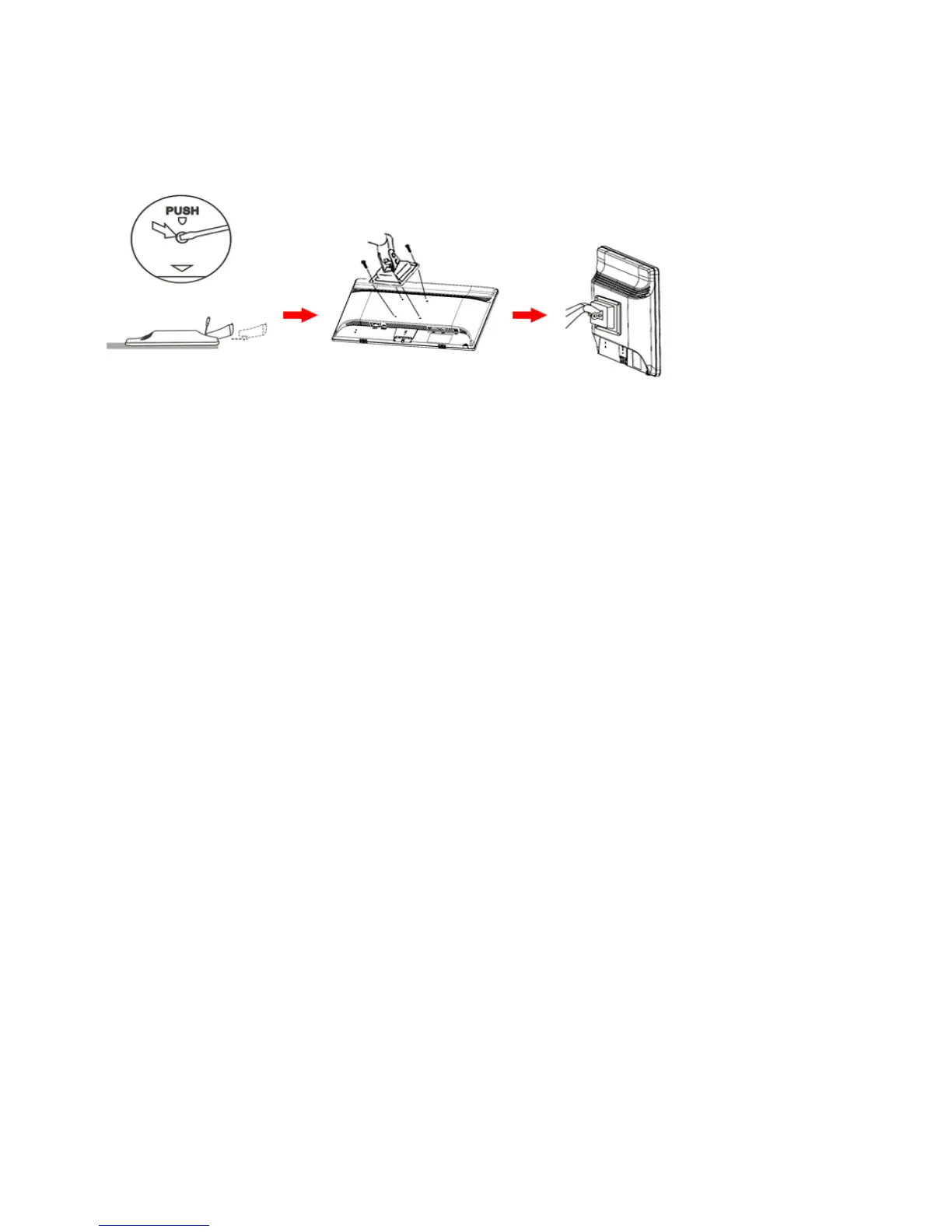

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.

Follow these steps:

1. Remove the base.

2. Follow the manufacturer's instructions to assemble the wall mounting arm.

3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the

back of the monitor.

4. Insert the 4 screws into the holes and tighten.

5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for

instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department

of AOC.

Distance between the wall-mount holes : 100 x 100 mm

Screw specification for wall-mount : M4 x 10

Other manuals for AOC 2036S

Questions and Answers:

Need help?

Do you have a question about the AOC 2036S and is the answer not in the manual?

General

Pixel pitch	0.2768 x 0.2768 mm
Aspect ratio	16:9
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 80 kHz
Viewable size diagonal	508.05 mm
Contrast ratio (dynamic)	60000:1
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Power requirements	90 - 240V, 50 - 60Hz
Display viewable area (HxV)	442.8 x 249.075 mm
AC (power) in	Yes
USB hub version	2.0
DVI-I ports quantity	0
Power consumption (standby)	1 W
Power consumption (typical)	25 W
Certification	FCC, CE, CB, CCC, CUL, TUV/S, TUV-Bauart, ROHS, EPEAT, ISO13406-2
Product color	Black
LED indicators	Stand-by
Tilt angle range	-5 - 20 °
Panel mounting interface	- mm
Package depth	130 mm
Package width	558 mm
Package height	356 mm
Package weight	5900 g
