- 27 -

Preset Display Modes

STAND RESOLUTION

HORIZONTAL

FREQUENCY(kHZ)

VERTICAL

FREQUENCY(Hz)

VGA

640×480 @60Hz DMT

31.469

59.940

VGA 640×480 @67Hz MAC

35.000

66.667

VGA 640×480 @72Hz DMT

37.861

72.809

VGA 640×480 @75Hz DMT

37.500

75.000

Dos-mode 720×400 @70Hz DOS

31.469

70.087

SVGA 800×600 @56Hz DMT

35.156

56.250

SVGA 800×600 @60Hz DMT

37.879

60.317

SVGA 800×600 @72Hz DMT

48.077

72.188

SVGA 800×600 @75Hz DMT

46.875

75.000

SVGA 832×624 @75Hz

49.725

74.550

XGA 1024×768 @60Hz DMT

48.363

60.004

XGA 1024×768 @70Hz DMT

56.476

70.069

XGA 1024×768 @75Hz DMT

60.023

75.029

WSXGA 1600×900 @60Hz DMT

60.000

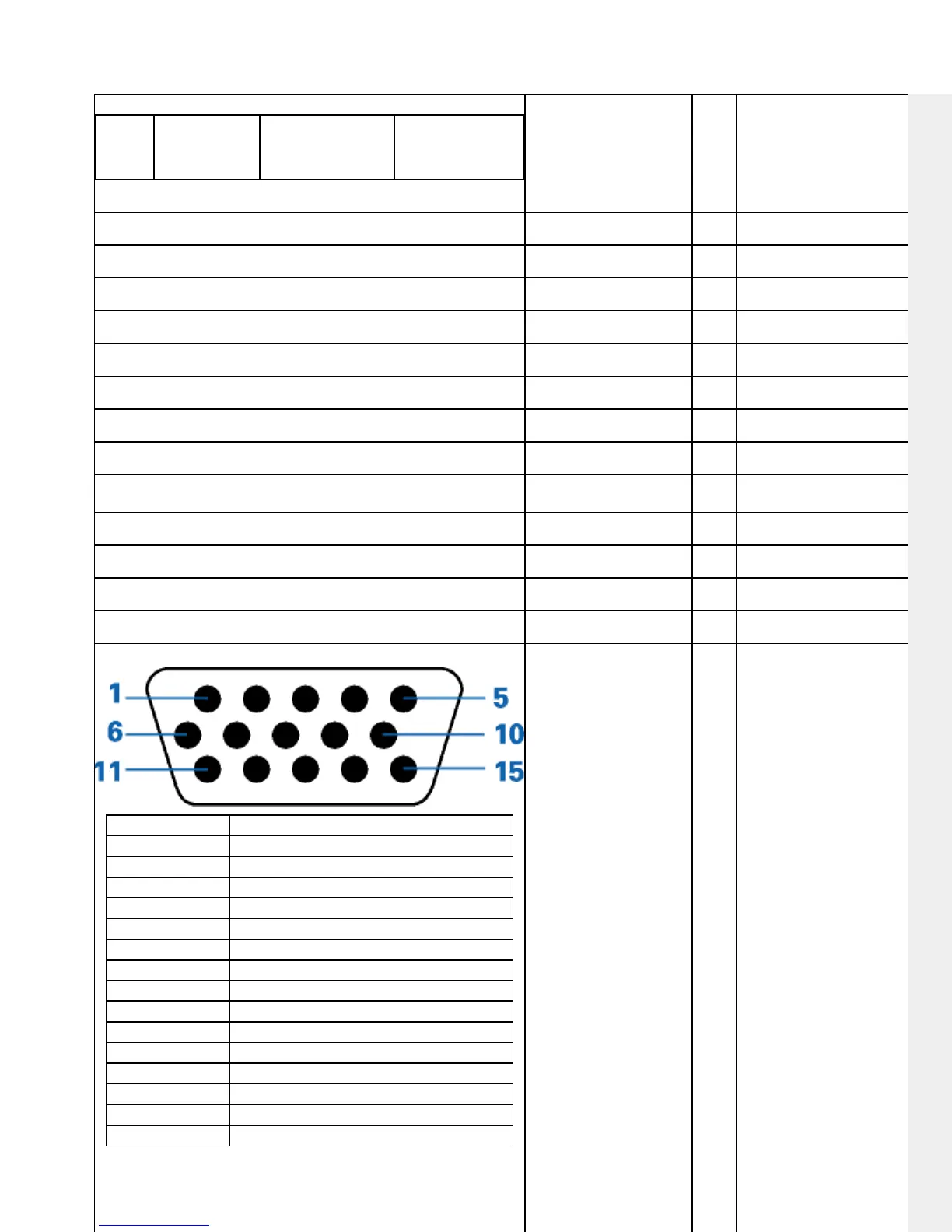

Pin Assignments

Pin Number

15-Pin Side of the Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 N.C.

5 Detect Cable

6 GND-R

7 GND-G

8 GND-B

9 +5V

10 Ground

11 N.C.

12 DDC-Serial data

13 H-sync

14 V-sync

15 DDC-Serial clock

PLUG & PLAY

Other manuals for AOC 2036S

User Manual56 pages

Specifications1 page

Questions and Answers:

Need help?

Do you have a question about the AOC 2036S and is the answer not in the manual?

AOC 2036S Specifications

General

Pixel pitch	0.2768 x 0.2768 mm
Aspect ratio	16:9
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 80 kHz
Viewable size diagonal	508.05 mm
Contrast ratio (dynamic)	60000:1
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Power requirements	90 - 240V, 50 - 60Hz
Display viewable area (HxV)	442.8 x 249.075 mm
AC (power) in	Yes
USB hub version	2.0
DVI-I ports quantity	0
Power consumption (standby)	1 W
Power consumption (typical)	25 W
Certification	FCC, CE, CB, CCC, CUL, TUV/S, TUV-Bauart, ROHS, EPEAT, ISO13406-2
Product color	Black
LED indicators	Stand-by
Tilt angle range	-5 - 20 °
Panel mounting interface	- mm
Package depth	130 mm
Package width	558 mm
Package height	356 mm
Package weight	5900 g
