AOC 2036Sa Service Manual

6
2. LCD Monitor Description
The LCD monitor will contain a main board, a power board, a key board and two USB board which house the flat
panel control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
AC-IN
100V-240V
Power board
(Include: adapter, inverter)
Flat Panel and
CCFL backlight
Main Board
RS232 Connector
For white balance
adjustment in factory
mode
CCFL Drive.
Video signal, DDC
HOST Computer
Ke
y
Board

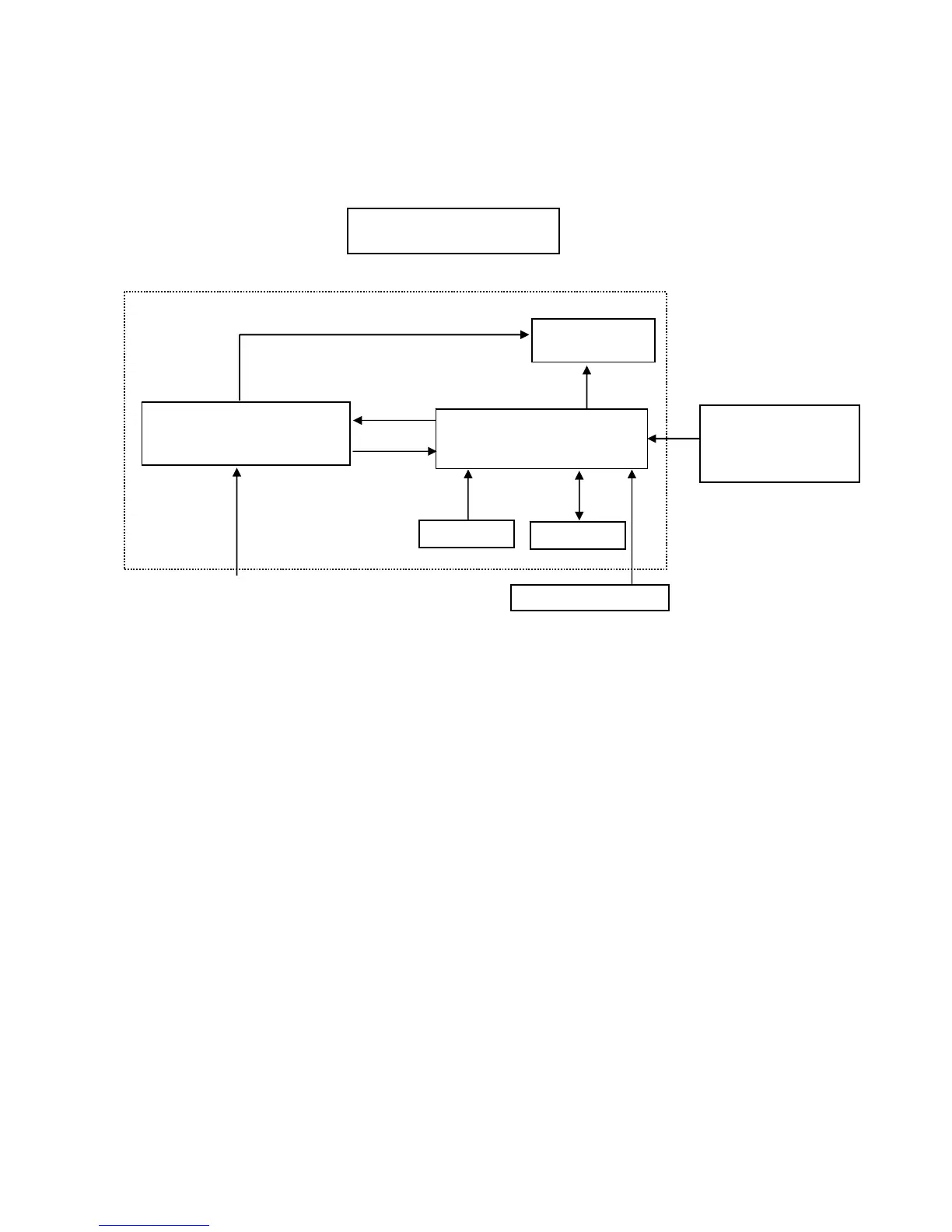

Monitor Block Diagram
USB Board
