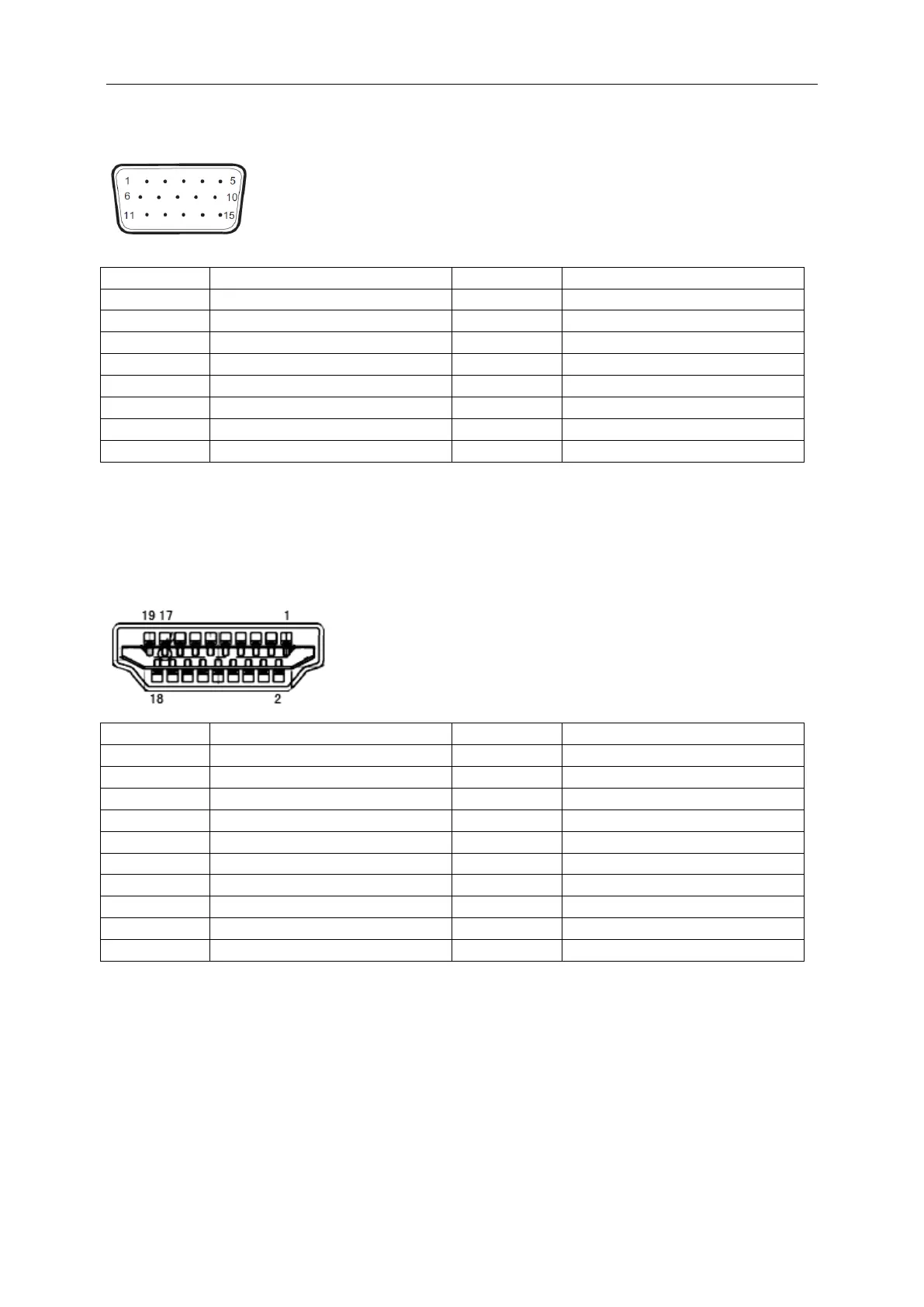

Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
Ground
4
Ground
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +

AOC 24B2XH Specifications

General

Screen Type	led
Tiltable	yes
OS Compatibility	mac, windows
Screen Size	23.8 inches
Panel Type	ips
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	75hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	8 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	20, 000, 000:1
Horizontal Scan Rate	83 kilohertz
VGA Ports	1
Headphones Output	yes
Power Saving Mode	0.5 watts
Power Consumption	19 watts
Width with Stand	21.2 inches
Depth without Stand	6.7 inches
Height without Stand	16.5 inches
Net Weight without Stand	6 pounds
