AOC 24G2SP User Manual

27

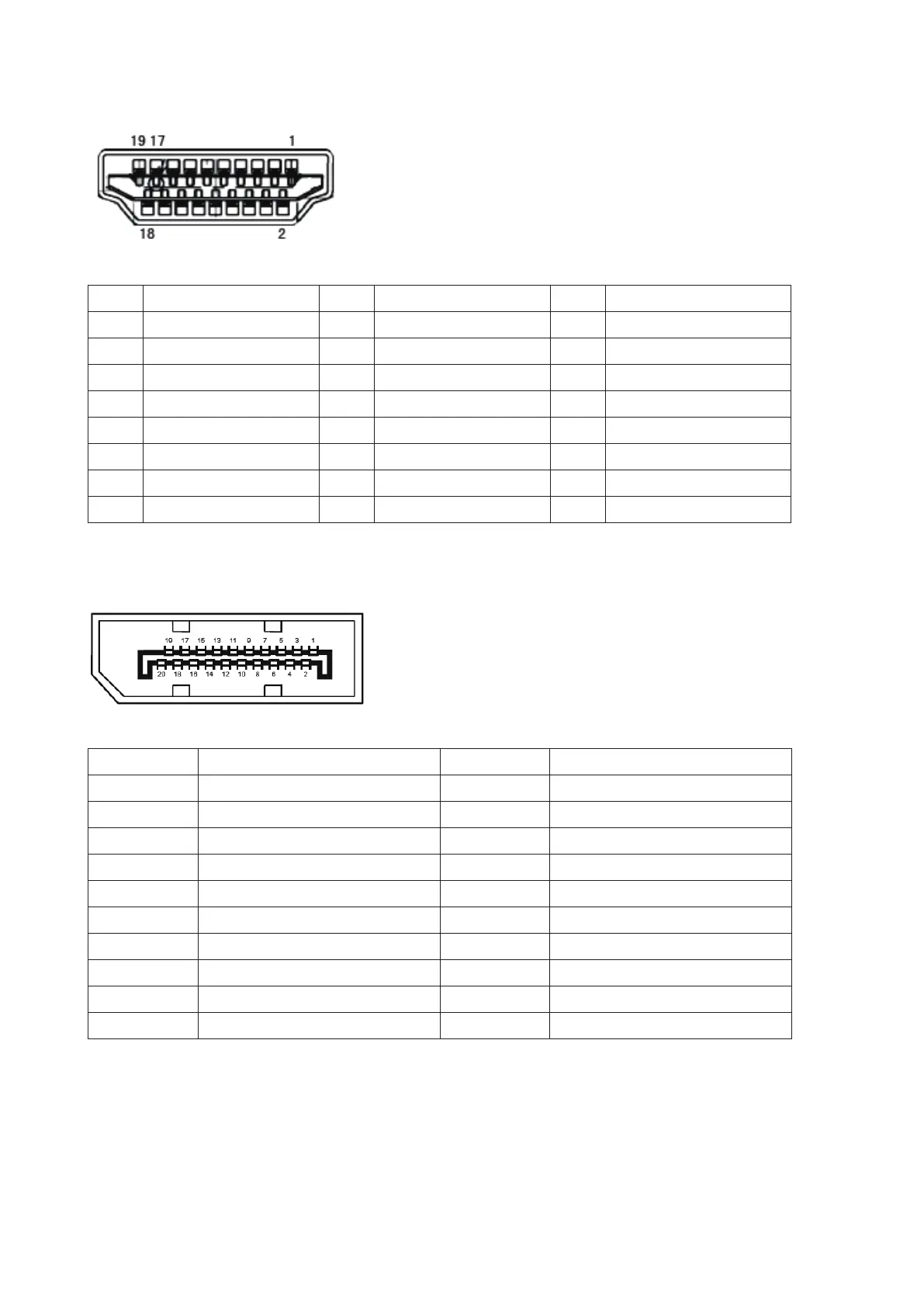

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC 24G2SP Specifications

General

Screen Size	23.8 inches
Panel Type	IPS
Refresh Rate	165 Hz
Response Time	1 ms (MPRT)
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1
Adaptive Sync	AMD FreeSync Premium
VESA Mount	100x100 mm
Stand Adjustments	Height, Tilt, Swivel, Pivot
Resolution	1920 x 1080
Color Gamut	126% sRGB
Ports	1x DisplayPort 1.2, 2x HDMI 1.4, 1x VGA
