26

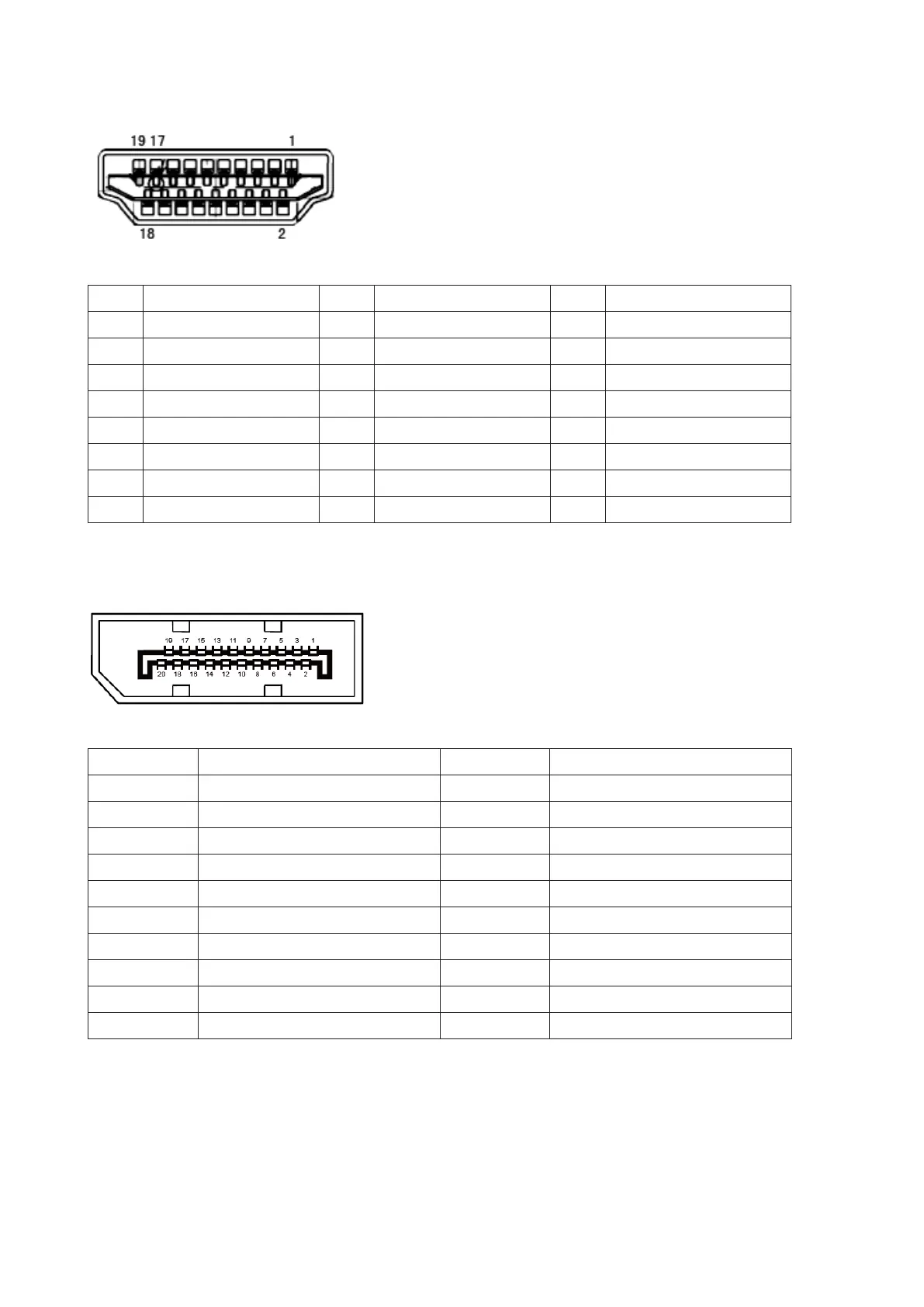

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC 24G2SPAE and is the answer not in the manual?

AOC 24G2SPAE Specifications

General IconGeneral
Feet colorBlack/Red
CertificationISO 9241-307
Product colorBlack, Red
Detachable standYes
Market positioningGaming
Screen shapeFlat
Pixel density93 ppi
Backlight typeW-LED
Display diagonal23.8 \
Anti-glare screenAlways gives an optimal view, even in direct sunlight.
Display technologyLED
Native aspect ratio16:9
sRGB coverage (typical)125 %
Contrast ratio (dynamic)80000000:1
Contrast ratio (typical)1000:1
Display number of colors16.7 million colors
Display diagonal (metric)60 cm
Display brightness (typical)300 cd/m²
Supported graphics resolutions1920 x 1080 (HD 1080)
Tilt angle range-5 - 23 °
Cable lock slot typeKensington
Number of OSD languages16
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
RMS rated power2 W
Number of speakers2
HDMI version1.4
DisplayPort version1.2
Headphone connectivity3.5 mm
NVIDIA G-SYNC-
AMD FreeSync refresh rate range48 - 165 Hz
Sustainability certificatesRoHS, CE
Power supply typeInternal
Energy efficiency scaleA to G
Power consumption (standby)0.3 W
Power consumption (typical)22 W
Cables includedAC
DisplayPort cable length1.8 m
Exterior finish typeMatt
Package depth184 mm
Package width605 mm
Package height492 mm
Package weight5650 g
Weight and Dimensions IconWeight and Dimensions
Width (with stand)539.05 mm
Weight (with stand)3750 g
