AOC 24G4X User Manual

28

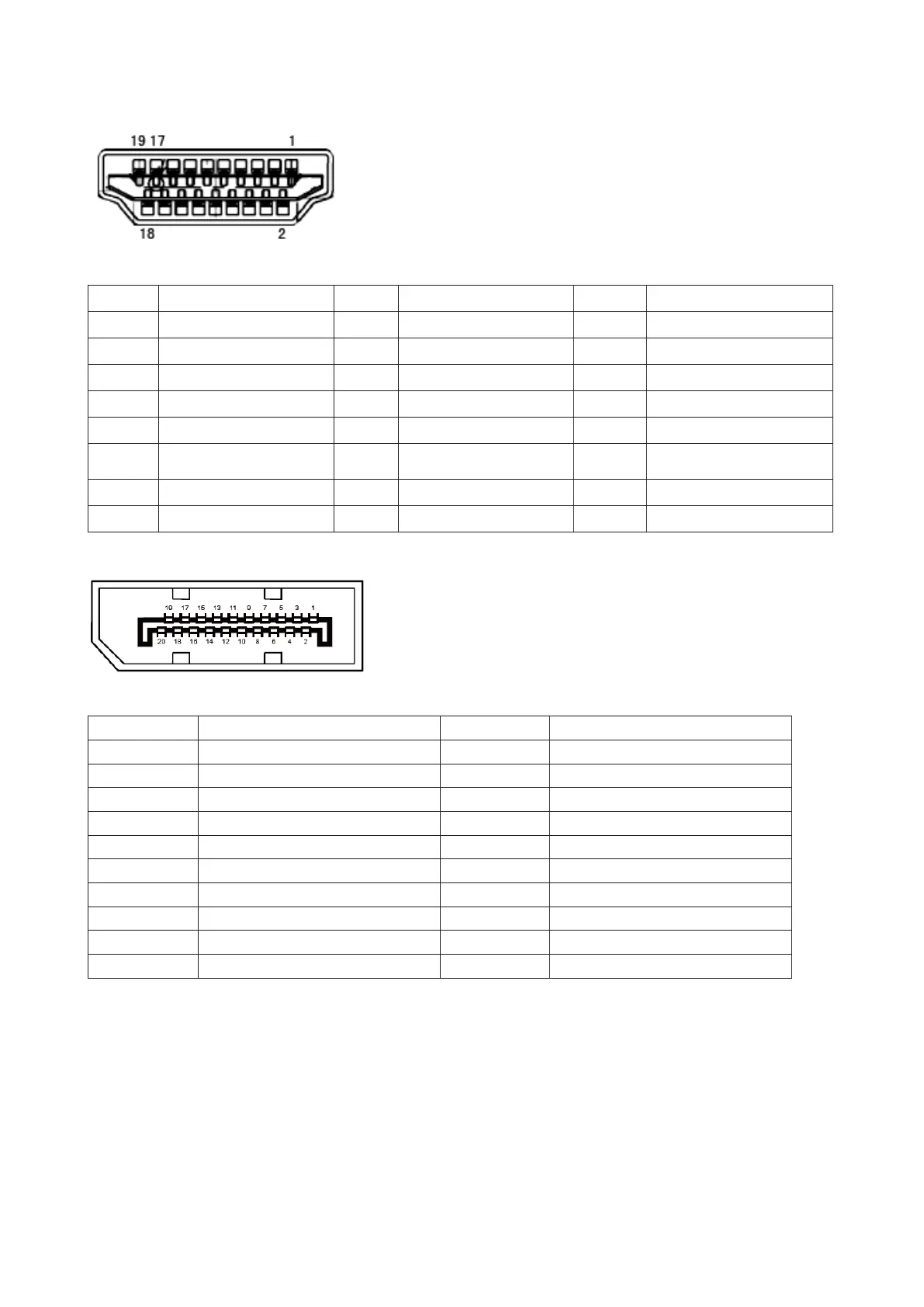

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14.
Reserved (N.C. on
device)
7. TMDS Data 0+ 15. SCL
8.
TMDS Data 0 Shield 16.
SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC 24G4X Specifications

General

Warranty period	3 year(s)
DDC/CI	Yes
Pixel pitch	0.2745 x 0.2745 mm
Screen shape	Flat
Response time	0.5 ms
Display diagonal	23.8 \
Display technology	LCD
Native aspect ratio	-
Vertical scan range	48 - 180 Hz
Maximum refresh rate	180 Hz
Horizontal scan range	30 - 200 kHz
Viewable size, vertical	296.46 mm
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Viewable size, horizontal	527.04 mm
High Dynamic Range (HDR) technology	DisplayHDR 400, High Dynamic Range 10 (HDR10)
Pivot angle	-91 - 91 °
Tilt angle range	-5 - 23 °
Input current	1.5 A
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Power consumption (max)	37 W
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Feet color	Black
Market positioning	Gaming
Cables included	AC
Package type	Box
