AOC 519Sw - 4.3 Panel Specifications

15" LCD Color Monitor AOC 519Sw
12

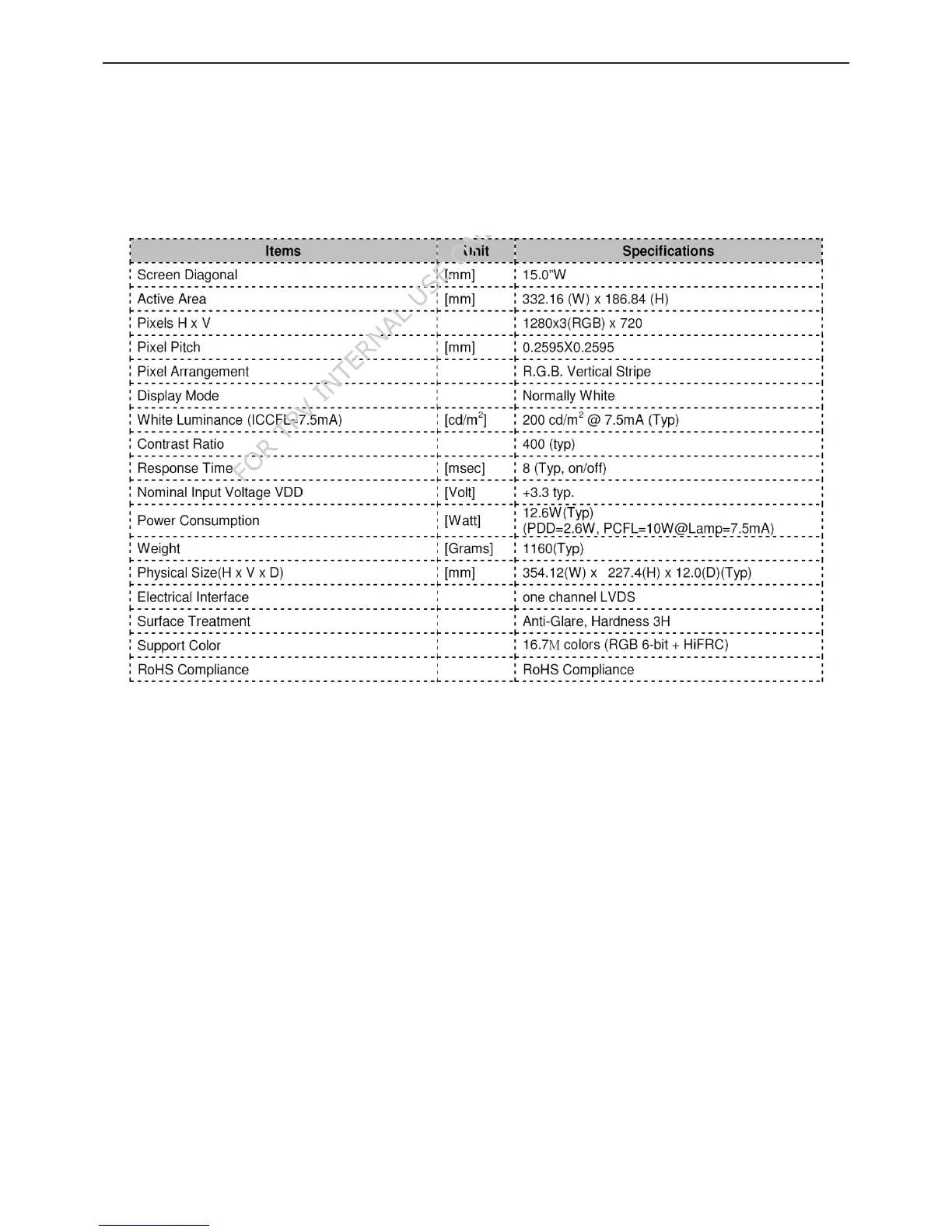

4.3. Panel Specification
4.3.1 General Feature
M150EW01 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and
backlight system.
The screen format is intended to support the WXGA (1280(H) x 720(V)) screen and 16.7M colors. All input signals
are LVDS interface compatible. Inverter of backlight is not included.
