8
CONNECTING THE MONITOR

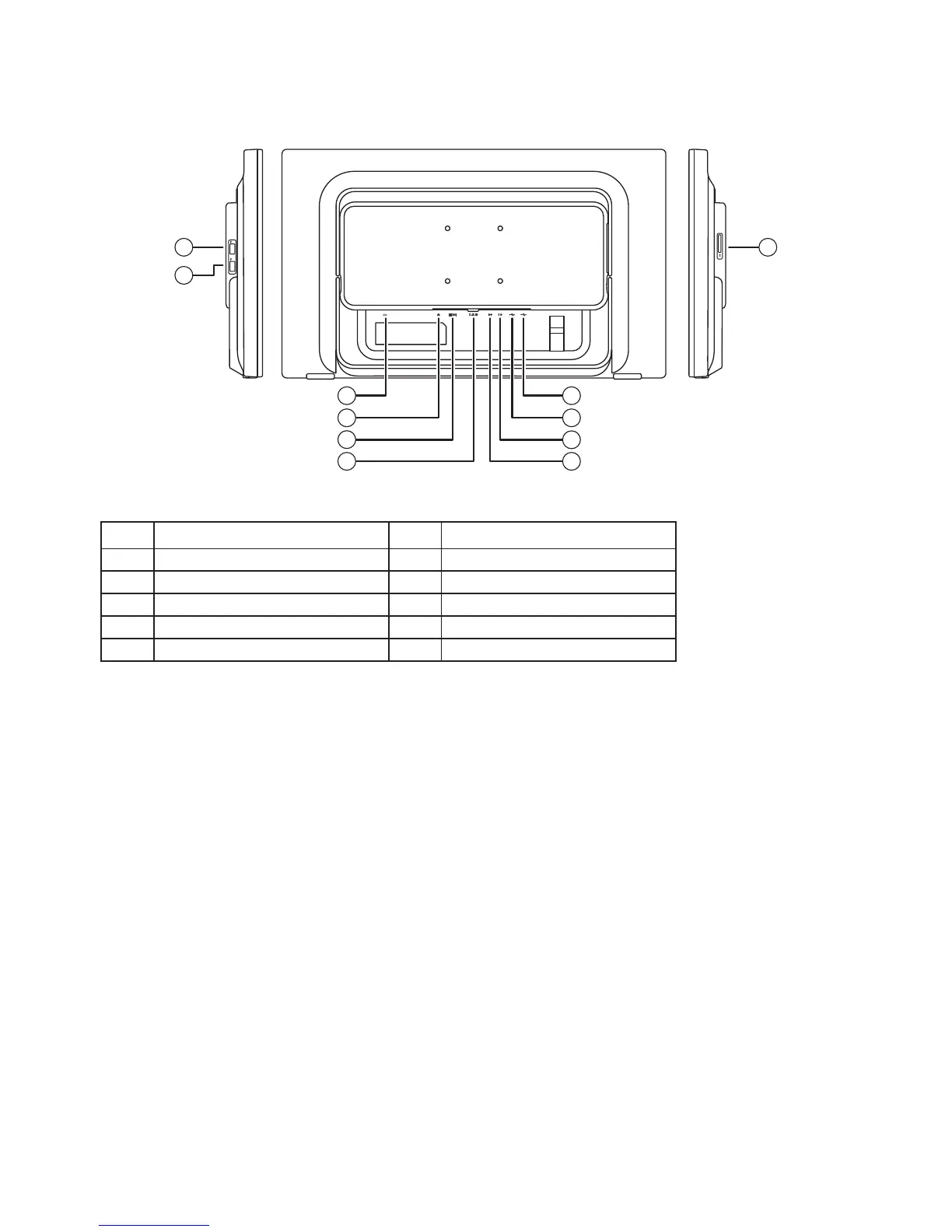

Cable Connections In Back of Monitor and Computer:
1
2
3
4
8
10 9
11
7
6
5
1. USB port 7. RJ45 (10/100Mbps)
2. USB port 8. Power input
3. Earphone out 9. SD
4. Audio In 10. USB port
5. D-SUB Signal input 11. USB port
6. HDMI Signal input
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other
end to the computer’s D-Sub port.
3. Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to
the back of the monitor and connect the other end to the computer’s HDMI port.
4. Turn on your monitor and computer.
5. Video content supporting resolution: VGA / HDMI: 1920 x 1080/60Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please
refer Troubleshooting on page 37.
