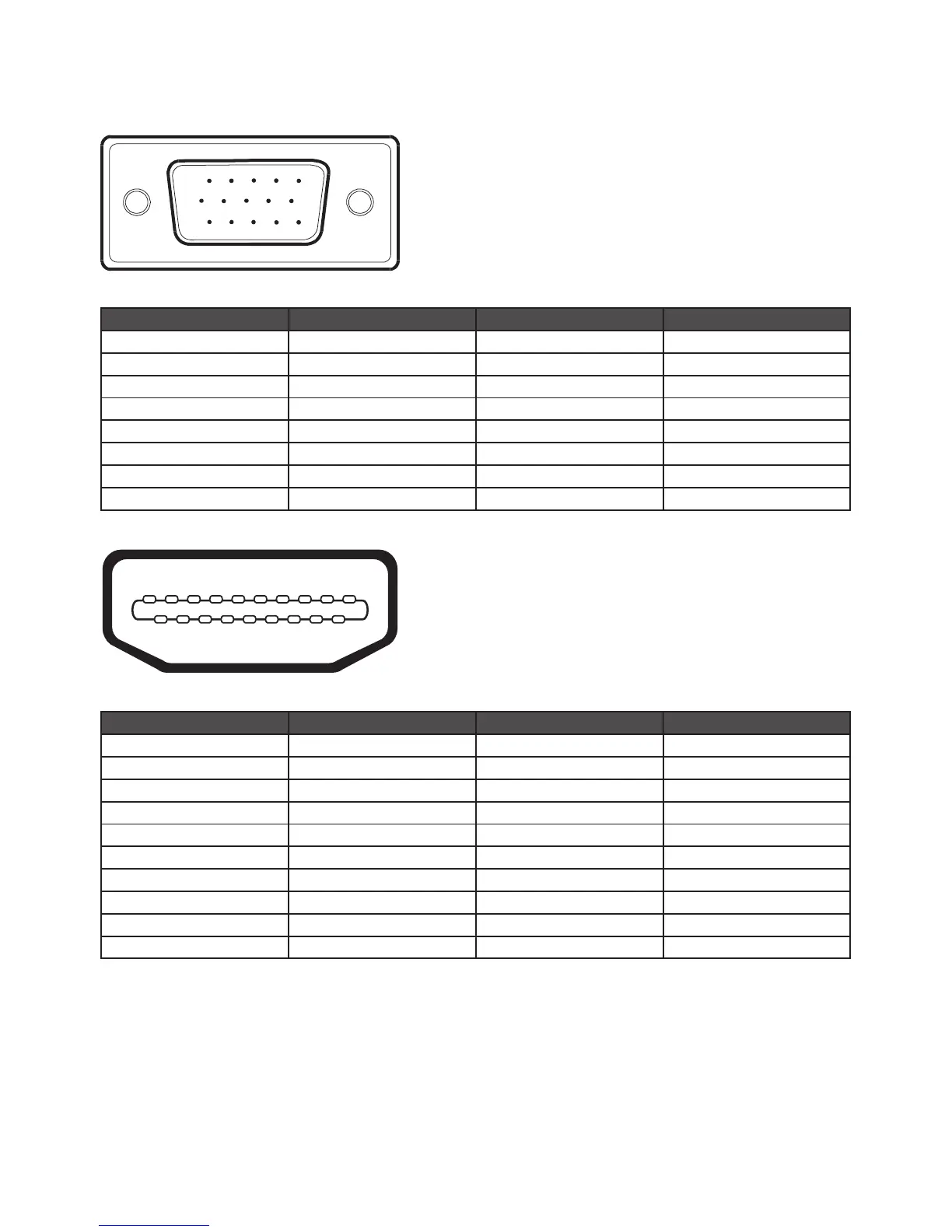

PIN ASSIGNMENTS

1 5

11 15

15 - Pin Color Display Signal Cable

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. Red 9. +5V

2. Green 10. Ground

3. Blue 11. Ground

4. Ground 12. DDC-Serial Data

5. Detect Cable 13. H-Sync

6. R-Ground 14. V-Sync

7. G-Ground 15. DDC-Serial Clock

8. B-Ground

135791113151719

24681012141618

19 - Pin Color Display Signal Cable

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. TMDS Data 2+ 11. TMDS data Shield

2. TMDS Data 2 Shield 12. TMDS data ck-

3. TMDS Data 2- 13. CEC

4. TMDS data 1+ 14. N.C

5. TMDS data 1 Shield 15. DDC SCL

6. TMDS data 1- 16. DDC CLK

7. TMDS data 0+ 17. DDC/CEC Ground

8. TMDS data 0 Shield 18. +5 V Power

9. TMDS data 0- 19. Hot Plug Detect

10. TMDS data ck+

AOC A2258PW User Manual
