Connecting the Monitor

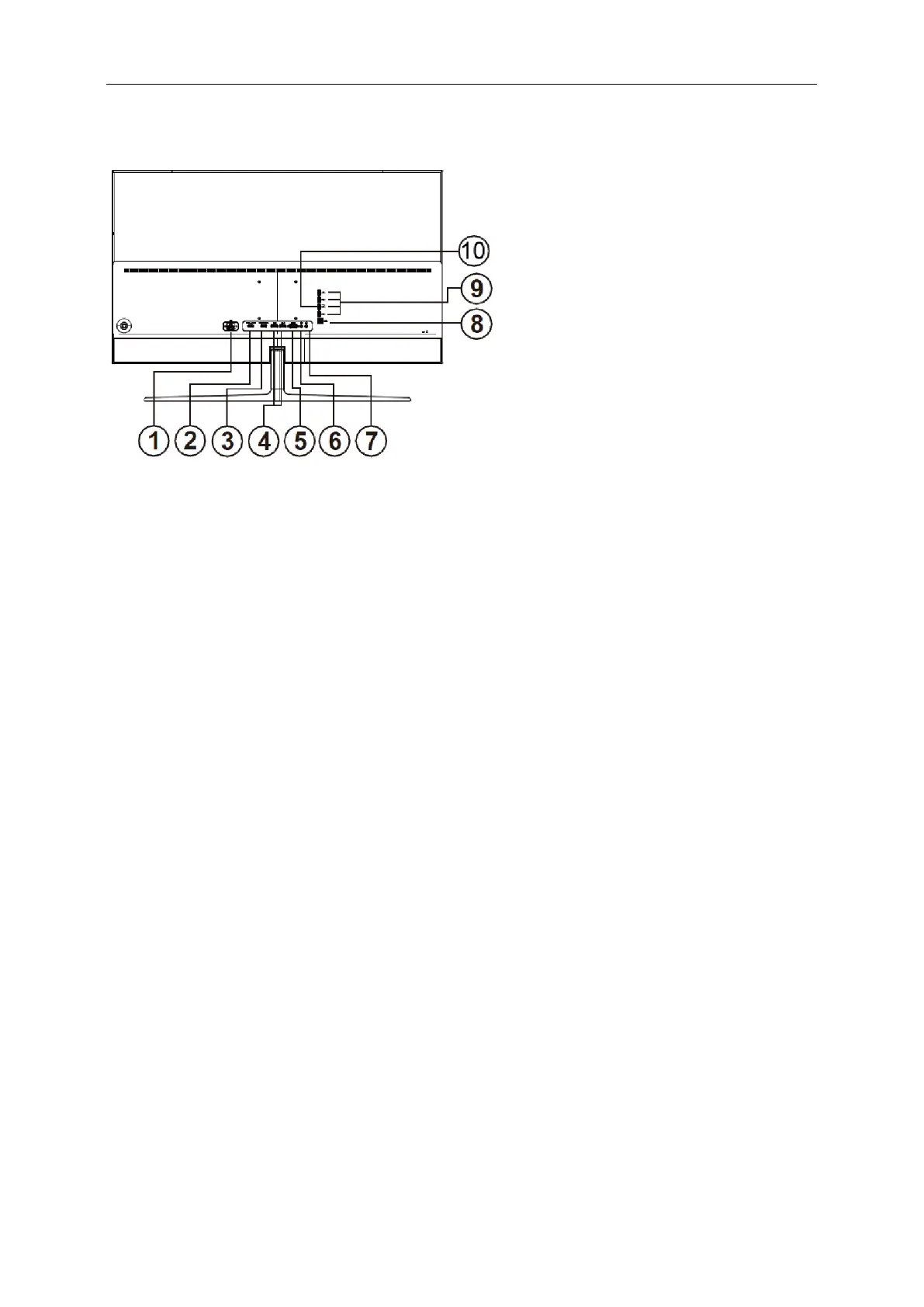

Cable Connections In Back of Monitor and Computer:
1 Power
2 HDMI1.4b/MHL
3 HDMI2.0/MHL
4 DisplayPortx2
5 D-SUB
6 AUDIO IN
7 Earphone out
8 USB-PC(USB3.0 upstream）
9 USB 3.0x4
10 USB3.0+ charger function
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
4 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
5 Turn on your monitor and computer.
6 Video content supporting resolution (Maximum):
(1) VGA/MHL: 1920 x 1080/60Hz
(2) HDMI1.4: 3840 x 2160/30Hz; HDMI2.0: 3840 x 2160/60Hz
(3) DP1.1: 3840 x 2160/30Hz; DP1.2: 3840 x 2160/60Hz
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
