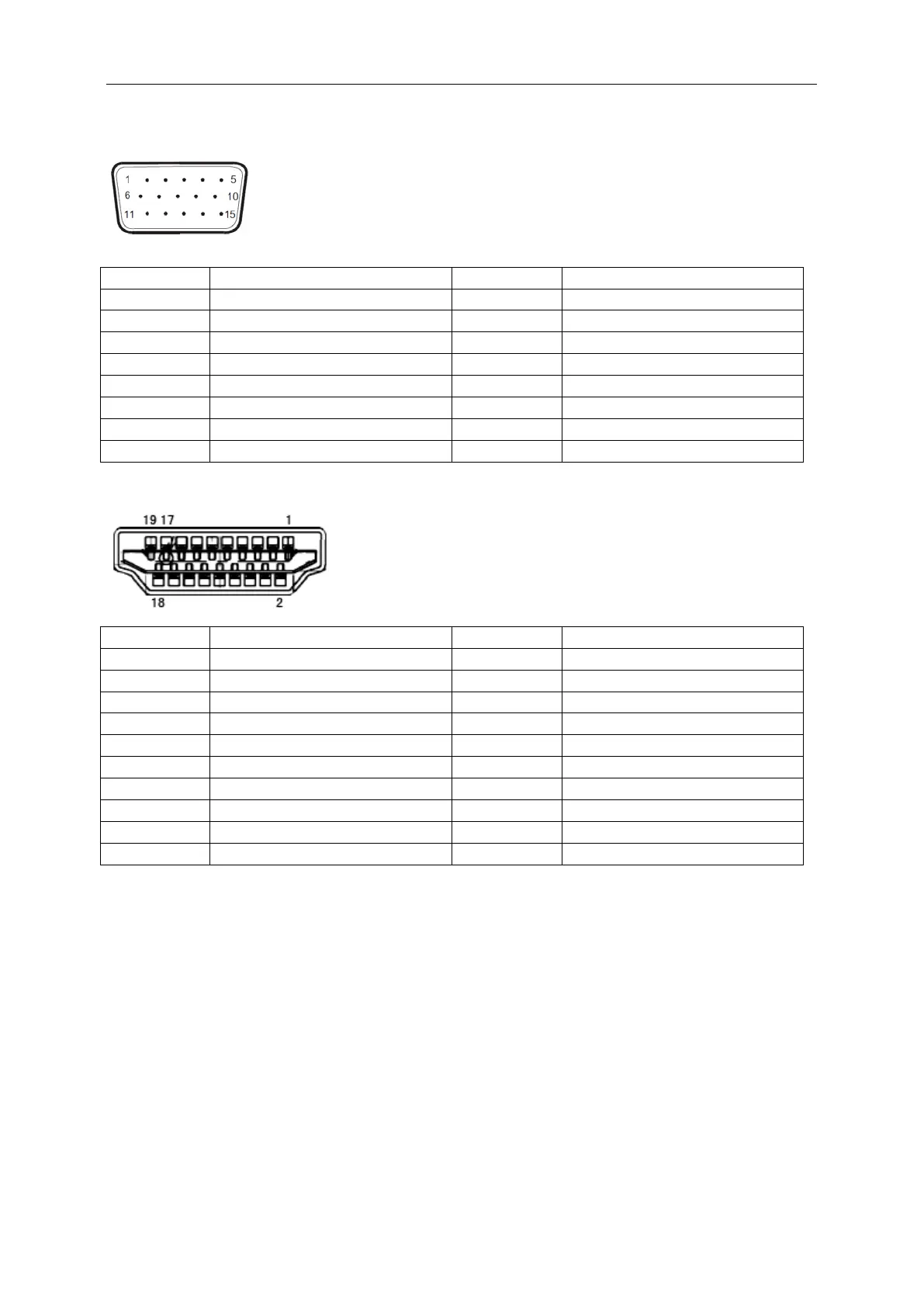

Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock
3 TMDS Data 2 13 CEC
4 TMDS Data 1+ 14 Reserved (N.C. on device
5 TMDS Data 1Shield 15 SCL
6
TMDS Data 1
16
SDA
7 TMDS Data 0+ 17 DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +
52

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC C4008VU8 and is the answer not in the manual?

AOC C4008VU8 Specifications

General IconGeneral
Colorwhite/silver, multi
Tiltableyes
Screen Size40 inches
Aspect Ratio16:9
Resolution3840 x 2160
Native Resolution3840 x 2160
Refresh Rate60hz
Horizontal Viewing Angle178 degrees
Vertical Viewing Angle178 degrees
Response Time5 milliseconds
Brightness300 candela per square meter
Contrast Ratio20, 000, 000:1
Power Consumption47 watts
Width with Stand35.7 inches
Net Weight without Stand26.1 pounds
