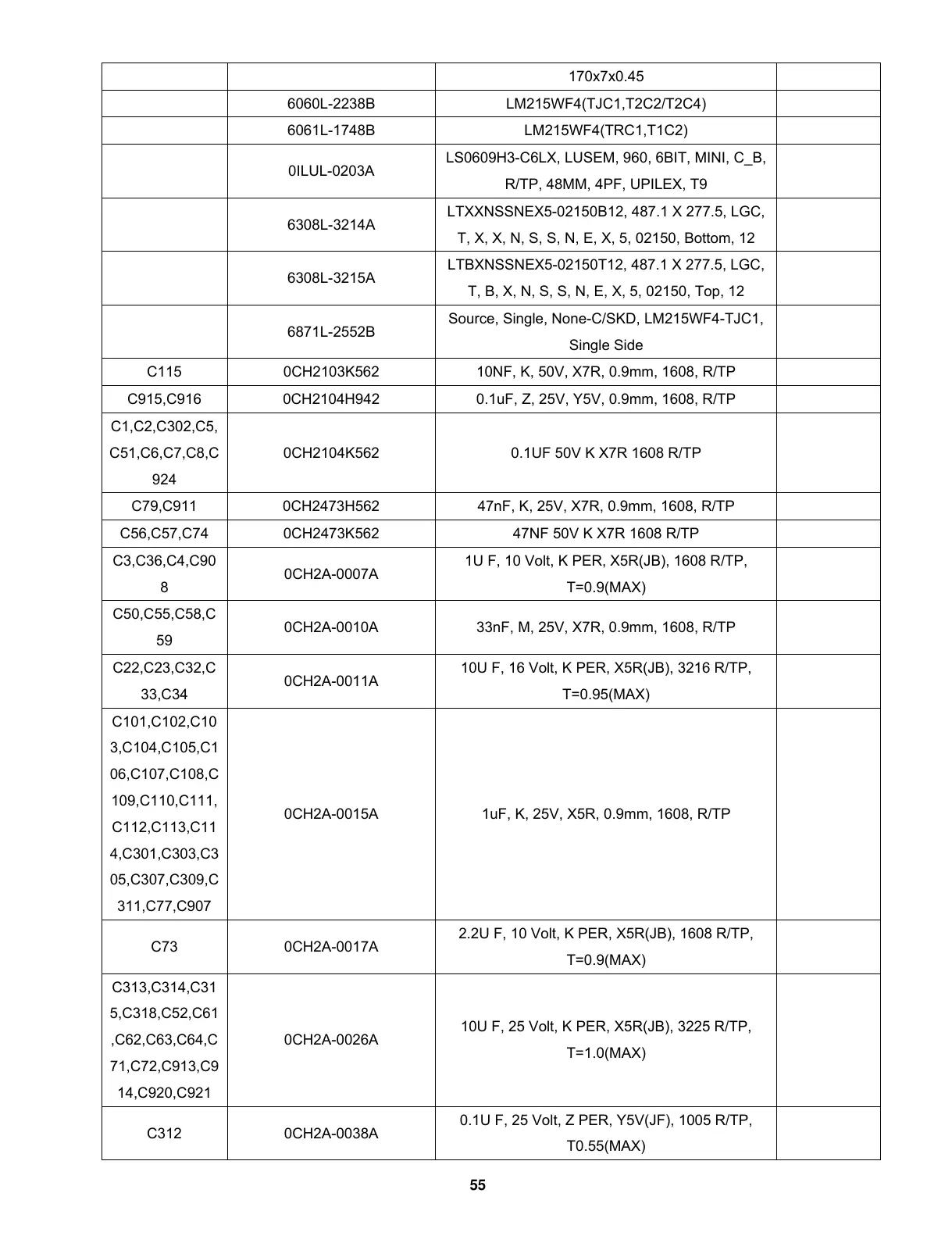

AOC e2260Swda Service Manual

55
170x7x0.45
6060L-2238B LM215WF4(TJC1,T2C2/T2C4)
6061L-1748B LM215WF4(TRC1,T1C2)
0ILUL-0203A
LS0609H3-C6LX, LUSEM, 960, 6BIT, MINI, C_B,
R/TP, 48MM, 4PF, UPILEX, T9
6308L-3214A
LTXXNSSNEX5-02150B12, 487.1 X 277.5, LGC,
T, X, X, N, S, S, N, E, X, 5, 02150, Bottom, 12
6308L-3215A
LTBXNSSNEX5-02150T12, 487.1 X 277.5, LGC,
T, B, X, N, S, S, N, E, X, 5, 02150, Top, 12
6871L-2552B
Source, Single, None-C/SKD, LM215WF4-TJC1,
Single Side
C115 0CH2103K562 10NF, K, 50V, X7R, 0.9mm, 1608, R/TP
C915,C916 0CH2104H942 0.1uF, Z, 25V, Y5V, 0.9mm, 1608, R/TP
C1,C2,C302,C5,
C51,C6,C7,C8,C
924
0CH2104K562 0.1UF 50V K X7R 1608 R/TP
C79,C911 0CH2473H562 47nF, K, 25V, X7R, 0.9mm, 1608, R/TP
C56,C57,C74 0CH2473K562 47NF 50V K X7R 1608 R/TP
C3,C36,C4,C90
8
0CH2A-0007A
1U F, 10 Volt, K PER, X5R(JB), 1608 R/TP,
T=0.9(MAX)
C50,C55,C58,C
59
0CH2A-0010A 33nF, M, 25V, X7R, 0.9mm, 1608, R/TP
C22,C23,C32,C
33,C34
0CH2A-0011A
10U F, 16 Volt, K PER, X5R(JB), 3216 R/TP,
T=0.95(MAX)
C101,C102,C10
3,C104,C105,C1
06,C107,C108,C
109,C110,C111,
C112,C113,C11
4,C301,C303,C3
05,C307,C309,C
311,C77,C907
0CH2A-0015A 1uF, K, 25V, X5R, 0.9mm, 1608, R/TP
C73 0CH2A-0017A
2.2U F, 10 Volt, K PER, X5R(JB), 1608 R/TP,
T=0.9(MAX)
C313,C314,C31
5,C318,C52,C61
,C62,C63,C64,C
71,C72,C913,C9
14,C920,C921
0CH2A-0026A
10U F, 25 Volt, K PER, X5R(JB), 3225 R/TP,
T=1.0(MAX)
C312 0CH2A-0038A
0.1U F, 25 Volt, Z PER, Y5V(JF), 1005 R/TP,
T0.55(MAX)
