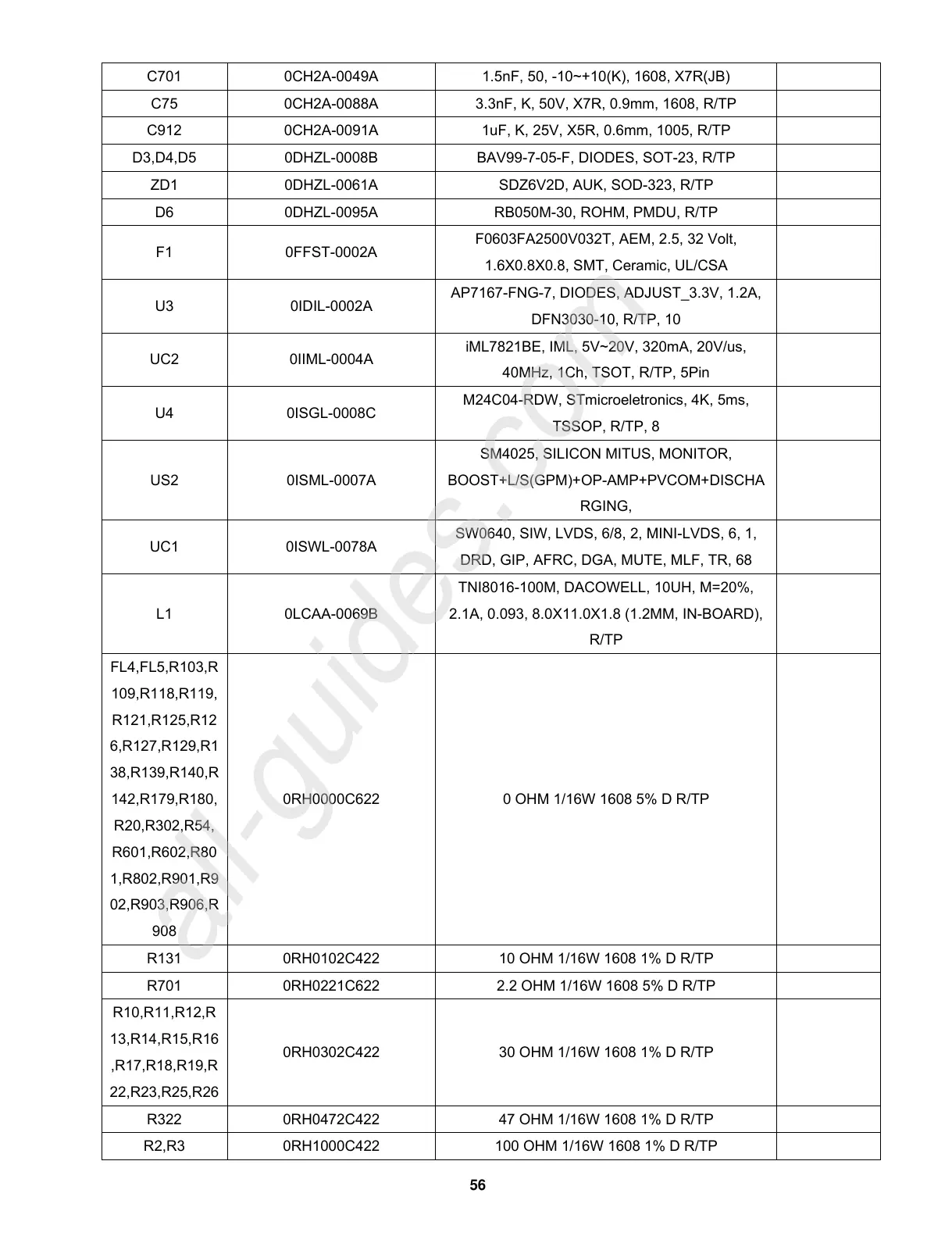

AOC e2260Swda Service Manual

56
C701 0CH2A-0049A 1.5nF, 50, -10~+10(K), 1608, X7R(JB)
C75 0CH2A-0088A 3.3nF, K, 50V, X7R, 0.9mm, 1608, R/TP
C912 0CH2A-0091A 1uF, K, 25V, X5R, 0.6mm, 1005, R/TP
D3,D4,D5 0DHZL-0008B BAV99-7-05-F, DIODES, SOT-23, R/TP
ZD1 0DHZL-0061A SDZ6V2D, AUK, SOD-323, R/TP
D6 0DHZL-0095A RB050M-30, ROHM, PMDU, R/TP
F1 0FFST-0002A
F0603FA2500V032T, AEM, 2.5, 32 Volt,
1.6X0.8X0.8, SMT, Ceramic, UL/CSA
U3 0IDIL-0002A
AP7167-FNG-7, DIODES, ADJUST_3.3V, 1.2A,
DFN3030-10, R/TP, 10
UC2 0IIML-0004A
iML7821BE, IML, 5V~20V, 320mA, 20V/us,
40MHz, 1Ch, TSOT, R/TP, 5Pin
U4 0ISGL-0008C
M24C04-RDW, STmicroeletronics, 4K, 5ms,
TSSOP, R/TP, 8
US2 0ISML-0007A
SM4025, SILICON MITUS, MONITOR,
BOOST+L/S(GPM)+OP-AMP+PVCOM+DISCHA
RGING,
UC1 0ISWL-0078A
SW0640, SIW, LVDS, 6/8, 2, MINI-LVDS, 6, 1,
DRD, GIP, AFRC, DGA, MUTE, MLF, TR, 68
L1 0LCAA-0069B
TNI8016-100M, DACOWELL, 10UH, M=20%,
2.1A, 0.093, 8.0X11.0X1.8 (1.2MM, IN-BOARD),
R/TP
FL4,FL5,R103,R
109,R118,R119,
R121,R125,R12
6,R127,R129,R1
38,R139,R140,R
142,R179,R180,
R20,R302,R54,
R601,R602,R80
1,R802,R901,R9
02,R903,R906,R
908
0RH0000C622 0 OHM 1/16W 1608 5% D R/TP
R131 0RH0102C422 10 OHM 1/16W 1608 1% D R/TP
R701 0RH0221C622 2.2 OHM 1/16W 1608 5% D R/TP
R10,R11,R12,R
13,R14,R15,R16
,R17,R18,R19,R
22,R23,R25,R26
0RH0302C422 30 OHM 1/16W 1608 1% D R/TP
R322 0RH0472C422 47 OHM 1/16W 1608 1% D R/TP
R2,R3 0RH1000C422 100 OHM 1/16W 1608 1% D R/TP
All manuals and user guides at all-guides.com
all-guides.com

AOC e2260Swda Specifications

General

Color	textured black, black
Screen Type	led
Tiltable	yes
Touch Screen	no
Webcam	no
OS Compatibility	windows
Screen Size	21.5 inches
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	60hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	160 degrees
Response Time	5 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	20, 000, 000:1
Horizontal Scan Rate	80 kilohertz
Built-In Speakers	no
Headphones Output	no
Power Consumption	20 watts
Width with Stand	20.1 inches
Net Weight without Stand	6 pounds
