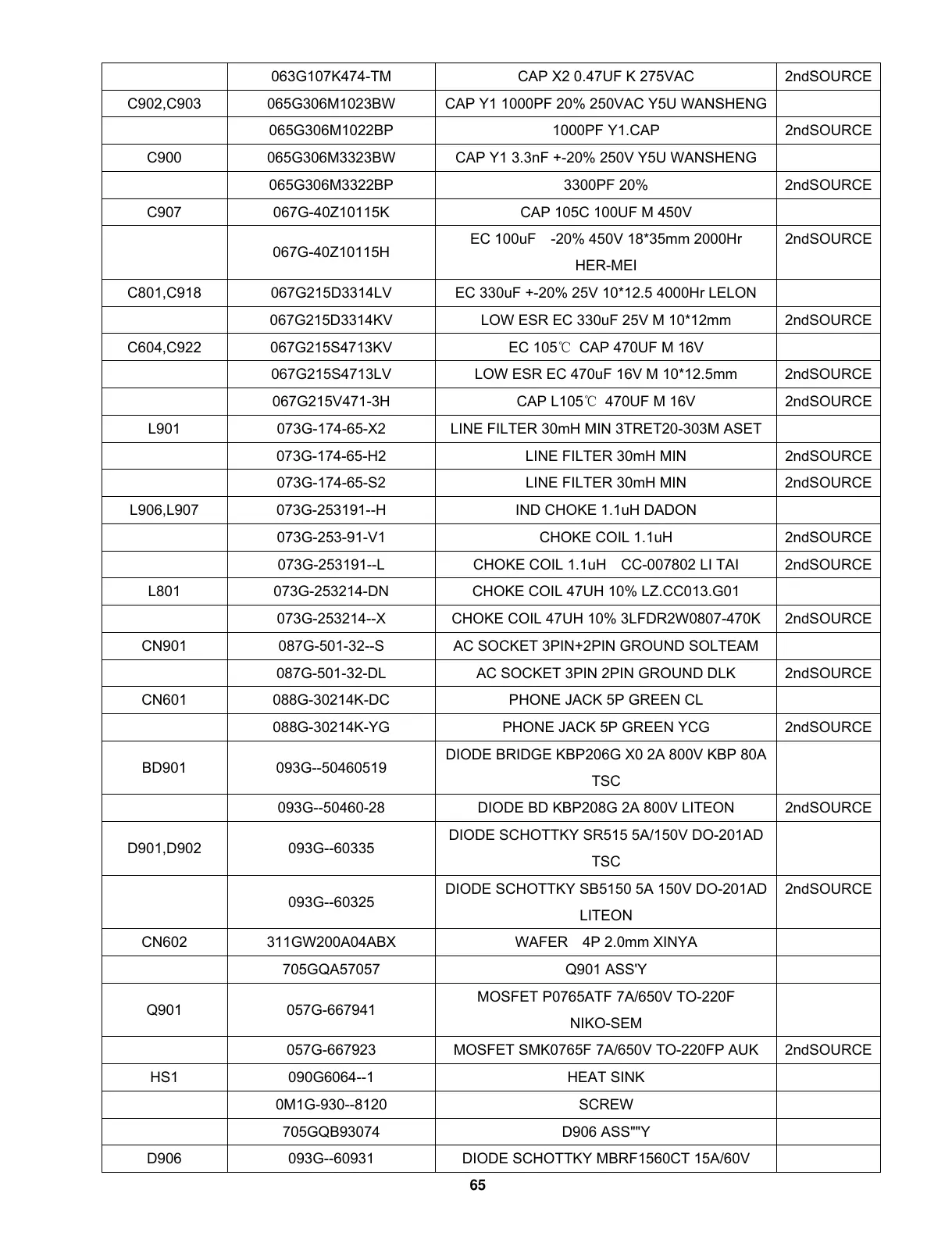

063G107K474-TM CAP X2 0.47UF K 275VAC 2ndSOURCE
C902,C903 065G306M1023BW CAP Y1 1000PF 20% 250VAC Y5U WANSHENG
065G306M1022BP 1000PF Y1.CAP 2ndSOURCE
C900 065G306M3323BW CAP Y1 3.3nF +-20% 250V Y5U WANSHENG
065G306M3322BP 3300PF 20% 2ndSOURCE
C907 067G-40Z10115K CAP 105C 100UF M 450V
067G-40Z10115H
EC 100uF -20% 450V 18*35mm 2000Hr
HER-MEI
2ndSOURCE
C801,C918 067G215D3314LV EC 330uF +-20% 25V 10*12.5 4000Hr LELON
067G215D3314KV LOW ESR EC 330uF 25V M 10*12mm 2ndSOURCE
C604,C922 067G215S4713KV
EC 105 CAP 470UF M 16V
067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm 2ndSOURCE
067G215V471-3H
CAP L105 470UF M 16V
2ndSOURCE
L901 073G-174-65-X2 LINE FILTER 30mH MIN 3TRET20-303M ASET
073G-174-65-H2 LINE FILTER 30mH MIN 2ndSOURCE
073G-174-65-S2 LINE FILTER 30mH MIN 2ndSOURCE
L906,L907 073G-253191--H IND CHOKE 1.1uH DADON
073G-253-91-V1 CHOKE COIL 1.1uH 2ndSOURCE
073G-253191--L CHOKE COIL 1.1uH CC-007802 LI TAI 2ndSOURCE
L801 073G-253214-DN CHOKE COIL 47UH 10% LZ.CC013.G01
073G-253214--X CHOKE COIL 47UH 10% 3LFDR2W0807-470K 2ndSOURCE
CN901 087G-501-32--S AC SOCKET 3PIN+2PIN GROUND SOLTEAM
087G-501-32-DL AC SOCKET 3PIN 2PIN GROUND DLK 2ndSOURCE
CN601 088G-30214K-DC PHONE JACK 5P GREEN CL
088G-30214K-YG PHONE JACK 5P GREEN YCG 2ndSOURCE
BD901 093G--50460519
DIODE BRIDGE KBP206G X0 2A 800V KBP 80A
TSC
093G--50460-28 DIODE BD KBP208G 2A 800V LITEON 2ndSOURCE
D901,D902 093G--60335
DIODE SCHOTTKY SR515 5A/150V DO-201AD
TSC
093G--60325
DIODE SCHOTTKY SB5150 5A 150V DO-201AD
LITEON
2ndSOURCE
CN602 311GW200A04ABX WAFER 4P 2.0mm XINYA
705GQA57057 Q901 ASS'Y
Q901 057G-667941
MOSFET P0765ATF 7A/650V TO-220F
NIKO-SEM
057G-667923 MOSFET SMK0765F 7A/650V TO-220FP AUK 2ndSOURCE
HS1 090G6064--1 HEAT SINK
0M1G-930--8120 SCREW
705GQB93074 D906 ASS""Y
D906 093G--60931 DIODE SCHOTTKY MBRF1560CT 15A/60V
