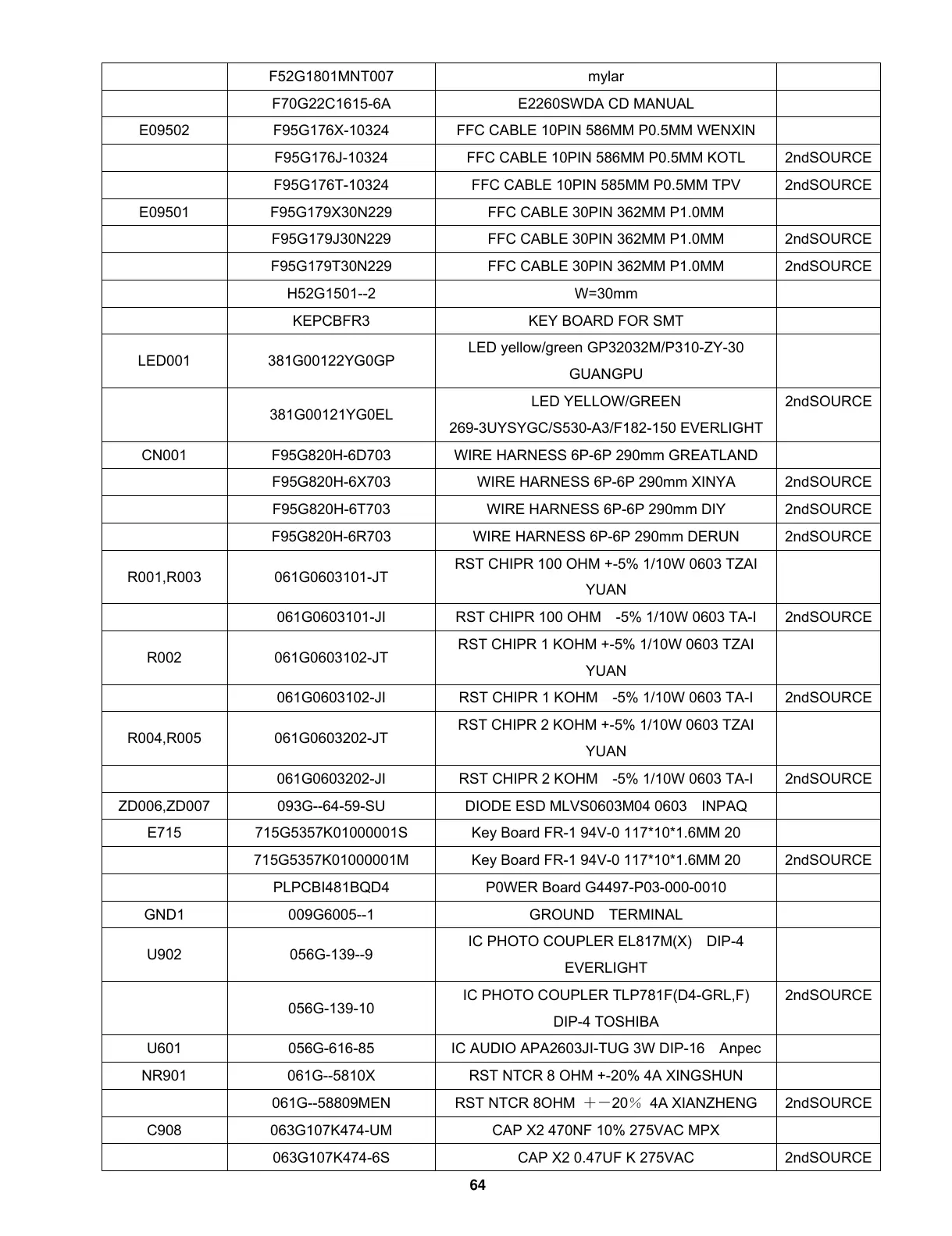

64
F52G1801MNT007 mylar
F70G22C1615-6A E2260SWDA CD MANUAL
E09502 F95G176X-10324 FFC CABLE 10PIN 586MM P0.5MM WENXIN
F95G176J-10324 FFC CABLE 10PIN 586MM P0.5MM KOTL 2ndSOURCE
F95G176T-10324 FFC CABLE 10PIN 585MM P0.5MM TPV 2ndSOURCE
E09501 F95G179X30N229 FFC CABLE 30PIN 362MM P1.0MM
F95G179J30N229 FFC CABLE 30PIN 362MM P1.0MM 2ndSOURCE
F95G179T30N229 FFC CABLE 30PIN 362MM P1.0MM 2ndSOURCE
H52G1501--2 W=30mm
KEPCBFR3 KEY BOARD FOR SMT
LED001 381G00122YG0GP
LED yellow/green GP32032M/P310-ZY-30
GUANGPU
381G00121YG0EL
LED YELLOW/GREEN
269-3UYSYGC/S530-A3/F182-150 EVERLIGHT
2ndSOURCE
CN001 F95G820H-6D703 WIRE HARNESS 6P-6P 290mm GREATLAND
F95G820H-6X703 WIRE HARNESS 6P-6P 290mm XINYA 2ndSOURCE
F95G820H-6T703 WIRE HARNESS 6P-6P 290mm DIY 2ndSOURCE
F95G820H-6R703 WIRE HARNESS 6P-6P 290mm DERUN 2ndSOURCE
R001,R003 061G0603101-JT
RST CHIPR 100 OHM +-5% 1/10W 0603 TZAI
YUAN
061G0603101-JI RST CHIPR 100 OHM -5% 1/10W 0603 TA-I 2ndSOURCE
R002 061G0603102-JT
RST CHIPR 1 KOHM +-5% 1/10W 0603 TZAI
YUAN
061G0603102-JI RST CHIPR 1 KOHM -5% 1/10W 0603 TA-I 2ndSOURCE
R004,R005 061G0603202-JT
RST CHIPR 2 KOHM +-5% 1/10W 0603 TZAI
YUAN
061G0603202-JI RST CHIPR 2 KOHM -5% 1/10W 0603 TA-I 2ndSOURCE
ZD006,ZD007 093G--64-59-SU DIODE ESD MLVS0603M04 0603 INPAQ
E715 715G5357K01000001S Key Board FR-1 94V-0 117*10*1.6MM 20
715G5357K01000001M Key Board FR-1 94V-0 117*10*1.6MM 20 2ndSOURCE
PLPCBI481BQD4 P0WER Board G4497-P03-000-0010
GND1 009G6005--1 GROUND TERMINAL
U902 056G-139--9
IC PHOTO COUPLER EL817M(X) DIP-4
EVERLIGHT
056G-139-10
IC PHOTO COUPLER TLP781F(D4-GRL,F)
DIP-4 TOSHIBA
2ndSOURCE
U601 056G-616-85 IC AUDIO APA2603JI-TUG 3W DIP-16 Anpec
NR901 061G--5810X RST NTCR 8 OHM +-20% 4A XINGSHUN
061G--58809MEN
RST NTCR 8OHM +-20 4A XIANZHENG
2ndSOURCE
C908 063G107K474-UM CAP X2 470NF 10% 275VAC MPX
063G107K474-6S CAP X2 0.47UF K 275VAC 2ndSOURCE
