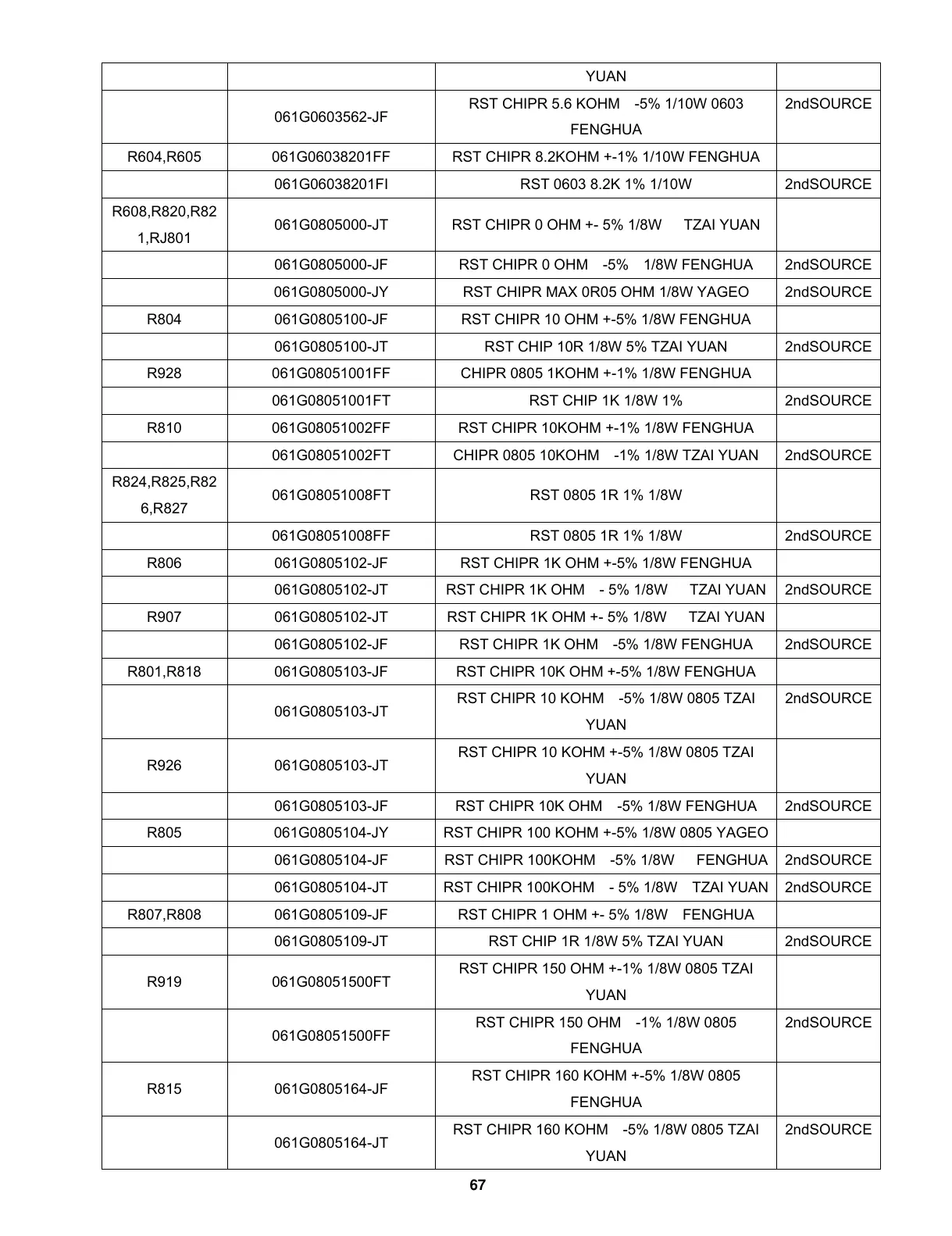

AOC e2260Swda Service Manual

67
YUAN
061G0603562-JF
RST CHIPR 5.6 KOHM -5% 1/10W 0603
FENGHUA
2ndSOURCE
R604,R605 061G06038201FF RST CHIPR 8.2KOHM +-1% 1/10W FENGHUA
061G06038201FI RST 0603 8.2K 1% 1/10W 2ndSOURCE
R608,R820,R82
1,RJ801
061G0805000-JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN
061G0805000-JF RST CHIPR 0 OHM -5% 1/8W FENGHUA 2ndSOURCE
061G0805000-JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO 2ndSOURCE
R804 061G0805100-JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
061G0805100-JT RST CHIP 10R 1/8W 5% TZAI YUAN 2ndSOURCE
R928 061G08051001FF CHIPR 0805 1KOHM +-1% 1/8W FENGHUA
061G08051001FT RST CHIP 1K 1/8W 1% 2ndSOURCE
R810 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
061G08051002FT CHIPR 0805 10KOHM -1% 1/8W TZAI YUAN 2ndSOURCE
R824,R825,R82
6,R827
061G08051008FT RST 0805 1R 1% 1/8W
061G08051008FF RST 0805 1R 1% 1/8W 2ndSOURCE
R806 061G0805102-JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
061G0805102-JT RST CHIPR 1K OHM - 5% 1/8W TZAI YUAN 2ndSOURCE
R907 061G0805102-JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
061G0805102-JF RST CHIPR 1K OHM -5% 1/8W FENGHUA 2ndSOURCE
R801,R818 061G0805103-JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
061G0805103-JT
RST CHIPR 10 KOHM -5% 1/8W 0805 TZAI
YUAN
2ndSOURCE
R926 061G0805103-JT
RST CHIPR 10 KOHM +-5% 1/8W 0805 TZAI
YUAN
061G0805103-JF RST CHIPR 10K OHM -5% 1/8W FENGHUA 2ndSOURCE
R805 061G0805104-JY RST CHIPR 100 KOHM +-5% 1/8W 0805 YAGEO
061G0805104-JF RST CHIPR 100KOHM -5% 1/8W FENGHUA 2ndSOURCE
061G0805104-JT RST CHIPR 100KOHM - 5% 1/8W TZAI YUAN 2ndSOURCE
R807,R808 061G0805109-JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA
061G0805109-JT RST CHIP 1R 1/8W 5% TZAI YUAN 2ndSOURCE
R919 061G08051500FT
RST CHIPR 150 OHM +-1% 1/8W 0805 TZAI
YUAN
061G08051500FF
RST CHIPR 150 OHM -1% 1/8W 0805
FENGHUA
2ndSOURCE
R815 061G0805164-JF
RST CHIPR 160 KOHM +-5% 1/8W 0805
FENGHUA
061G0805164-JT
RST CHIPR 160 KOHM -5% 1/8W 0805 TZAI
YUAN
2ndSOURCE
