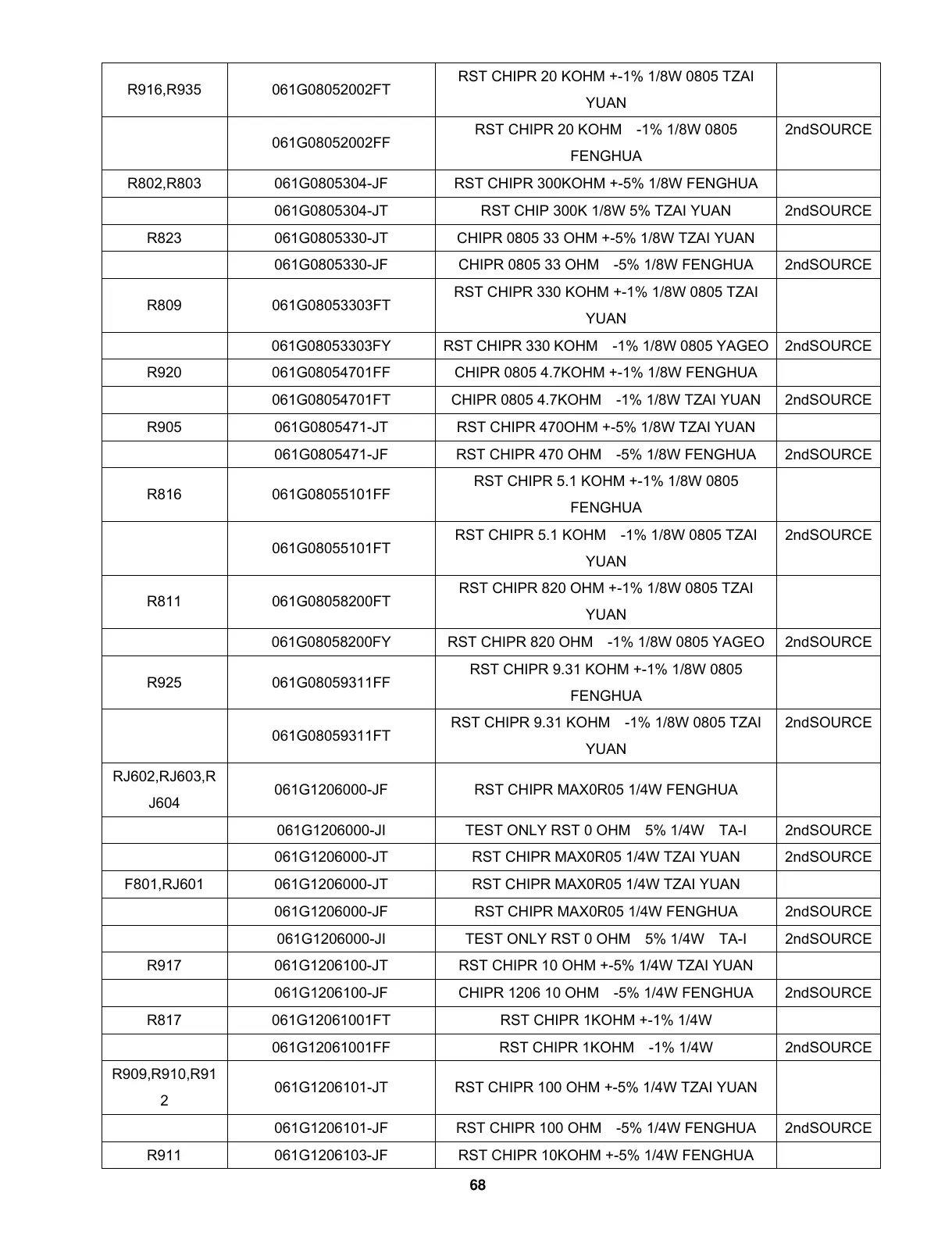

AOC e2260Swda Service Manual

68
R916,R935 061G08052002FT
RST CHIPR 20 KOHM +-1% 1/8W 0805 TZAI
YUAN
061G08052002FF
RST CHIPR 20 KOHM -1% 1/8W 0805
FENGHUA
2ndSOURCE
R802,R803 061G0805304-JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA
061G0805304-JT RST CHIP 300K 1/8W 5% TZAI YUAN 2ndSOURCE
R823 061G0805330-JT CHIPR 0805 33 OHM +-5% 1/8W TZAI YUAN
061G0805330-JF CHIPR 0805 33 OHM -5% 1/8W FENGHUA 2ndSOURCE
R809 061G08053303FT
RST CHIPR 330 KOHM +-1% 1/8W 0805 TZAI
YUAN
061G08053303FY RST CHIPR 330 KOHM -1% 1/8W 0805 YAGEO 2ndSOURCE
R920 061G08054701FF CHIPR 0805 4.7KOHM +-1% 1/8W FENGHUA
061G08054701FT CHIPR 0805 4.7KOHM -1% 1/8W TZAI YUAN 2ndSOURCE
R905 061G0805471-JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
061G0805471-JF RST CHIPR 470 OHM -5% 1/8W FENGHUA 2ndSOURCE
R816 061G08055101FF
RST CHIPR 5.1 KOHM +-1% 1/8W 0805
FENGHUA
061G08055101FT
RST CHIPR 5.1 KOHM -1% 1/8W 0805 TZAI
YUAN
2ndSOURCE
R811 061G08058200FT
RST CHIPR 820 OHM +-1% 1/8W 0805 TZAI
YUAN
061G08058200FY RST CHIPR 820 OHM -1% 1/8W 0805 YAGEO 2ndSOURCE
R925 061G08059311FF
RST CHIPR 9.31 KOHM +-1% 1/8W 0805
FENGHUA
061G08059311FT
RST CHIPR 9.31 KOHM -1% 1/8W 0805 TZAI
YUAN
2ndSOURCE
RJ602,RJ603,R
J604
061G1206000-JF RST CHIPR MAX0R05 1/4W FENGHUA
061G1206000-JI TEST ONLY RST 0 OHM 5% 1/4W TA-I 2ndSOURCE
061G1206000-JT RST CHIPR MAX0R05 1/4W TZAI YUAN 2ndSOURCE
F801,RJ601 061G1206000-JT RST CHIPR MAX0R05 1/4W TZAI YUAN
061G1206000-JF RST CHIPR MAX0R05 1/4W FENGHUA 2ndSOURCE
061G1206000-JI TEST ONLY RST 0 OHM 5% 1/4W TA-I 2ndSOURCE
R917 061G1206100-JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
061G1206100-JF CHIPR 1206 10 OHM -5% 1/4W FENGHUA 2ndSOURCE
R817 061G12061001FT RST CHIPR 1KOHM +-1% 1/4W
061G12061001FF RST CHIPR 1KOHM -1% 1/4W 2ndSOURCE
R909,R910,R91
2
061G1206101-JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
061G1206101-JF RST CHIPR 100 OHM -5% 1/4W FENGHUA 2ndSOURCE
R911 061G1206103-JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
