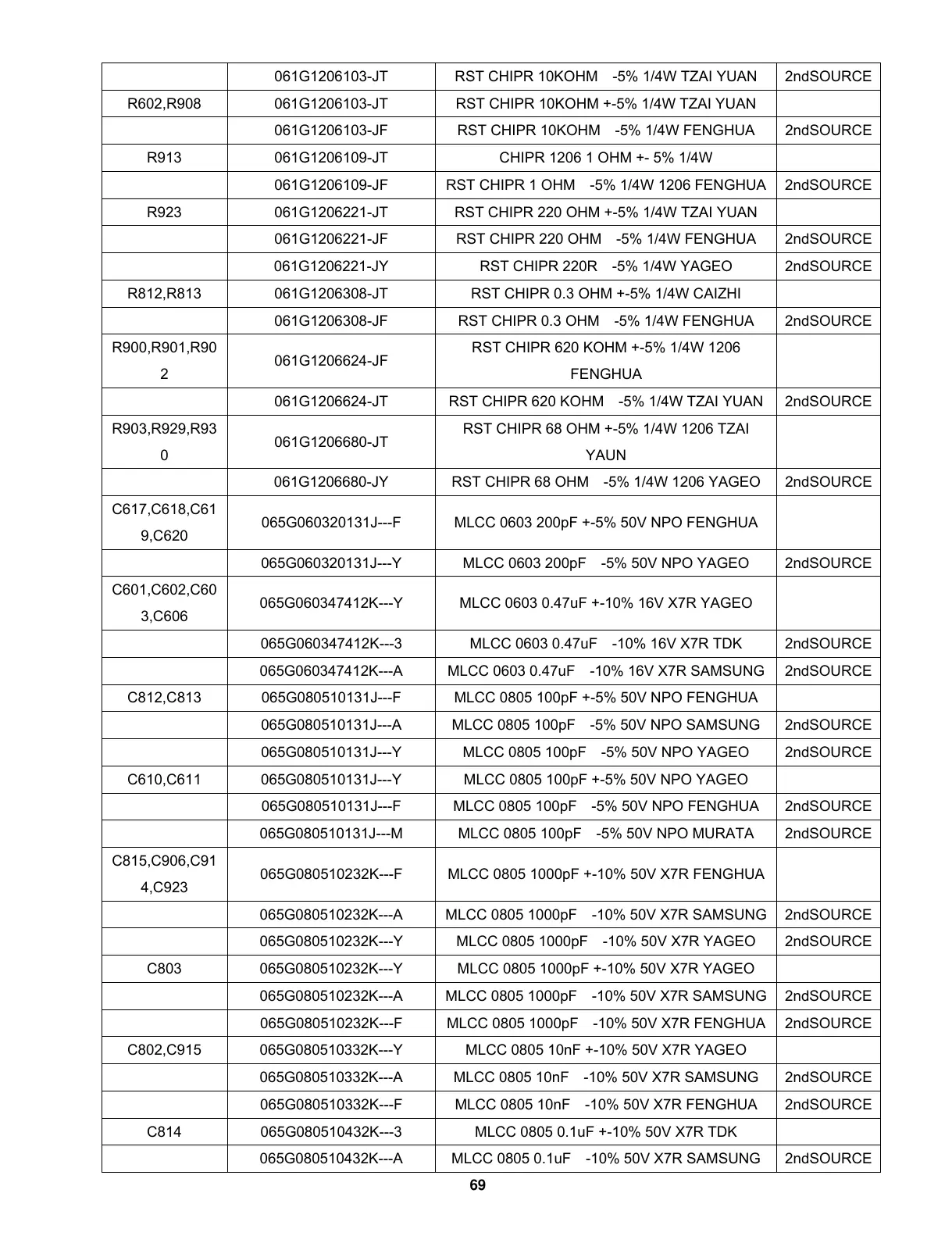

AOC e2260Swda Service Manual

69
061G1206103-JT RST CHIPR 10KOHM -5% 1/4W TZAI YUAN 2ndSOURCE
R602,R908 061G1206103-JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
061G1206103-JF RST CHIPR 10KOHM -5% 1/4W FENGHUA 2ndSOURCE
R913 061G1206109-JT CHIPR 1206 1 OHM +- 5% 1/4W
061G1206109-JF RST CHIPR 1 OHM -5% 1/4W 1206 FENGHUA 2ndSOURCE
R923 061G1206221-JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
061G1206221-JF RST CHIPR 220 OHM -5% 1/4W FENGHUA 2ndSOURCE
061G1206221-JY RST CHIPR 220R -5% 1/4W YAGEO 2ndSOURCE
R812,R813 061G1206308-JT RST CHIPR 0.3 OHM +-5% 1/4W CAIZHI
061G1206308-JF RST CHIPR 0.3 OHM -5% 1/4W FENGHUA 2ndSOURCE
R900,R901,R90
2
061G1206624-JF
RST CHIPR 620 KOHM +-5% 1/4W 1206
FENGHUA
061G1206624-JT RST CHIPR 620 KOHM -5% 1/4W TZAI YUAN 2ndSOURCE
R903,R929,R93
0
061G1206680-JT
RST CHIPR 68 OHM +-5% 1/4W 1206 TZAI
YAUN
061G1206680-JY RST CHIPR 68 OHM -5% 1/4W 1206 YAGEO 2ndSOURCE
C617,C618,C61
9,C620
065G060320131J---F MLCC 0603 200pF +-5% 50V NPO FENGHUA
065G060320131J---Y MLCC 0603 200pF -5% 50V NPO YAGEO 2ndSOURCE
C601,C602,C60
3,C606
065G060347412K---Y MLCC 0603 0.47uF +-10% 16V X7R YAGEO
065G060347412K---3 MLCC 0603 0.47uF -10% 16V X7R TDK 2ndSOURCE
065G060347412K---A MLCC 0603 0.47uF -10% 16V X7R SAMSUNG 2ndSOURCE
C812,C813 065G080510131J---F MLCC 0805 100pF +-5% 50V NPO FENGHUA
065G080510131J---A MLCC 0805 100pF -5% 50V NPO SAMSUNG 2ndSOURCE
065G080510131J---Y MLCC 0805 100pF -5% 50V NPO YAGEO 2ndSOURCE
C610,C611 065G080510131J---Y MLCC 0805 100pF +-5% 50V NPO YAGEO
065G080510131J---F MLCC 0805 100pF -5% 50V NPO FENGHUA 2ndSOURCE
065G080510131J---M MLCC 0805 100pF -5% 50V NPO MURATA 2ndSOURCE
C815,C906,C91
4,C923
065G080510232K---F MLCC 0805 1000pF +-10% 50V X7R FENGHUA
065G080510232K---A MLCC 0805 1000pF -10% 50V X7R SAMSUNG 2ndSOURCE
065G080510232K---Y MLCC 0805 1000pF -10% 50V X7R YAGEO 2ndSOURCE
C803 065G080510232K---Y MLCC 0805 1000pF +-10% 50V X7R YAGEO
065G080510232K---A MLCC 0805 1000pF -10% 50V X7R SAMSUNG 2ndSOURCE
065G080510232K---F MLCC 0805 1000pF -10% 50V X7R FENGHUA 2ndSOURCE
C802,C915 065G080510332K---Y MLCC 0805 10nF +-10% 50V X7R YAGEO
065G080510332K---A MLCC 0805 10nF -10% 50V X7R SAMSUNG 2ndSOURCE
065G080510332K---F MLCC 0805 10nF -10% 50V X7R FENGHUA 2ndSOURCE
C814 065G080510432K---3 MLCC 0805 0.1uF +-10% 50V X7R TDK
065G080510432K---A MLCC 0805 0.1uF -10% 50V X7R SAMSUNG 2ndSOURCE
