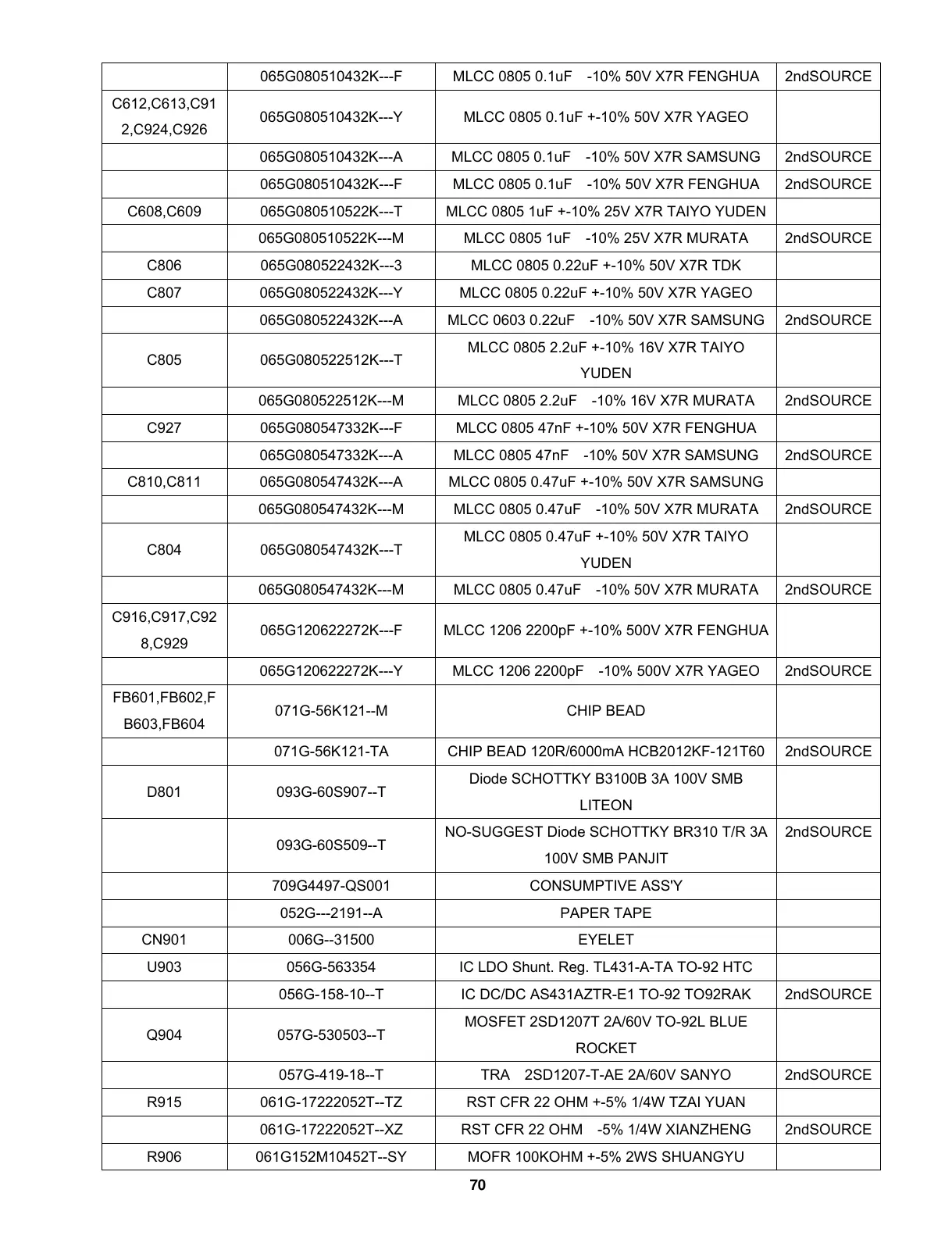

AOC e2260Swda Service Manual

70
065G080510432K---F MLCC 0805 0.1uF -10% 50V X7R FENGHUA 2ndSOURCE
C612,C613,C91
2,C924,C926
065G080510432K---Y MLCC 0805 0.1uF +-10% 50V X7R YAGEO
065G080510432K---A MLCC 0805 0.1uF -10% 50V X7R SAMSUNG 2ndSOURCE
065G080510432K---F MLCC 0805 0.1uF -10% 50V X7R FENGHUA 2ndSOURCE
C608,C609 065G080510522K---T MLCC 0805 1uF +-10% 25V X7R TAIYO YUDEN
065G080510522K---M MLCC 0805 1uF -10% 25V X7R MURATA 2ndSOURCE
C806 065G080522432K---3 MLCC 0805 0.22uF +-10% 50V X7R TDK
C807 065G080522432K---Y MLCC 0805 0.22uF +-10% 50V X7R YAGEO
065G080522432K---A MLCC 0603 0.22uF -10% 50V X7R SAMSUNG 2ndSOURCE
C805 065G080522512K---T
MLCC 0805 2.2uF +-10% 16V X7R TAIYO
YUDEN
065G080522512K---M MLCC 0805 2.2uF -10% 16V X7R MURATA 2ndSOURCE
C927 065G080547332K---F MLCC 0805 47nF +-10% 50V X7R FENGHUA
065G080547332K---A MLCC 0805 47nF -10% 50V X7R SAMSUNG 2ndSOURCE
C810,C811 065G080547432K---A MLCC 0805 0.47uF +-10% 50V X7R SAMSUNG
065G080547432K---M MLCC 0805 0.47uF -10% 50V X7R MURATA 2ndSOURCE
C804 065G080547432K---T
MLCC 0805 0.47uF +-10% 50V X7R TAIYO
YUDEN
065G080547432K---M MLCC 0805 0.47uF -10% 50V X7R MURATA 2ndSOURCE
C916,C917,C92
8,C929
065G120622272K---F MLCC 1206 2200pF +-10% 500V X7R FENGHUA
065G120622272K---Y MLCC 1206 2200pF -10% 500V X7R YAGEO 2ndSOURCE
FB601,FB602,F
B603,FB604
071G-56K121--M CHIP BEAD
071G-56K121-TA CHIP BEAD 120R/6000mA HCB2012KF-121T60 2ndSOURCE
D801 093G-60S907--T
Diode SCHOTTKY B3100B 3A 100V SMB
LITEON
093G-60S509--T
NO-SUGGEST Diode SCHOTTKY BR310 T/R 3A
100V SMB PANJIT
2ndSOURCE
709G4497-QS001 CONSUMPTIVE ASS'Y
052G---2191--A PAPER TAPE
CN901 006G--31500 EYELET
U903 056G-563354 IC LDO Shunt. Reg. TL431-A-TA TO-92 HTC
056G-158-10--T IC DC/DC AS431AZTR-E1 TO-92 TO92RAK 2ndSOURCE
Q904 057G-530503--T
MOSFET 2SD1207T 2A/60V TO-92L BLUE
ROCKET
057G-419-18--T TRA 2SD1207-T-AE 2A/60V SANYO 2ndSOURCE
R915 061G-17222052T--TZ RST CFR 22 OHM +-5% 1/4W TZAI YUAN
061G-17222052T--XZ RST CFR 22 OHM -5% 1/4W XIANZHENG 2ndSOURCE
R906 061G152M10452T--SY MOFR 100KOHM +-5% 2WS SHUANGYU
