4.3 Panel Specification
4.3.1 General Features
LM230WF5-TLD3 is a Color Active Matrix Liquid Crystal Display Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 23 inch diagonally measured active
display area with FHD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage
Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LM230WF5-TLD3 characteristics provide an excellent flat panel display for office automation
products such as monitors.

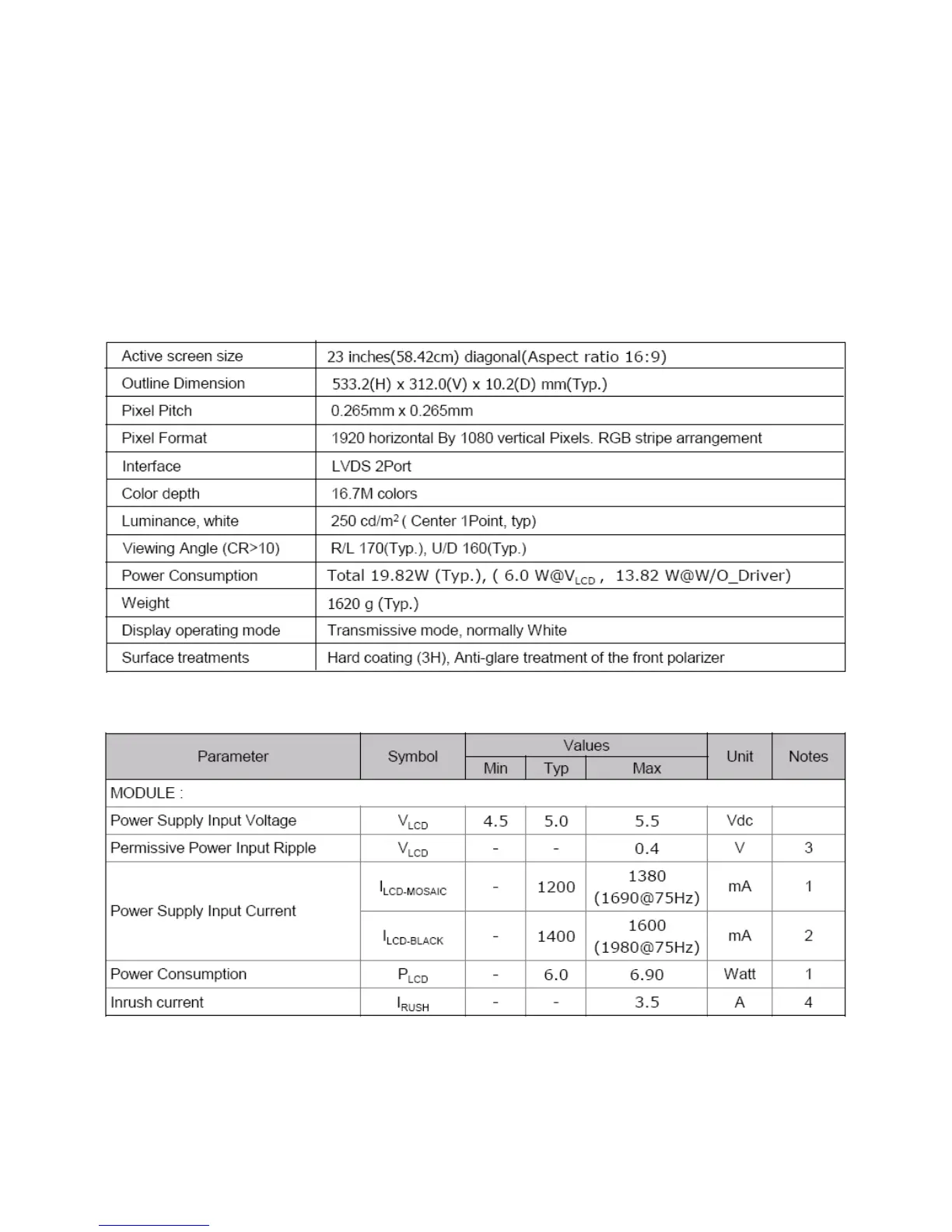

4.3.2 GENERAL SPECIFICATIONS
4.3.3 Electrical Characteristics
Electrical characteristics
Note :
1. The specified current and power consumption are under the V
LCD=5.0V, 25 ± 2°C, fV=60Hz condition
whereas mosaic pattern(8 x 6) is displayed and f
V is the frame frequency.
2. The current is specified at the maximum current pattern.
3. Permissive power ripple should be measured under VCC=5.0V, 25°C, f
V (frame frequency)=75Hz
condition and At that time, we recommend the bandwidth configuration of oscilloscope is to be under 20MHz.
4. The duration of rush current is about 2ms and rising time of power Input is 500us ± 20%.
