9. FOS Testing

9.1 Brightness Measurement

Max. Brightness>250 cd/㎡(typ).

Test conditions:

- Center of display

- Video input (RGB) = 0,700V for Analog Input

- Brightness control is set to max

- Contrast control is set to max.

Min. brightness measurement:

< 45% of Max luminance (max luminance = max contrast + max brightness)

Test conditions: - Center of display

- Video input (RGB) = 0.700V for Analog Input

- Brightness control is set to min.

- Contrast control is set to min.

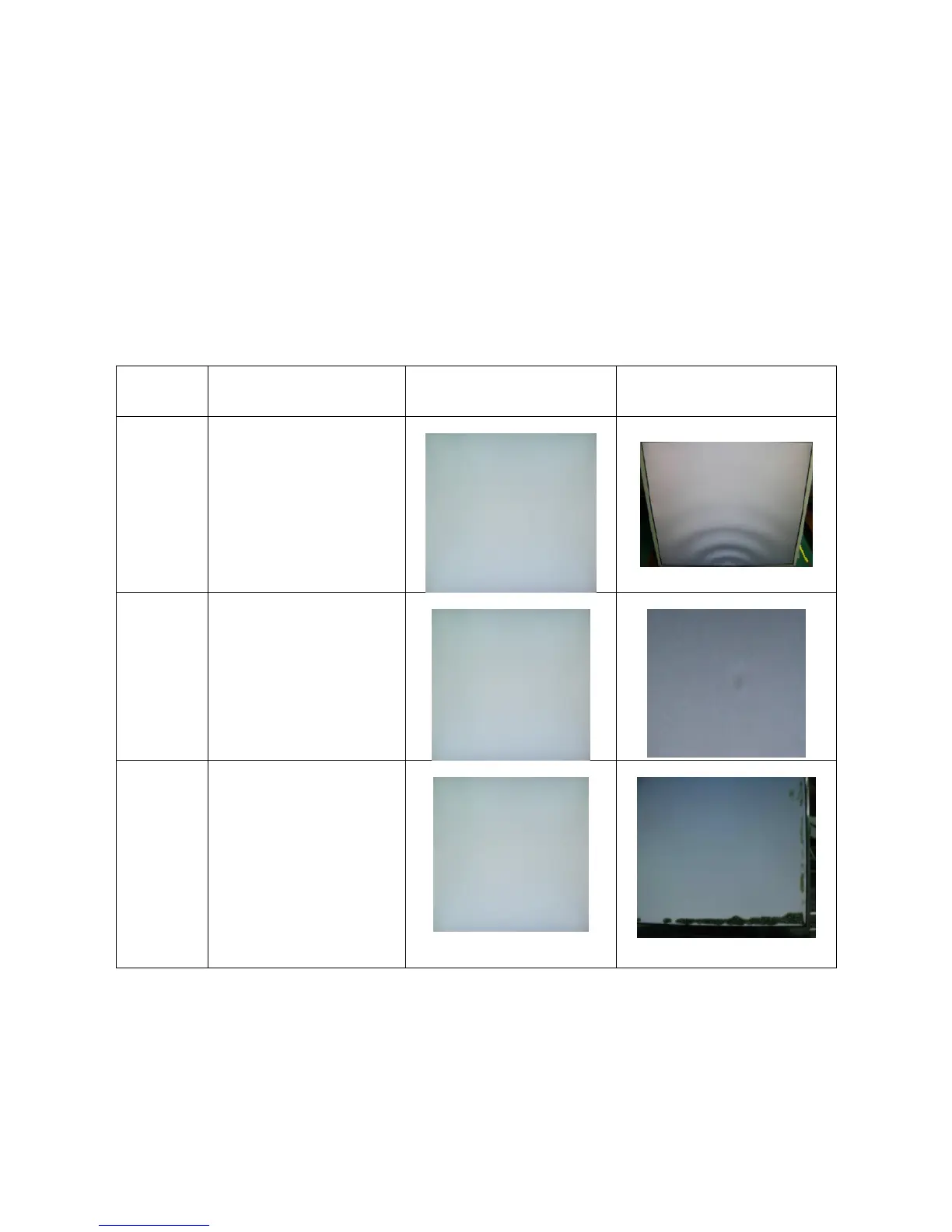

9.2 Patterns Testing

Item

Condition

(Resolution, Commended

test paten)

Normal picture Abnormal Picture

Waterwave

noise

1. 1920 x 1080 (60 Hz)

2. White pattern

Mura

1. 1920 x 1080 (60 Hz)

2. Black pattern or White

pattern.

LCD

bubble

1. 1920 x 1080 (60 Hz)

2. Black pattern or White

pattern
