10. Firmware and DDC Instruction

10.1 Firmware Instruction(Novatek ISP for exemple NT68676)

Step 1：OPERATION CONDITIONS:

1) An i486 (or above) personal computer or compatible.

2) Microsoft operation system Windows 95/98/2000/XP.

3) ISPTool programs programs.

4) Printer cable and VGA cable.

5) ISP board (PN: 715GT034-B，715GT048-1 or715GT035-A).

6) ISP Firmware/Software

Step 2：Connection：

1) LPT cable connect PC and ISP board ;

2) VGA cable connect monitor and ISP board ;

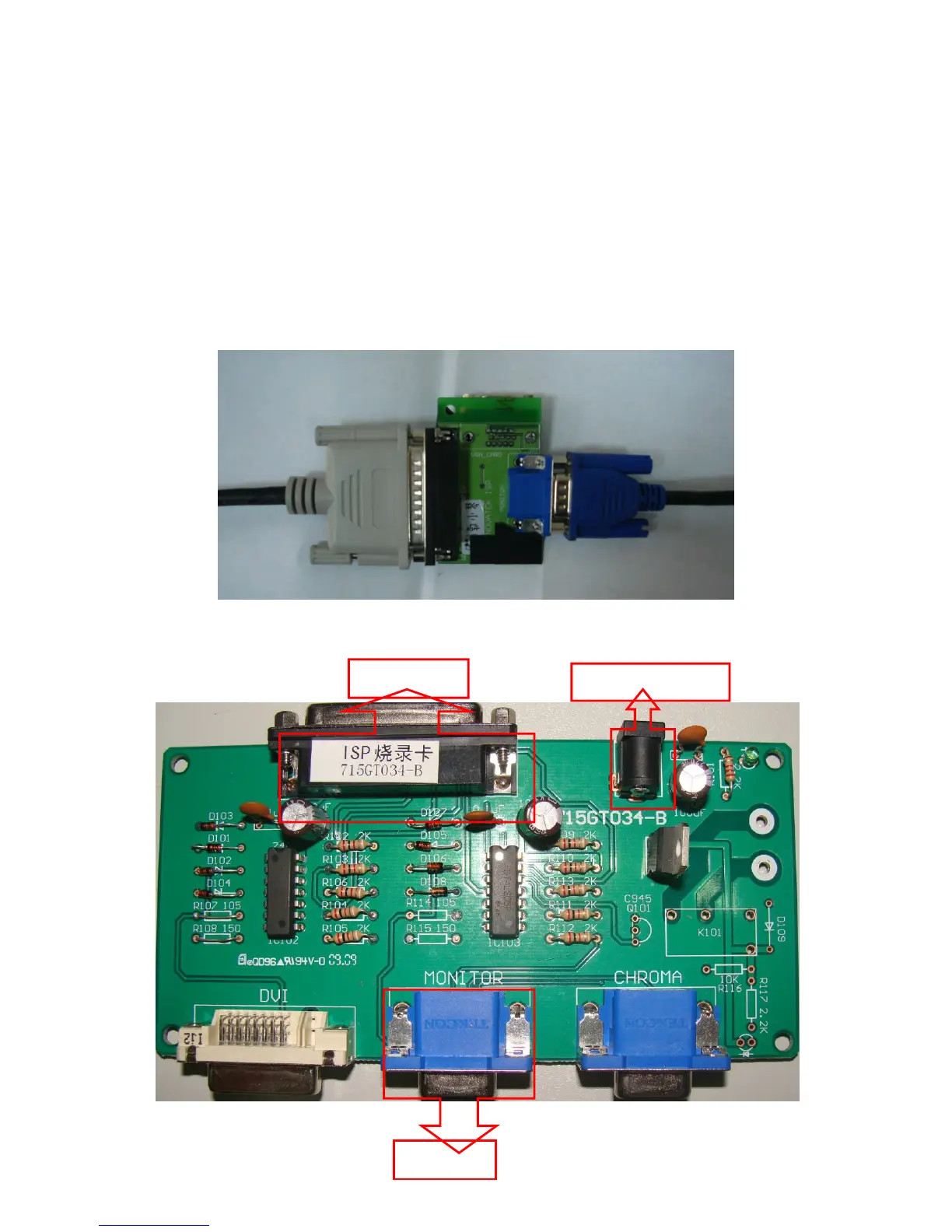

3) Reference picture as below

NO1. TPV Part No. : 715GT048-1 or 715GT035-A（715GT048-1 or 715GT035-A）

NO2. TPV Part No : 715GT034-B（NEW LCD EDID TOOL ：715GT034-B）

To PC LPT Port

Connect 12V power

To Monitor
