AOC e2350Sd Servise Manual
4
of 1
of 1 rating
90 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
6
5

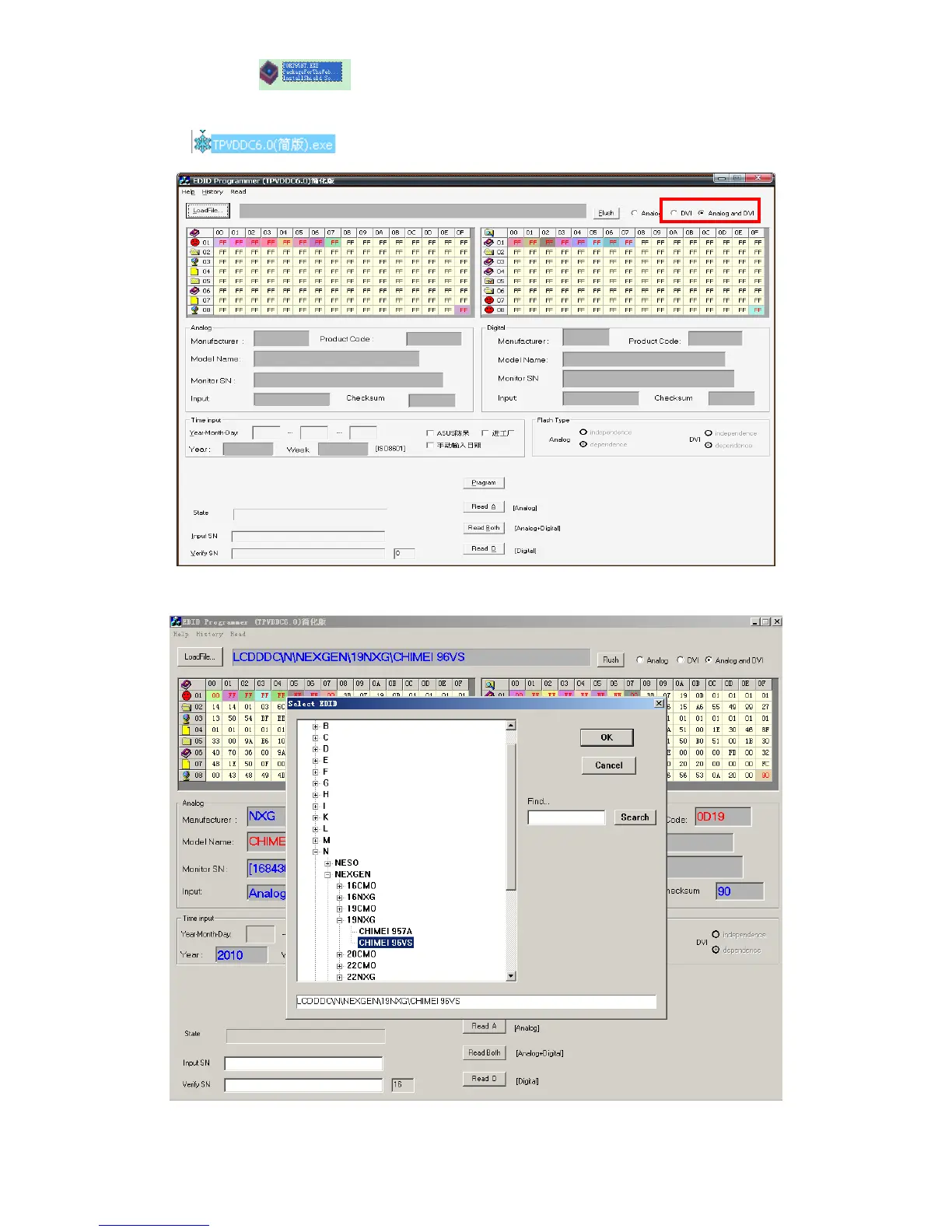

1.Double-click the icon “
” to install Port95nt print drive
r
, and then restart the computer
.
Double-click
,
select “Analog and DVI” show as follow picture
2. Click “Load file” and select as follo
w picture.then click “LCDDDC”
EX: DDCModelName:CHIMEI96VS
3. Click “ok” show as follow picture.
64
66
Table of Contents
Description Table of Contents
1
Table of Contents
1
Revision List
2
Important Safety Notice
3
1 Monitor Specification
4
2 LCD Monitor Description
5
3 Operation Instruction
7
General Instructions
7
Control Buttons and Connections
7
OSD Setting
9
Picture Boost
16
Led Indicators
23
4 Input/Output Specification
25
Input Signal Connector
25
Preset Display Modes
26
Panel Specification
27
5 Block Diagram
30
Main Board
30
Power Board
31
6 Schematic
32
Power Board
37
Main Board
39
7 PCB Layout
39
Power Board
41
Key Board
43
8 Maintainability
44
Equipments and Tools Requirement
44
Trouble Shooting
45
9 FOS Testing
49
10 Firmware and DDC Instruction
53
11 White-Balance,Luminance Adjustment
61
DDC Instruction
64
12 Mechanical Instructions
73
13 Monitor Exploded View
81
14 BOM List
82
