AOC E2425SWD User Manual

12
Connecting the Monitor

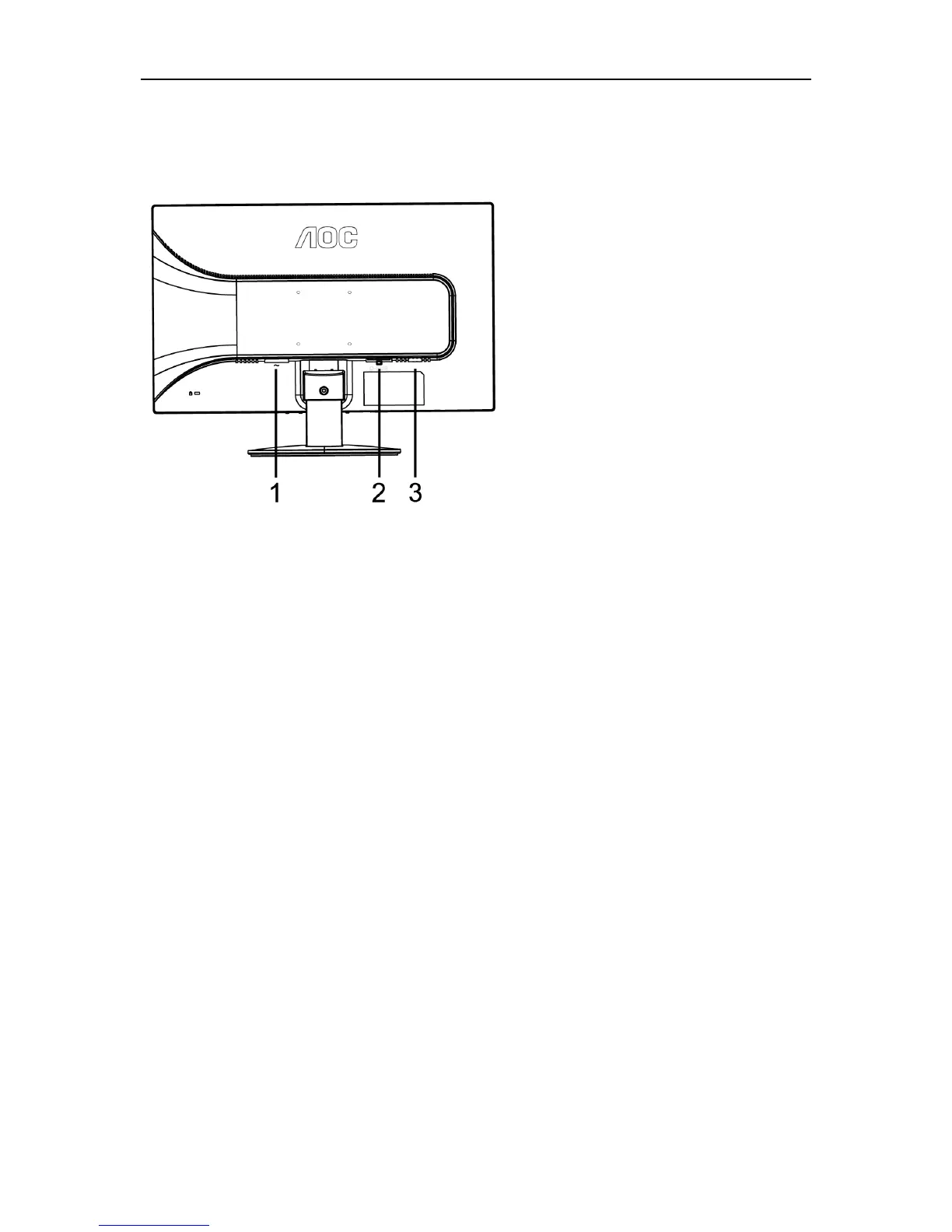

Cable Connections In Back of Monitor and Computer:
1. Power
2. DVI
3. D-Sub
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer's
D-Sub port.
3 Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer‟s DVI
port.
4 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

AOC E2425SWD Specifications

General

3D	No
Panel type	TN
Color depth	8 bit
Pixel pitch	0.272 x 0.272 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	23.6 \
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	293.2 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Viewable size, horizontal	521.3 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 832 x 624, 1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
HDMI ports quantity	0
Tilt angle range	-3 - 11 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Certification	cTUVus, CE, FCC
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	Business
Package type	Box
Package depth	121 mm
Package width	626 mm
Package height	426 mm
Package weight	4950 g
VGA cable length	1.8 m
Cables included	AC, VGA
Sustainability certificates	RoHS, ENERGY STAR
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth (with stand)	190 mm
Height (with stand)	397 mm
Weight (with stand)	3800 g
Depth (without stand)	- mm
Width (without stand)	566 mm
Weight (without stand)	- g
