AOC E2425SWD

49

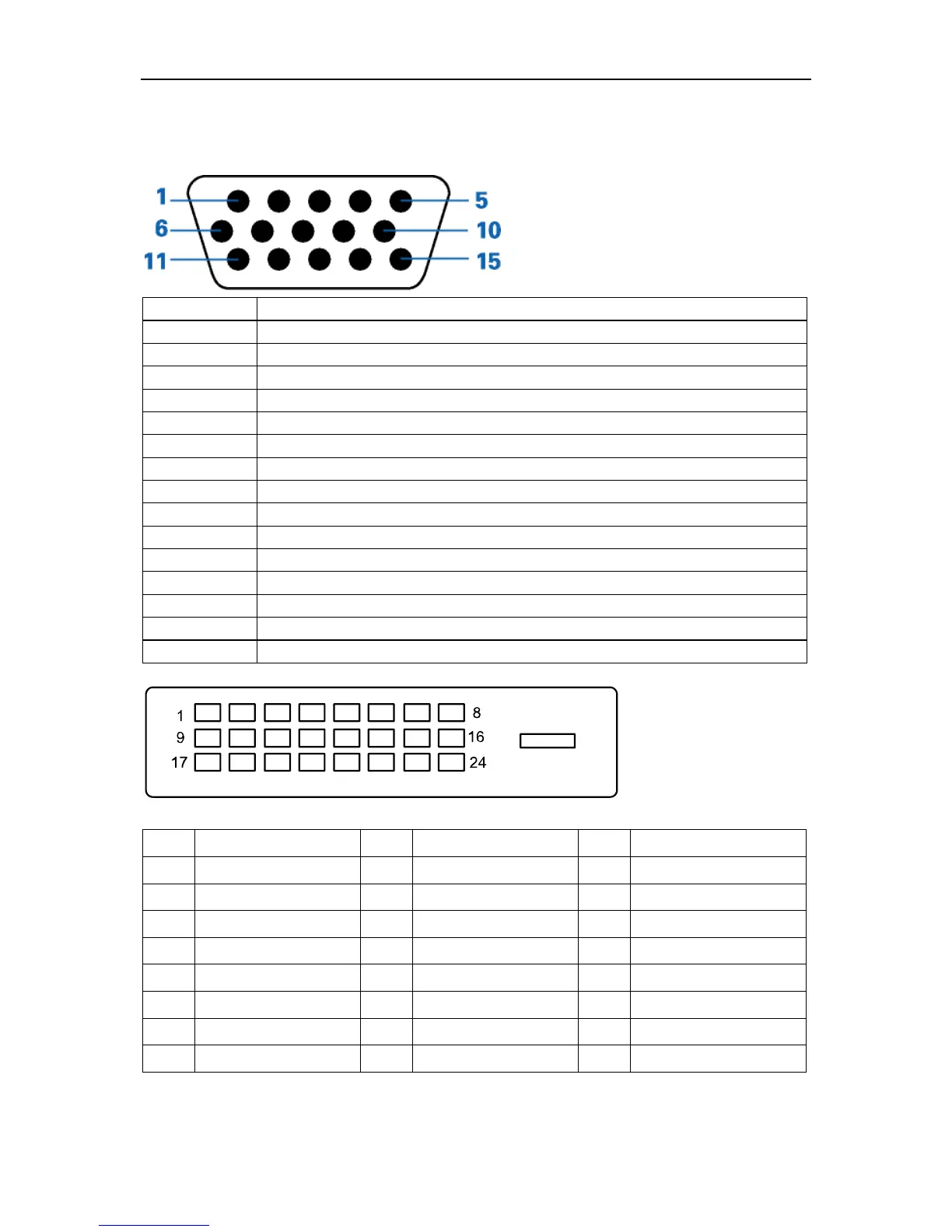

Pin Assignments
Pin Number
15-Pin Side of the Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
N.C.
5
Detect Cable
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
Ground
11
N.C.
12
DDC-Serial data
13
H-sync
14
V-sync
15
DDC-Serial clock
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1.
TMDS Data 2-
9.
TMDS Data 1-
17.
TMDS Data 0-
2.
TMDS Data 2+
10.
TMDS Data 1+
18.
TMDS Data 0+
3.
TMDS Data 2/4 Shield
11.
TMDS Data 1/3 Shield
19.
TMDS Data 0/5 Shield
4.
TMDS Data 4- / N.C.
12.
TMDS Data 3- / N.C.
20.
TMDS Data 5- / N.C.
5.
TMDS Data 4+ / N.C.
13.
TMDS Data 3+ / N.C.
21.
TMDS Data 5+ / N.C.
6.
DDC Clock
14.
+5V Power
22.
TMDS Clock Shield
7.
DDC Data
15.
DVI Cable Detect
23.
TMDS Clock +
8.
N.C.
16.
Hot Plug Detect
24.
TMDS Clock -
