Note: Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD
screen

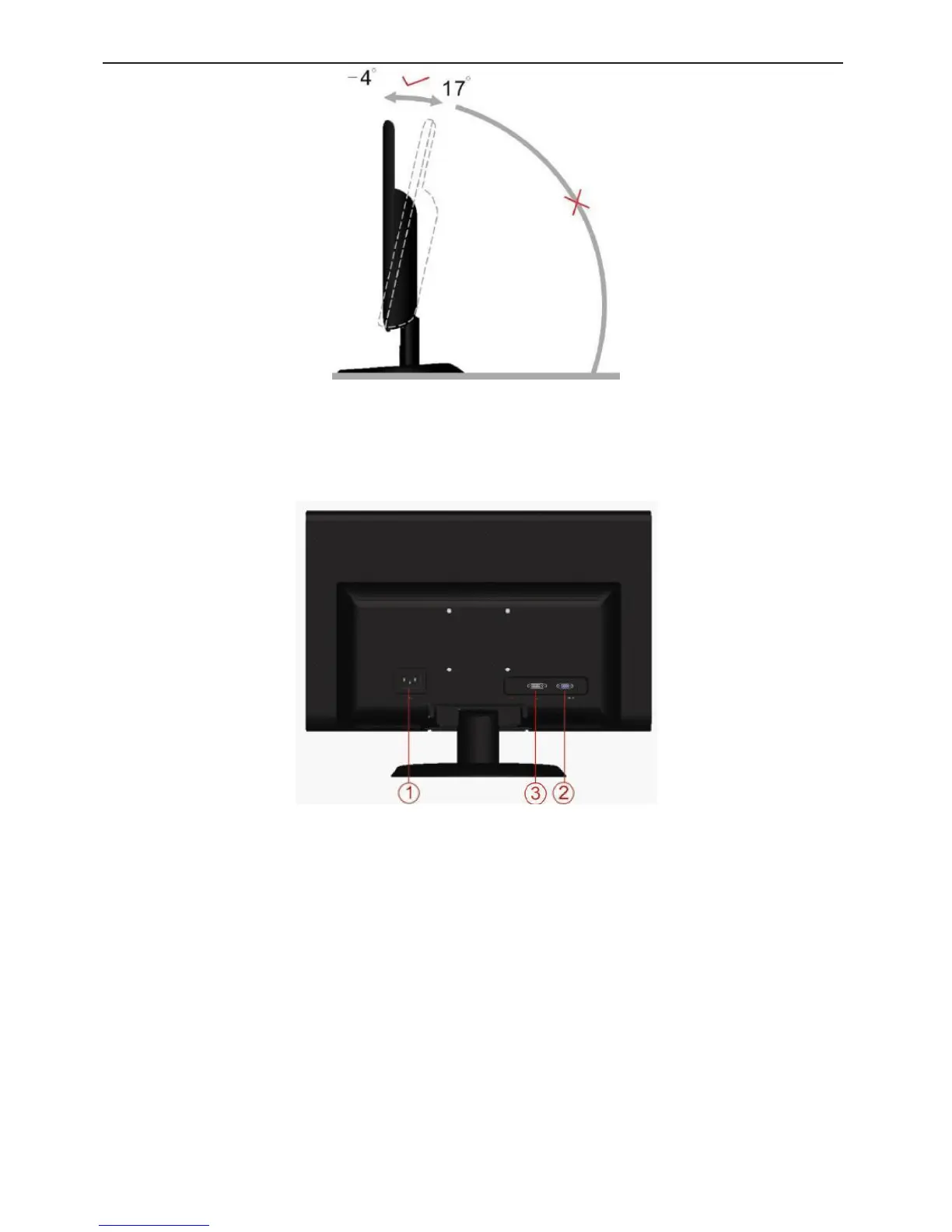

2.4 Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
1. Power
2. Analog (DB-15 VGA cable)
3. DVI
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer‟s D-Sub port.
3. Connect one end of the DVI cable to the back of the monitor and connect the other end to the
computer‟s DVI port.
4. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

AOC e2450Swd Specifications

General

3D	No
Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Display diagonal	23.6 \
Viewable size diagonal	598 mm
Viewable size, vertical	293.22 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	521.28 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Placement supported	Horizontal
Screen saving functions	Yes
Number of products included	1 pc(s)
DVI-I ports quantity	-
USB Type-A downstream ports quantity	0
Certification	CE, cCSAus, FCC, CCC, RoHs, EPA 5.0, Windows Vista/Win7, china RoHs
Product color	Black
LED indicators	Power
Tilt angle range	-4 - 17 °
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Package depth	113 mm
Package width	625 mm
Package height	437 mm
Package weight	7300 g

Weight and Dimensions

Depth (with stand)	205.1 mm
Width (with stand)	569.7 mm
Height (with stand)	413.9 mm
Weight (with stand)	4450 g
Width (without stand)	- mm
Weight (without stand)	- g
