AOC E2460SD User Manual

20

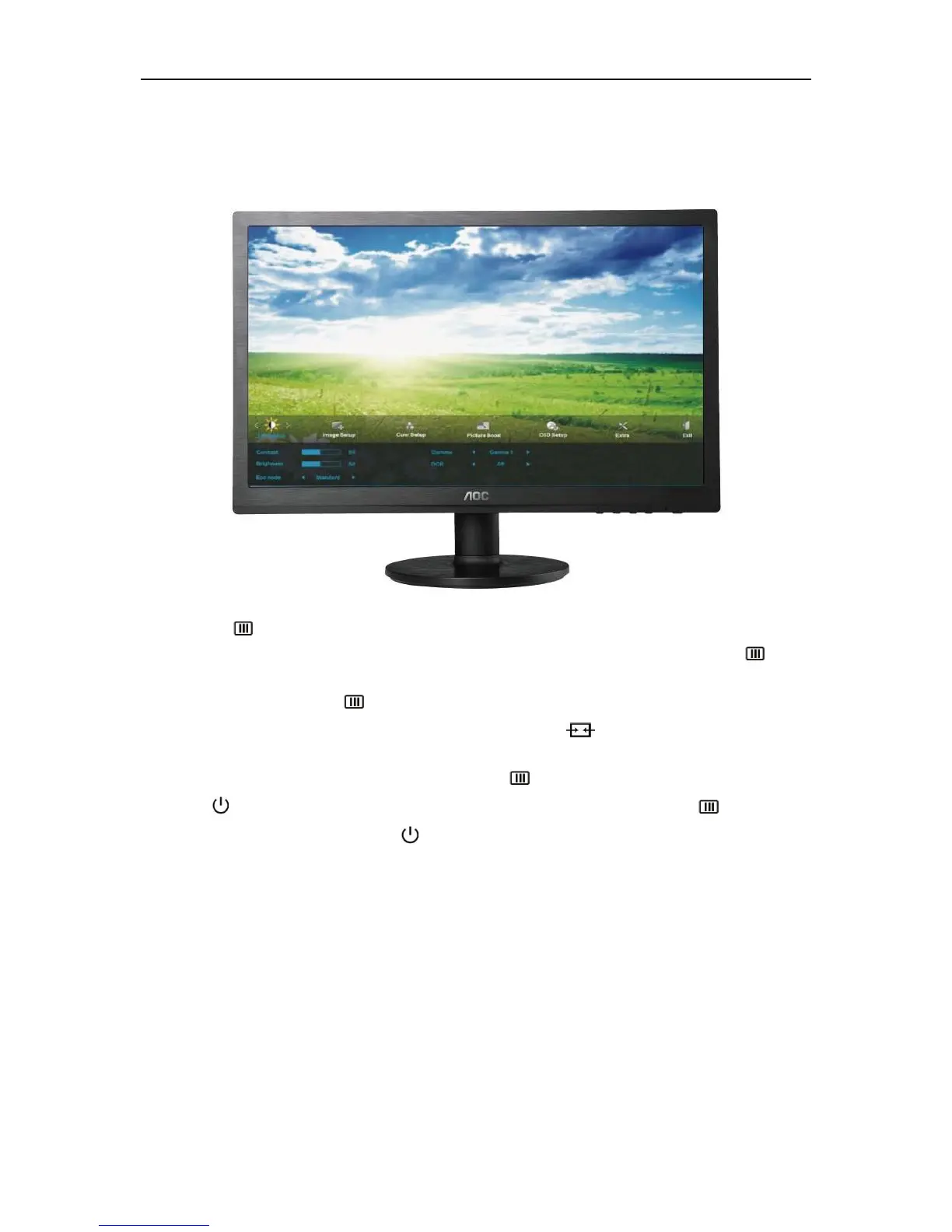

OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press < or > to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate it . press < or > to navigate through the sub-menu functions. Once the desired
function is highlighted, press MENU-button to activate it.
3) Press < or > to change the settings of the selected function. Press AUTO to exit. If you want to adjust
any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then
press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button
while the monitor is off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off
accordingly.

AOC E2460SD Specifications

General

3D	No
Panel type	TN
Pixel pitch	276 x 276 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Pixel frequency	165 MHz
Display diagonal	24 \
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 76 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI ports quantity	0
Tilt angle range	-5 - 20 °
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.13 W
Power consumption (standby)	0.29 W
Power consumption (typical)	18.54 W
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	-
Package type	Box
Package depth	131 mm
Package width	621 mm
Package height	476 mm
Package weight	6100 g
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	219.3 mm
Height (with stand)	403.05 mm
Weight (with stand)	4640 g
Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	4440 g
