AOC E2460SD User Manual

43

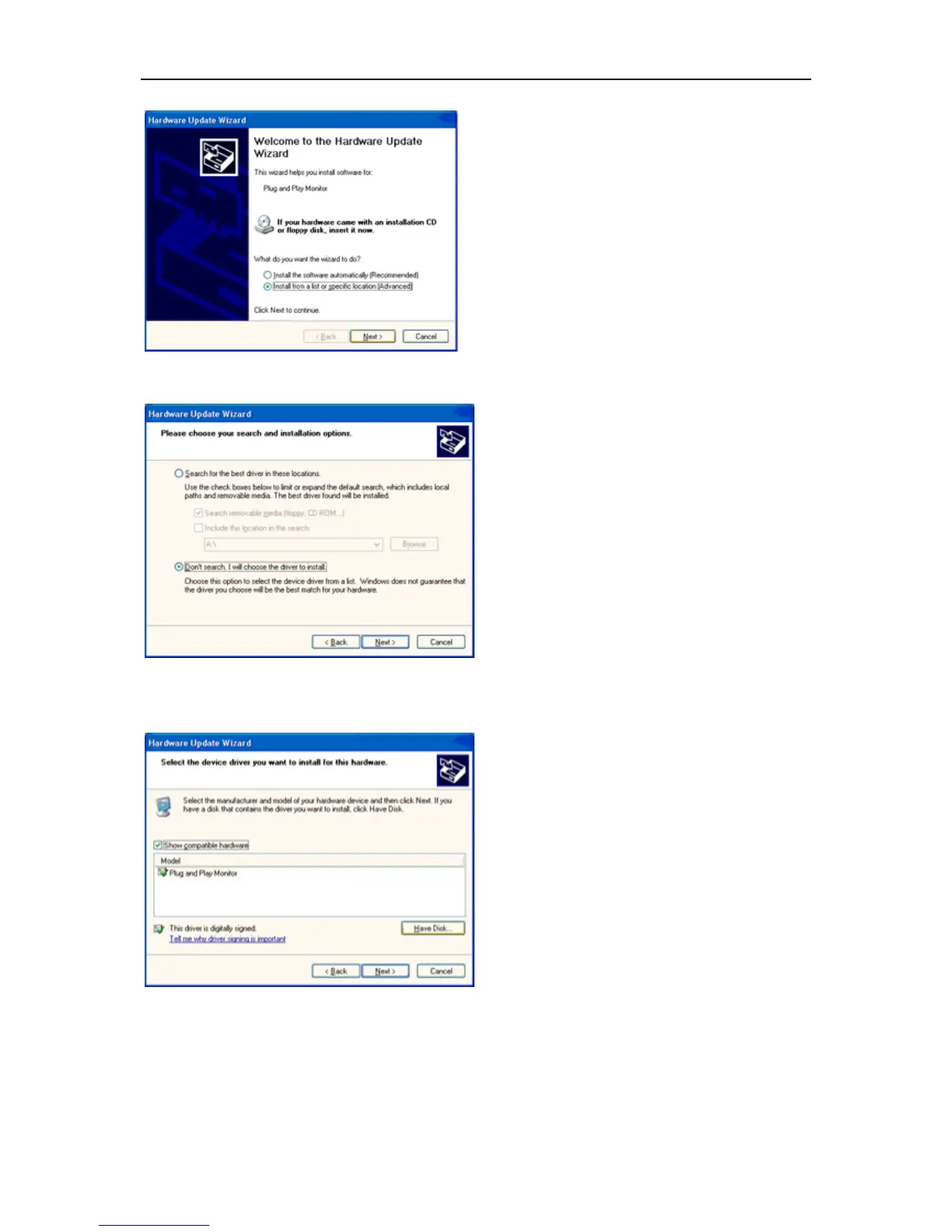

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:
(CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,
please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

AOC E2460SD Specifications

General

3D	No
Panel type	TN
Pixel pitch	276 x 276 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Pixel frequency	165 MHz
Display diagonal	24 \
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 76 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI ports quantity	0
Tilt angle range	-5 - 20 °
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.13 W
Power consumption (standby)	0.29 W
Power consumption (typical)	18.54 W
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	-
Package type	Box
Package depth	131 mm
Package width	621 mm
Package height	476 mm
Package weight	6100 g
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	219.3 mm
Height (with stand)	403.05 mm
Weight (with stand)	4640 g
Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	4440 g
