AOC E2475PWJ User Manual

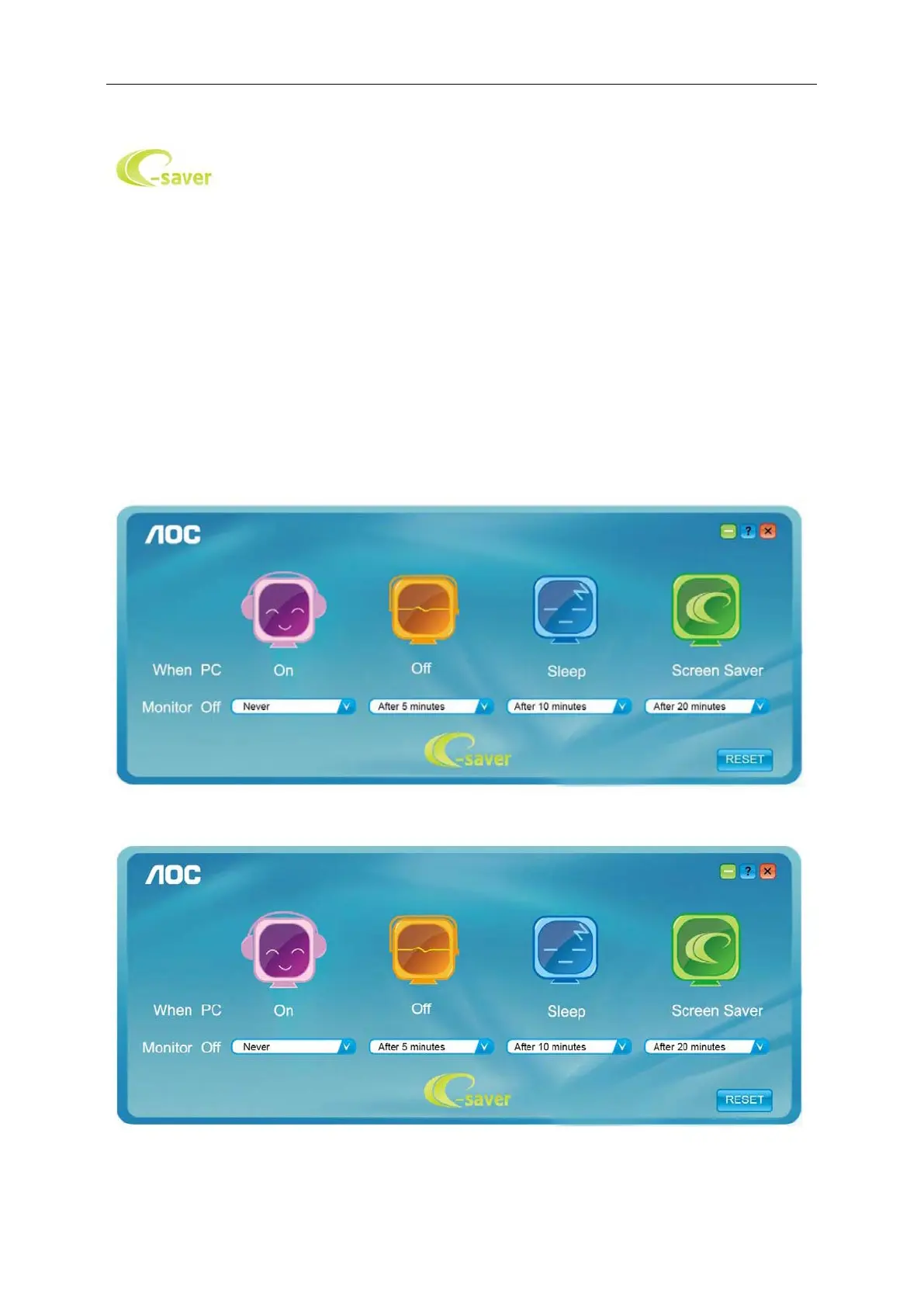

e-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Under each of the four PC statuses, you may choose the desired time (in minutes) from the pull-down menu for
your monitor to automatically shutdown. The example below illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.
42

AOC E2475PWJ Specifications

General

3D	-
Panel type	TN
Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Screen shape	Flat
Response time	2 ms
Backlight type	W-LED
Display surface	Matt
Pixel frequency	165 MHz
Display diagonal	24 \
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	293.32 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (peak)	- cd/m²
Viewable size, horizontal	521.28 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.25 W
Power consumption (standby)	0.3 W
Power consumption (typical)	18.02 W
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
RMS rated power	4 W
Number of speakers	2
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Business
Compliance industry standards	Rohs
Package type	Box
Package depth	185 mm
Package width	663 mm
Package height	418 mm
Package weight	6900 g
VGA cable length	1.8 m
Cables included	AC, Audio (3.5mm), DVI, VGA
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	212.9 mm
Width (with stand)	558.8 mm
Height (with stand)	505 mm
Weight (with stand)	5200 g
Depth (without stand)	- mm
Weight (without stand)	- g
