24" LCD Color Monitor AOC E2495SD
14

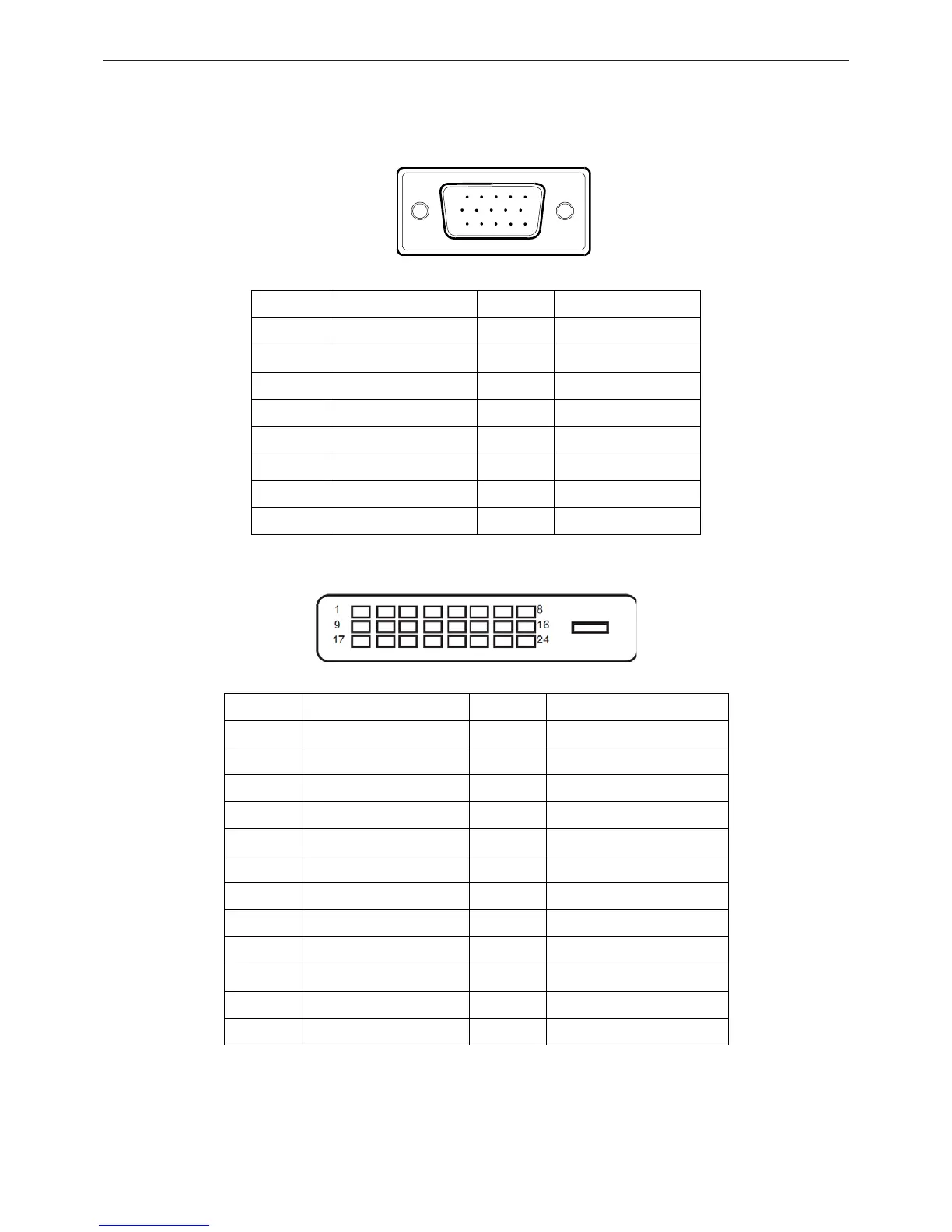

4. Input/ Output Specification
4.1 Input Signal Connector
D-Sub 15pin Connector
15
6
10
11 15
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1 Video-Red 9 +5V
2 Video-Green 10 GND
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-Sync
6 GND_R 14 V-Sync
7 GND_G 15 DDC-Serial clock
8 GND_B
DVI 24pin Connector
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1
TMDS data 2－
13
TMDS data 3＋
2
TMDS data 2＋
14
＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18
TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10
TMDS data 1＋
22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
