24" LCD Color Monitor AOC E2495SD
6
3. Operation Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
The power cord should be connected.
Connect the Signal cable from the monitor to the video card.
Press the power button to turn on the monitor position. The power indicator will light up.

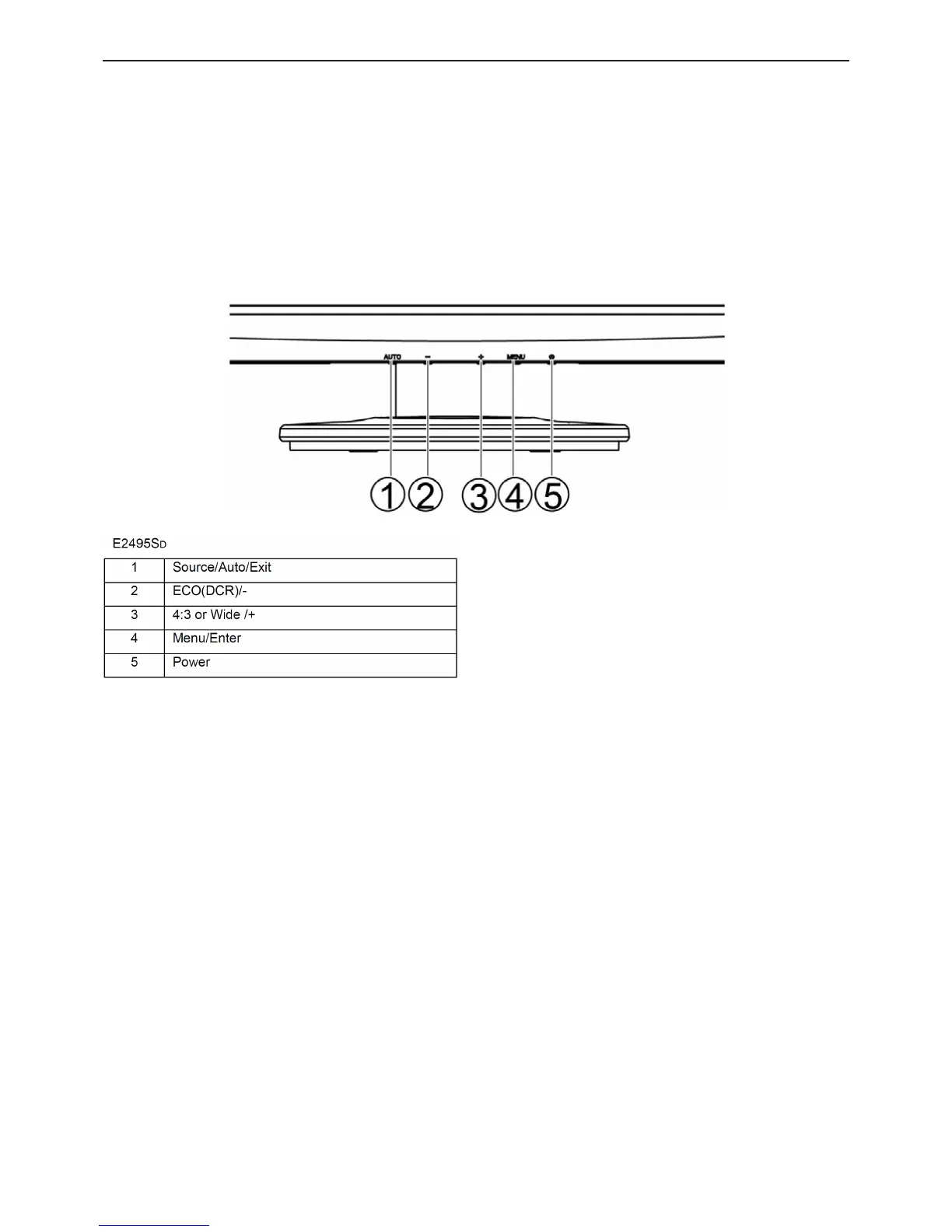

3.2 Control Buttons
EXTERNAL CONTROLS
Power
Press the Power button to turn on/off the monitor.
Eco (DCR/I-Care)/-
Press the Eco key continuously to select the Eco mode of brightness and DCR/I-Care on when there is no OSD.
(Eco mode hot key may not be available in all models).
Volume / +
When there is no OSD, Press Volume button to active volume adjustment bar, Press -or + to adjust volume (Only
for the models with speakers).
4:3 or Wide/+
When there is no OSD, press + continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or
input signal resolution is wide format, the hot key is disable to adjust. )
Auto / Exit
When there is no OSD, press Auto/ Source button continuously about 3 second to do auto configure.
Source hot key
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.
