24" LCD Color Monitor AOC E2495SD
17

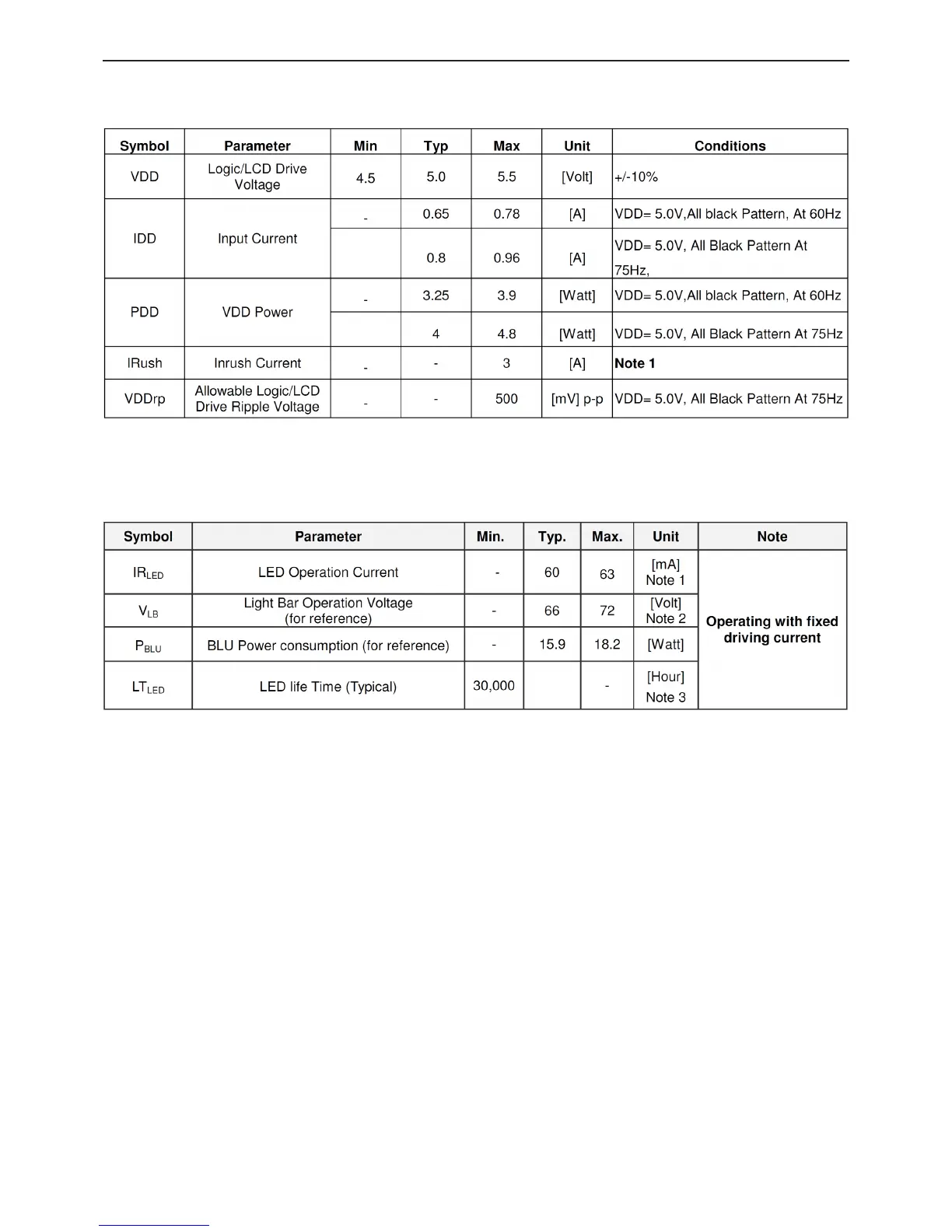

4.3.4 ELECTRICAL CHARACTERISTICS
Ta = 25 ± 2 ºC
4.3.5 BACKLIGHT UNIT
Ta = 25 ± 2 ºC
Note 1: The specified current is input LED chip 100% duty current.
Note 2: The value showed in the table is one light bar’s operation voltage.
Note 3: Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on
the condition of IRLED = 60mA and 25±2℃ (Room temperature).
Note 4: Each LED light bar consists of 80 pcs LED package (4 strings x 20 pcs / string).
