12
Connecting the Monitor

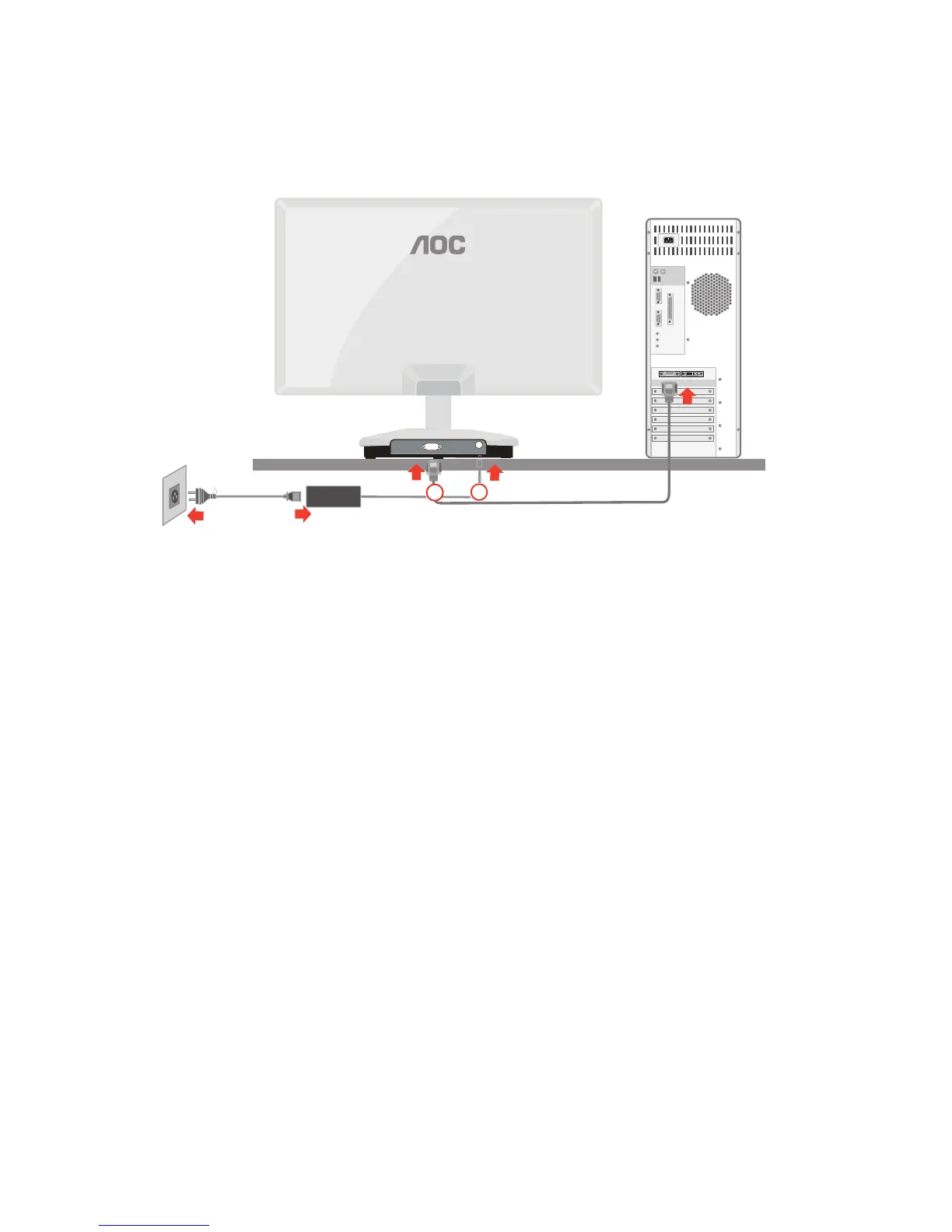

Cable Connections On Back of Monitor and Computer:
1.
Power
2.
D-SUB
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3
Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
D-SUB
DC-IN
1
2
To Next Page
