4.3 Panel Specification
4.3.1 General Features
This specification applies to the 18.95 inch Color a-Si TFT-LCD Module TPM190A1-MWW4. The display supports
the1440(H) x 900(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The light source of this TFT-LCD
module is W-LED. All input signals are 2-channel LVDS interface and this module doesn’t contain a driver for
backlight.

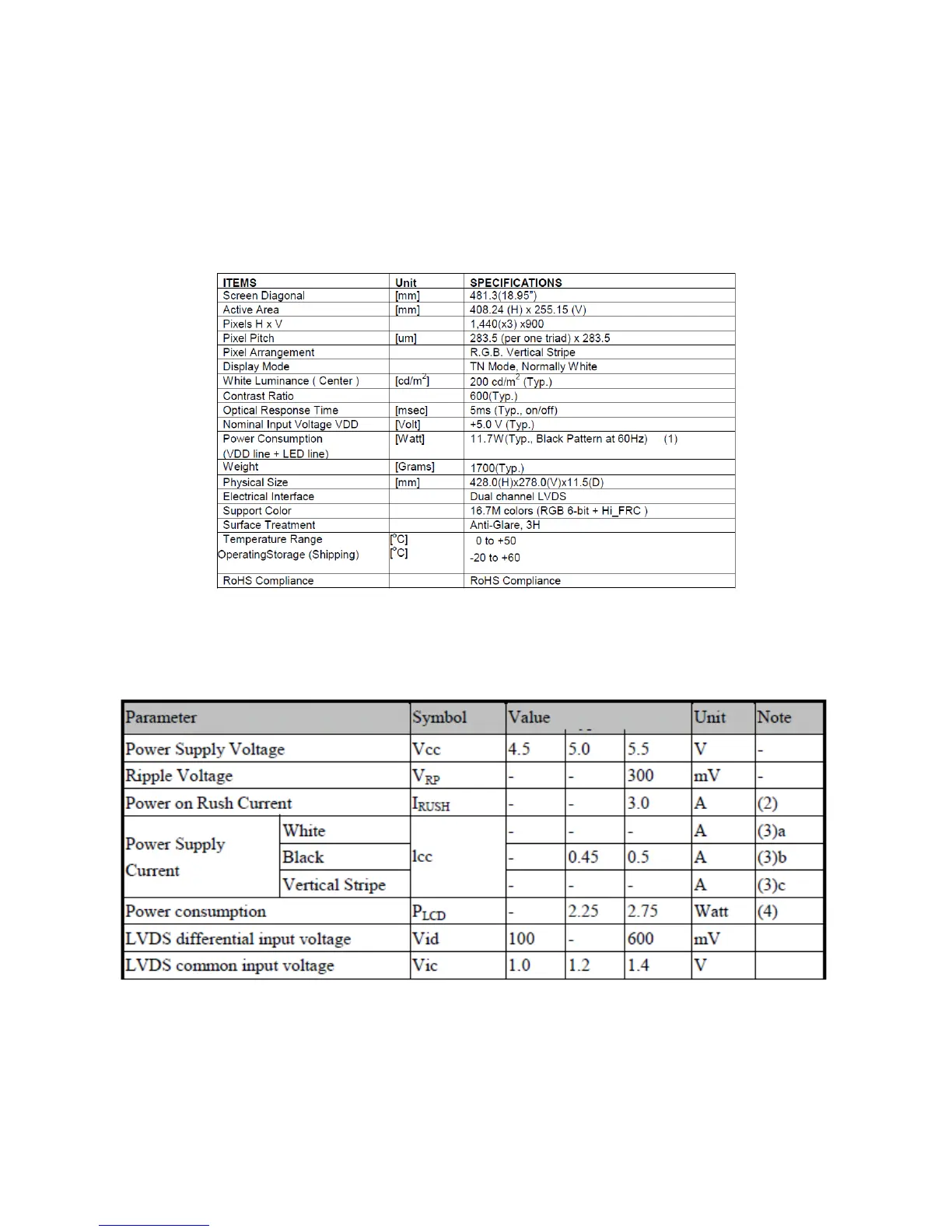

4.3.2 Display Characteristics
4.3.3 Electrical Characteristics
TFT LCD MODULE
Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60 Hz
LED Characteristics
