4. Input/Output Specification

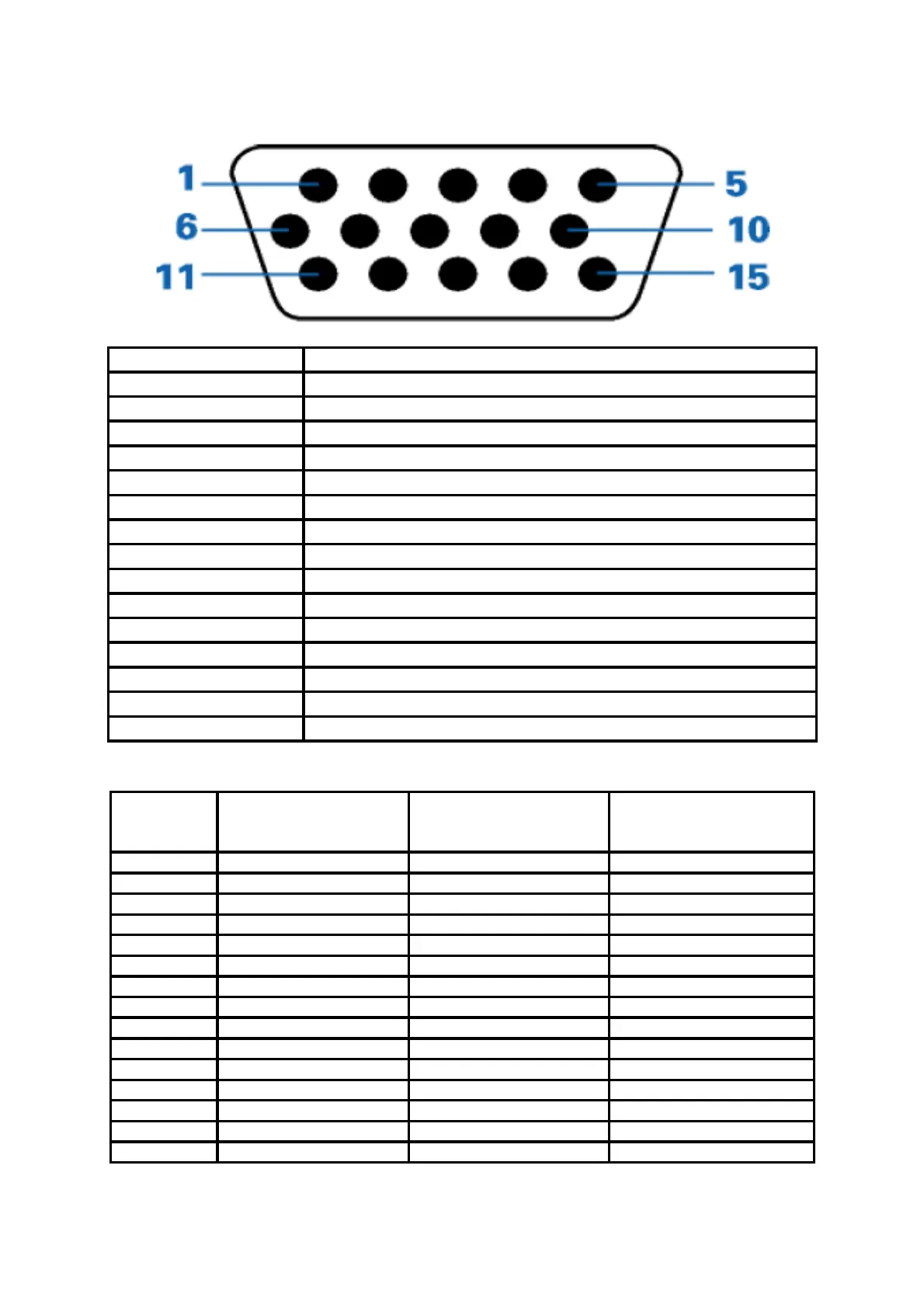

4.1 Input Signal Connector

Pin Number 15-Pin Side of the Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 N.C.

5 Detect Cable

6 GND-R

7 GND-G

8 GND-B

9 +5V

10 Ground

11 N.C.

12 DDC-Serial data

13 H-sync

14 V-sync

15 DDC-Serial clock

4.2 Factory Preset Display Modes

STAND RESOLUTION

HORIZONTAL

FREQUENCY(kHZ)

VERTICAL

FREQUENCY(Hz)

VGA 640 x 480 @60Hz 31.469 59.940

VGA 640 x 480 @72Hz 37.861 72.809

VGA 640 x 480 @75Hz 37.500 75.000

Dos-mode 720 x 400 @70Hz 31.469 70.087

SVGA 800 x 600 @56Hz 35.156 56.250

SVGA 800 x 600 @60Hz 37.879 60.317

SVGA 800 x 600 @72Hz 48.077 72.188

SVGA 800 x 600 @75Hz 46.875 75.000

Mac-mode 832 x 624 @75Hz 49.725 74.500

XGA 1024 x 768 @60Hz 48.363 60.004

XGA 1024 x 768 @70Hz 56.476 70.069

XGA 1024 x 768 @72Hz 57.500 72.074

XGA 1024 x 768 @75Hz 60.023 75.029

XGA 1024 x 768 @75Hz 47.712 74.927

WSXGA 1366 x 768 @60Hz 47.765 59.85
