AOC G2778VQ User Manual

12
System requirement
FreeSync function
1. FreeSync function is working with DisplayPort.
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting
www.AMD.com
• AMD Radeon R9 295X2
• AMD Radeon R9 290X
• AMD Radeon R9 290
• AMD Radeon R9 285
• AMD Radeon R7 260X
• AMD Radeon R7 260

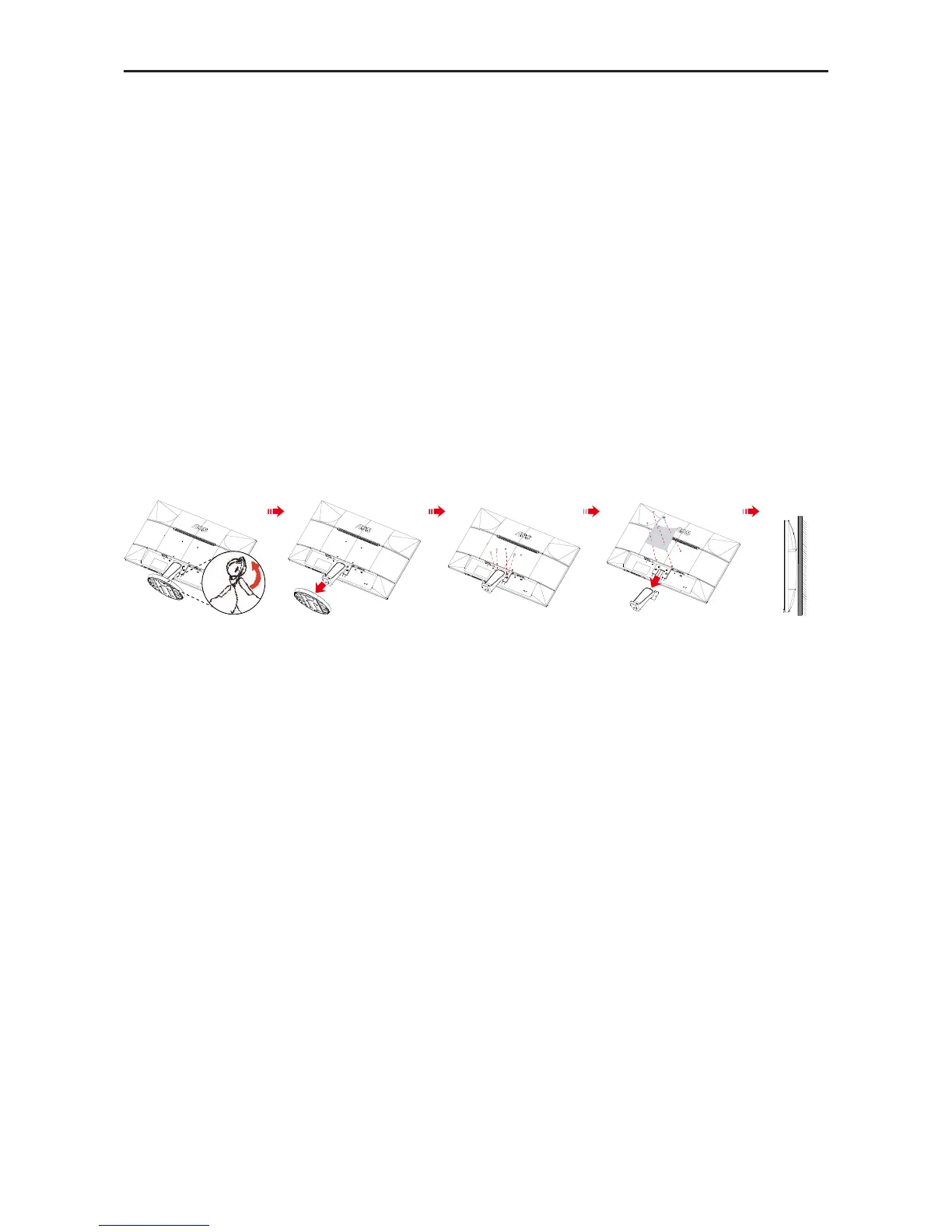

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:
1. Remove the base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of
the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Noted : VESA mounting screw holes are not available for all models, please check with the dealer or ofcial department
of AOC.

AOC G2778VQ Specifications

General

3D	No
Panel type	TN
Color depth	8 bit
Pixel pitch	0.311 x 0.311 mm
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	27 \
Display technology	-
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1440p
Viewable size, vertical	335.66 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	596.74 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Dynamic contrast ratio marketing name	Mega Contrast
RMS rated power	4 W
Number of speakers	2
HDMI version	1.4
DisplayPort version	1.2
DVI-D ports quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	49 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	32 W
Tilt angle range	-4 - 21 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Feet color	Black/Red
Certification	ISO
Product color	Black, Red
Front bezel color	Black
Heavy metals free	Hg (mercury)
Market positioning	Gaming
Package type	Box
Package depth	215 mm
Package width	729 mm
Package height	555 mm
Package weight	6770 g
VGA cable length	1.8 m
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
AMD FreeSync type	FreeSync
AMD FreeSync refresh rate range	30 - 144 Hz
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	299.1 mm
Height (with stand)	470.7 mm
Weight (with stand)	4720 g
Width (without stand)	640.3 mm
Height (without stand)	- mm
Weight (without stand)	- g
