AOC G2778VQ - Connector Pin Assignment Details

48

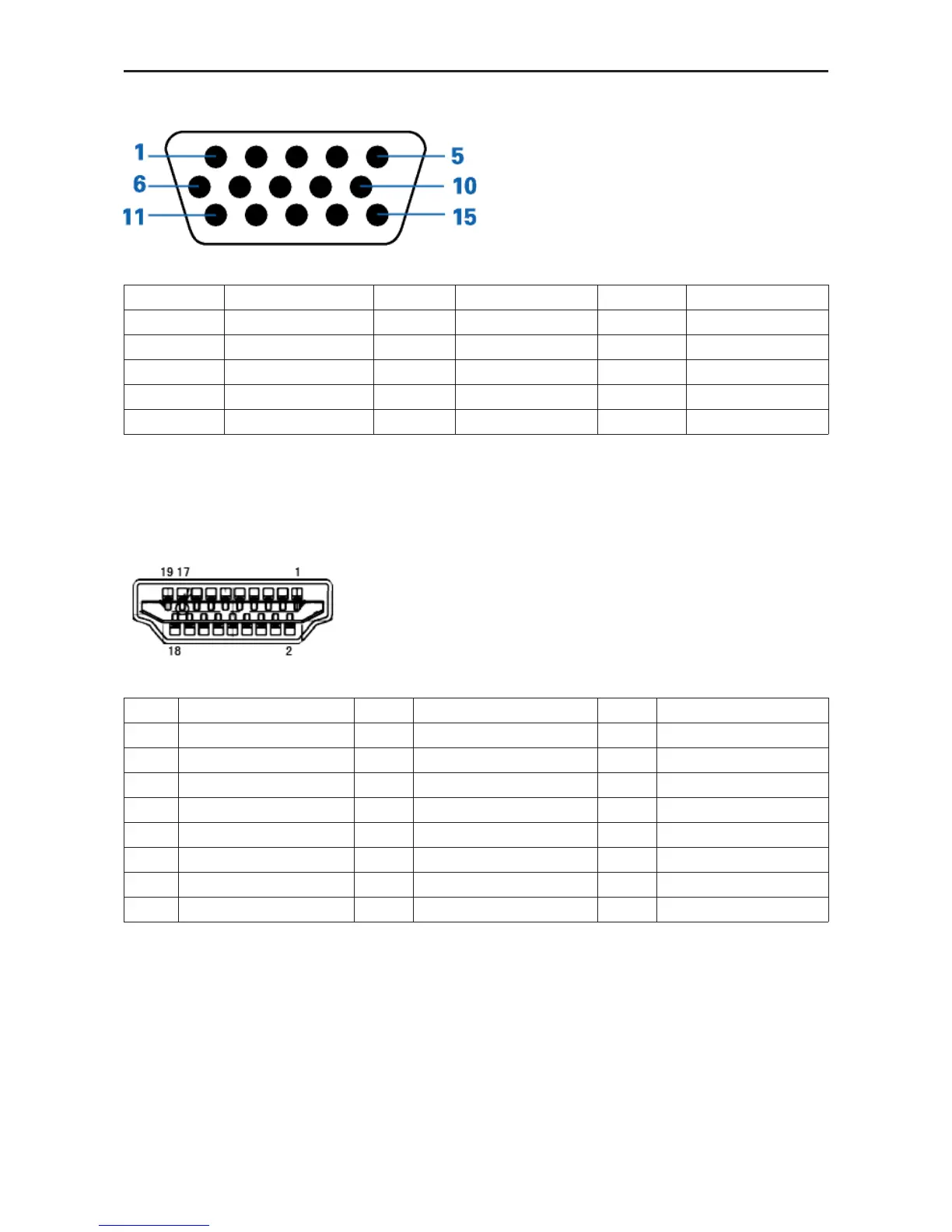

Pin Assignments
15-Pin Color Display Signal Cable
Pin Number
Signal Name Pin Number Signal Name Pin Number Signal Name
1 Video-Red 6 GND-R 11 N.C.
2 Video-Green 7 GND-G 12 DDC-Serial data
3 Video-Blue 8 GND-B 13 H-sync
4 N.C. 9 +5V 14 V-sync
5 Detect Cable 10 Ground 15 DDC-Serial clock
19-Pin Color Display Signal Cable
Pin No.
Signal Name Pin No. Signal Name
Pin No. Signal Name
1 TMDS Data 2+ 9 TMDS Data 0- 17 DDC/CEC Ground
2 TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power
3 TMDS Data 2- 11 TMDS Clock Shield 19 Hot Plug Detect
4 TMDS Data 1+ 12 TMDS Clock -
5 TMDS Data 1Shield 13 CEC
6 TMDS Data 1- 14 Reserved (N.C. on device)
7 TMDS Data 0+ 15 SCL
8 TMDS Data 0 Shield 16 SDA
