Page #18 background imageLoading...
Page #18 background image
18
A Save dialog box will open, and you may navigate to where you wish to save the file.
Click the Save button to save the exported profile.

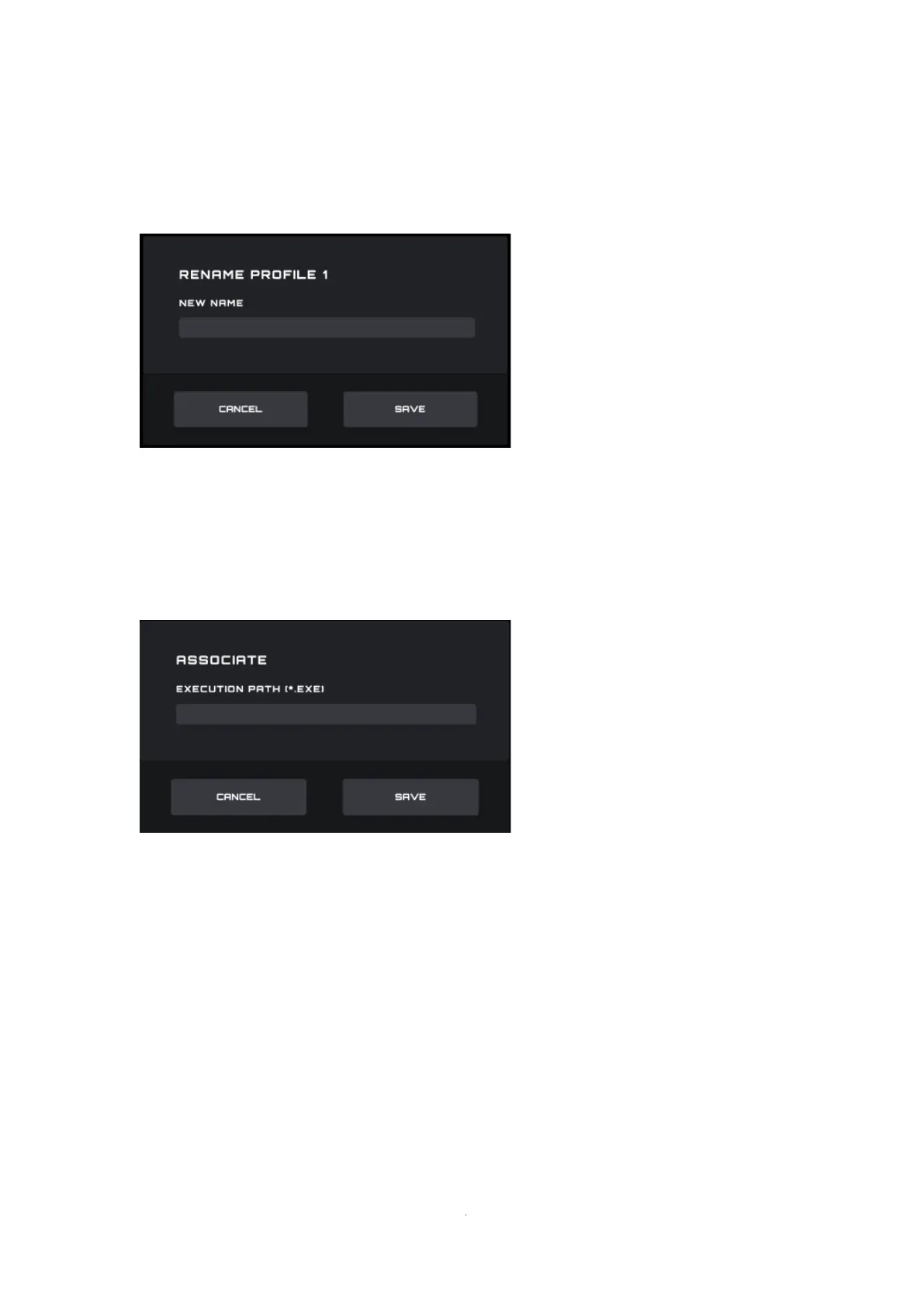

D) Rename
Change the name of the current profile. It cannot be a duplicate of an existing profile
name.
Click the Save button to save the new name.
Click the Cancel button to close the pop-up box.
E) Associate
You may associate an executable file to run each time the profile is selected.
Click the File button to open a File Explorer dialog box that shows .exe files.
Or you can directly enter the execution path in the input box.
After selecting the application, click the Open button, the path will be automatically
filled into the input box.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC GH300 and is the answer not in the manual?

AOC GH300 Specifications

General IconGeneral
Cable length2 m
Control typeLever
Headset typeBinaural
Product typeHeadphones
Plug and PlayYes
Product colorBlack, Red
Wearing styleHead-band
Operating keysVolume +, Volume -, Mute
Detachable cableNo
Control unit typeIn-line control unit
Recommended usageGaming
Device compatibilityUniversal
Connectivity technologyWired
Microphone typeBoom
Microphone frequency100 - 10000 Hz
Microphone sensitivity-38 dB
Microphone direction typeOmnidirectional
Microphone input impedance2200 Ω
Quantity1
Package typeBox
Package weight667 g
Cable featuresBraided
Bundled softwareAOC G-Menu
Audio output channels7.1 channels
Channel balance (1kHz)3 dB
Operation voltage range1.1 - 4.5 V
Compatible operating systemsMac, Windows, Xbox, Linux
Output power15 mW
Harmonized System (HS) code85183000
Weight and Dimensions IconWeight and Dimensions
Depth100 mm
Width195 mm
Height160 mm
Weight363.5 g
