AOC L42H861 Service Manual

42″LCD TV AOC L42H861
14
3. Turn on the power to the HDTV and your DVD player.
4. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI
button on the Remote.

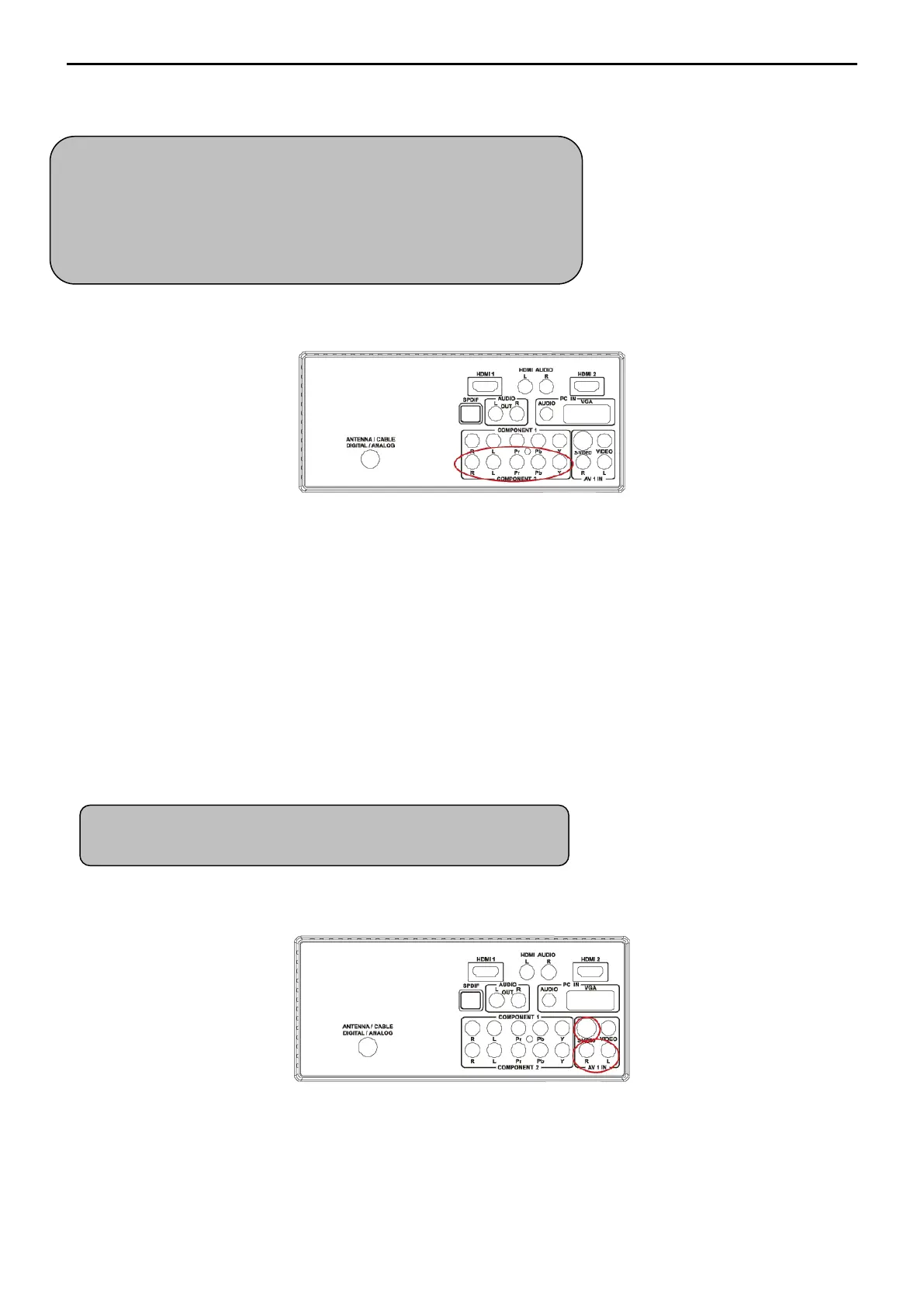

Using Component Video
Connecting your DVD Player (Better)
1. Turn off the power to the HDTV and DVD player.
2. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color) connector in the
Component at the rear of the HDTV.
3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue color) connector in
the Component group at the rear of the HDTV.
4. Connect the Y (green color) connector on your DVD player to the corresponding Y (green color) connector in
the Component group at the rear of the HDTV.
5. Using an audio cable (red and white connectors), connect the cable to the audio output connectors
associated with the Component output on your DVD player and connect the other end to the audio
connectors associated with the Component input at the rear of the HDTV.
6. Turn on the power to the HDTV and DVD player.
7. Select Component using the INPUT button on the remote, side of the HDTV or directly by pressing the
Component button on the Remote Control.
Using S-Video (AV)
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the AV group on the rear of
the HDTV.
3. Connect an audio cable (white and red connectors) to the audio output connectors associated with the
S-Video output on your DVD player and connect the other end to the audio connectors associated with the AV
input on the rear of the HDTV.
4. Turn on the power to the HDTV and DVD player.
Note:
1. Refer to your DVD player user manual for more information
about the video output requirements of the product.
2. The DVI to HDMI connection provides video only. Connection
to an alternate audio player is required for audio output.
Note: Refer to your DVD player user manual for more information
about the video output requirements of the product.

AOC L42H861 Specifications

General

3D	No
Power LED	Yes
Pixel pitch	0.4845 x 0.4845 mm
Vertical scan range	60 - 75 Hz
Headphone connectivity	3.5 mm
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 60 kHz
Response time	8 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	251.46 mm
Package width	1155.7 mm
Package height	807.72 mm
Package weight	25600 g
Certification	FCC, cULus, RoHS, TUV-S
Audio (L/R) out	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	400 x 200 mm
Cables included	AC, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
RMS rated power	14 W
Tuner type	Analog
Analog signal format system	NTSC, PAL, PAL M, PAL N

Weight and Dimensions

Depth (with stand)	261.62 mm
Width (with stand)	1010.92 mm
Height (with stand)	688.34 mm
Depth (without stand)	99.06 mm
Height (without stand)	635 mm
