42″LCD TV AOC L42H861

5. Select S-Video (Video 2) using the INPUT button on the remote, side of the HDTV, or directly by pressing the

AV button on the Remote Control.

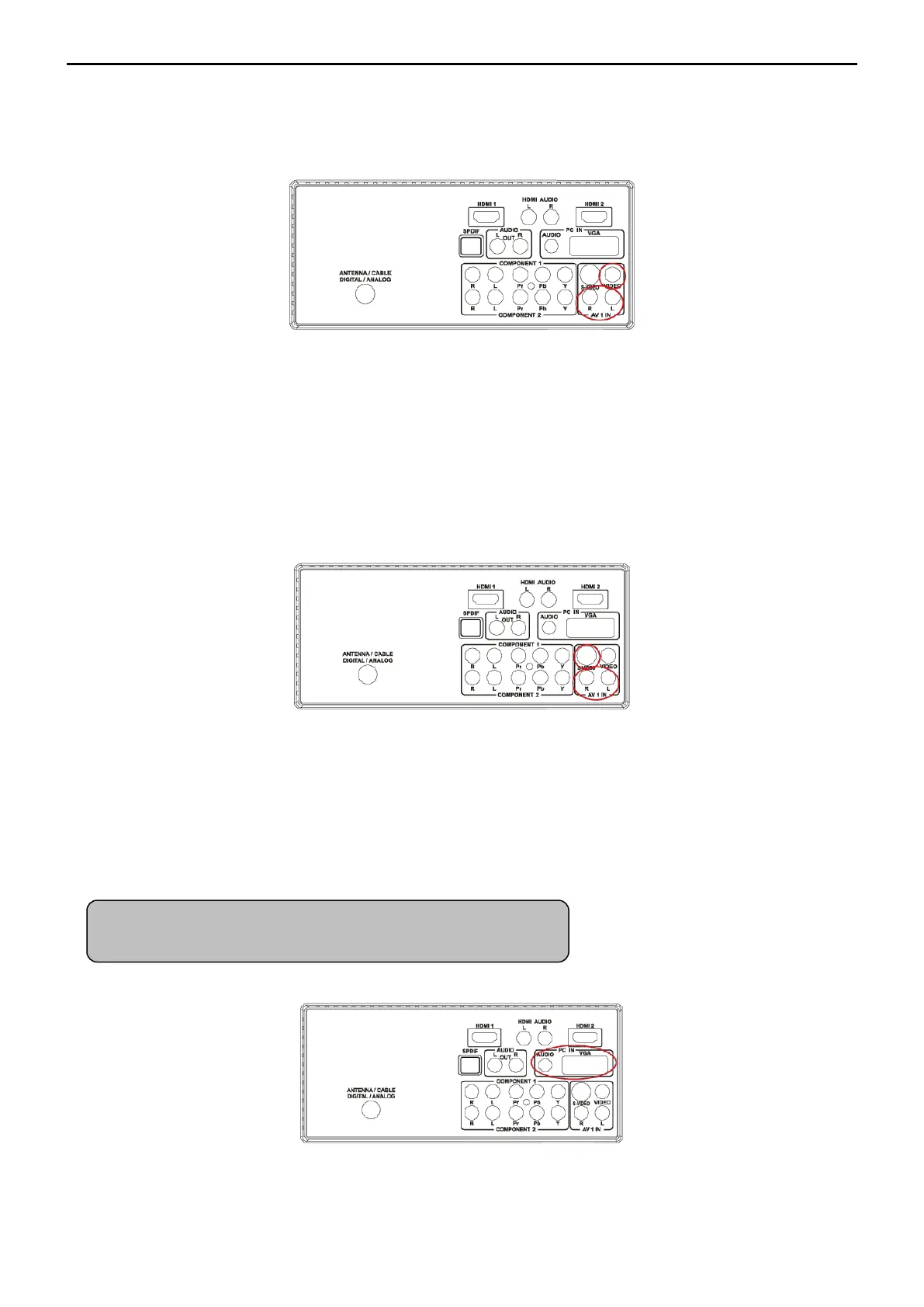

Using Composite (AV) Video

Connecting your DVD Player (Good)

1. Turn off the power to the HDTV and DVD player.

2. Connect the Video (yellow color) connector on your DVD player to the Video (yellow color) connector in the

AV group.

3. Connect the R (red color) and L (white color) audio connectors on your DVD player to the corresponding R

(red color) and L (white color) audio input connectors in the AV group.

4. Turn on the power to the HDTV and DVD Player.

5. Select Composite (Video 1) using the INPUT button on the remote, side of the HDTV or directly by pressing

the AV button on the Remote Control.

Connecting Your VCR or Video Camera

1. Turn off the HDTV and VCR or Video Camera.

2. Connect the S-Video jack on the rear of your VCR or Video Camera to the S-Video jack in the AV group on

the rear of the HDTV.

3. Connect an audio cable (white and red connectors) cable to the audio output connectors associated with the

S-Video output on your VCR or Video Camera and connect the other end to the audio connectors associated

with the AV input on the rear of the HDTV.

4. Turn on the power to the HDTV and VCR or Video Camera.

5. Select S-Video (Video 2) using the INPUT button on the remote, side of the HDTV or directly by pressing the

AV button on the Remote Control.

Connecting to a PC Computer

1. Turn off the power to the HDTV and PC Computer.

2. Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of your pc computer and the other end to the

RGB PC input at the rear of the HDTV.

3. Connect the Audio Out on your pc computer to the RGB PC Audio input at the rear of the HDTV.

Note: Refer to your VCR or Video Camera user manual for more

information about the video output requirements of the product.
