AOC L42H861 Service Manual

42″LCD TV AOC L42H861
7

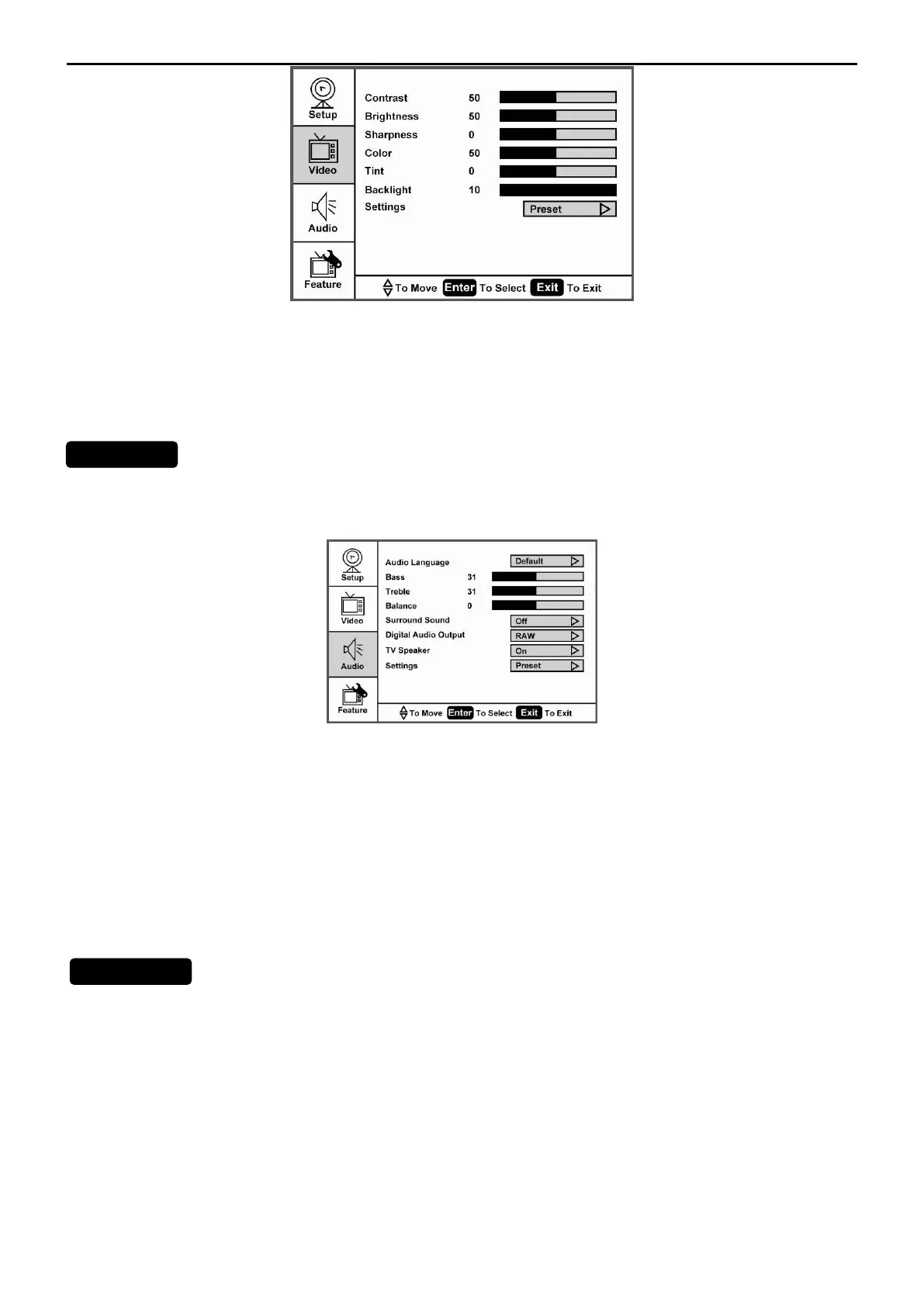

1. Contrast: Video contrast adjustment, the tuning range is 0 ~ 100.
2. Brightness: Video brightness adjustment, the tuning range is 0 ~ 100.
3. Sharpness: Video sharpness adjustment, the tuning range is -50 ~ 50.
4. Color: Video color chroma adjustment, the tuning range is 0 ~ 100.
5. Tint: Video tint adjustment, the tuning range is R50 ~ G50.
6. BackLight: Backlight strength adjustment, the tuning range is 0 ~ 10.
7. Settings: Restore the default video settings.
The Audio menu in TV mode shows as below. It provides audio adjustment for user to modify the audio setting.
Audio language setting is only available with ATSC TV source, the option is disable under other source modes.
1.Audio Language:Change the audio language setting on ATSC TV programs
The number of the supported audio languages depends on the ATSC TV programs.
2. Bass: Bass tone adjustment, the tuning range is 0 ~ 63. (The default state is enabled)
3. Treble: Treble tone adjustment, the tuning range is 0 ~ 63. (The default state is enabled)
4. Balance: Audio balance adjustment, the tuning range is L31 ~ R31.)
5. Surround sound: press this item to on/off the stereo sound effect for audio.
6. Digital Audio Output: Digital audio output format selection, user can choose RAW (default) or PCM format or
off.
7. TV Speaker: Choose to turn on / off the TV internal speaker. The digital audio output signals、earphone output
signals will not be turn-off even though the TV speaker is off. The default setting is On.
8. Settings: Restore the default audio settings.
The Feature menu in TV mode shows as below. It provides certain optional control functions such as time set, sleep
timer, advanced video menu, Password Set, parental control (V-chip) and Digtal closed caption setting. This menu
gives users the most flexibilities to satisfy their generally demands. According to the various requirements in different
source modes, certain features should be hidden (disable) on the menu. The details footnotes will be described
clearly below.
AUDIO MENU
FEATURE MENU

AOC L42H861 Specifications

General

3D	No
Power LED	Yes
Pixel pitch	0.4845 x 0.4845 mm
Vertical scan range	60 - 75 Hz
Headphone connectivity	3.5 mm
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 60 kHz
Response time	8 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	251.46 mm
Package width	1155.7 mm
Package height	807.72 mm
Package weight	25600 g
Certification	FCC, cULus, RoHS, TUV-S
Audio (L/R) out	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	400 x 200 mm
Cables included	AC, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
RMS rated power	14 W
Tuner type	Analog
Analog signal format system	NTSC, PAL, PAL M, PAL N

Weight and Dimensions

Depth (with stand)	261.62 mm
Width (with stand)	1010.92 mm
Height (with stand)	688.34 mm
Depth (without stand)	99.06 mm
Height (without stand)	635 mm
