Using Component Video

Connecting your DVD Player (Better)

1. Turn off the power to the HDTV and DVD player.

2. Connect the Pr (red color) connector on your DVD player to the

corresponding Pr (red color) connector in the Component at the rear of the

HDTV.

3. Connect the Pb (blue color) connector on your DVD player to the

corresponding Pb (blue color) connector in the Component group at the

rear of the HDTV.

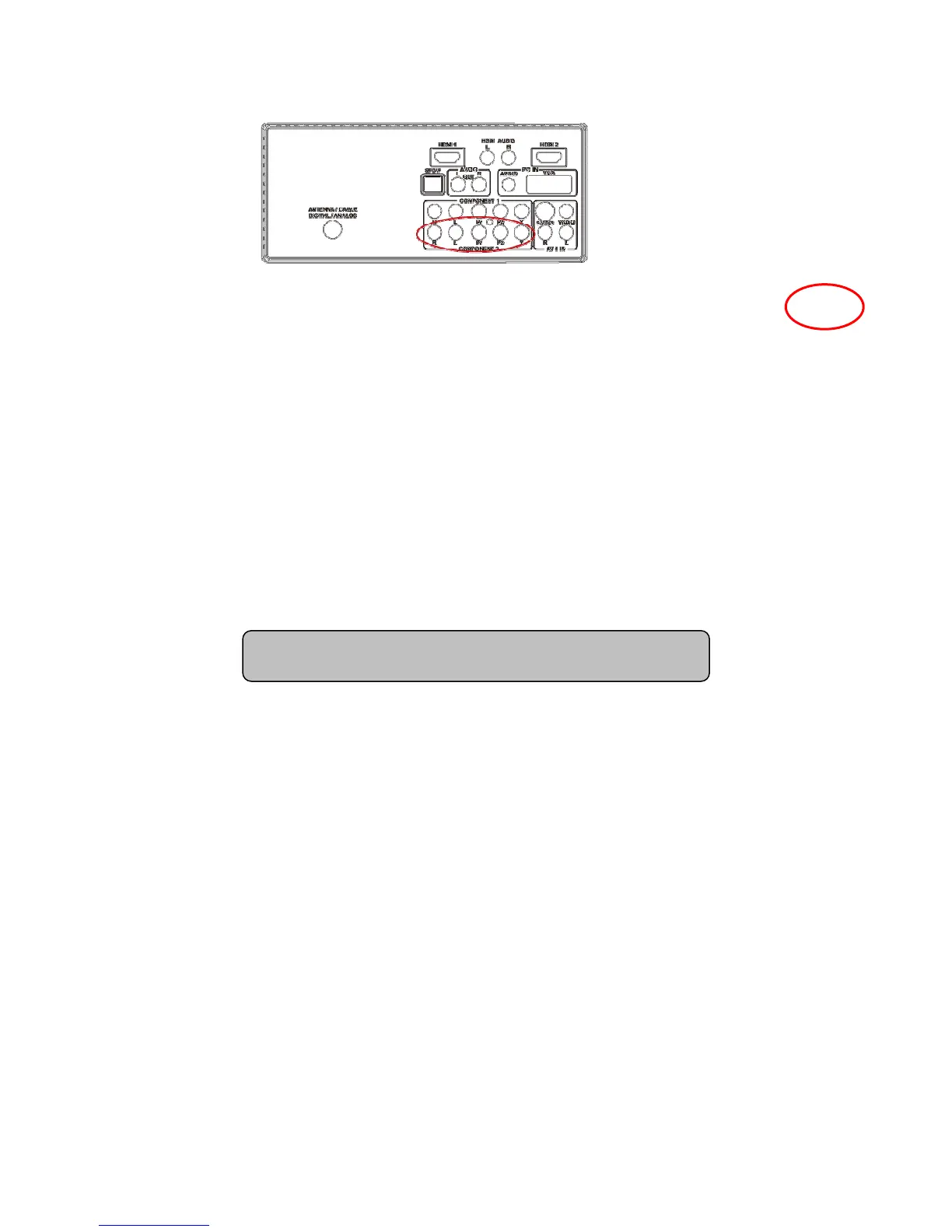

4. Connect the Y (green color) connector on your DVD player to the

corresponding Y (green color) connector in the Component group at the

rear of the HDTV.

5. Using an audio cable (red and white connectors), connect the cable to the

audio output connectors associated with the Component output on your

DVD player and connect the other end to the audio connectors associated

with the Component input at the rear of the HDTV.

6. Turn on the power to the HDTV and DVD player.

7. Select Component using the INPUT button on the remote, side of the

HDTV or directly by pressing the Component button on the Remote

Control.

Note: Refer to your DVD player user manual for more information

about the video output requirements of the product.
