Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video Camera.

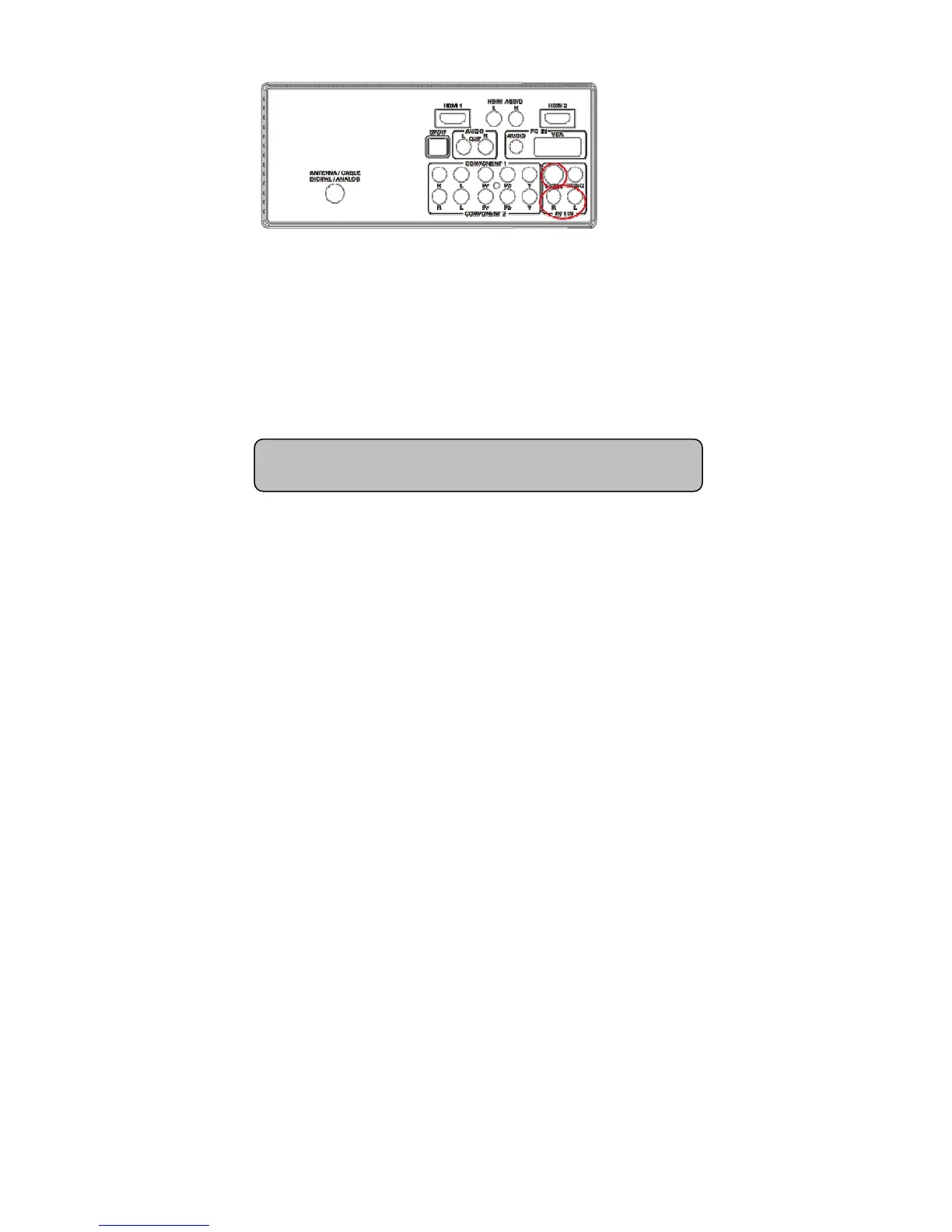

2. Connect the S-Video jack on the rear of your VCR or Video Camera to the
S-Video jack in the AV group on the rear of the HDTV.
3. Connect an audio cable (white and red connectors) cable to the audio
output connectors associated with the S-Video output on your VCR or
Video Camera and connect the other end to the audio connectors
associated with the AV input on the rear of the HDTV.
4. Turn on the power to the HDTV and VCR or Video Camera.
5. Select S-Video (Video 2) using the INPUT button on the remote, side of
the HDTV or directly by pressing the AV button on the Remote Control.
Note: Refer to your VCR or Video Camera user manual for more
information about the video output requirements of the product.
