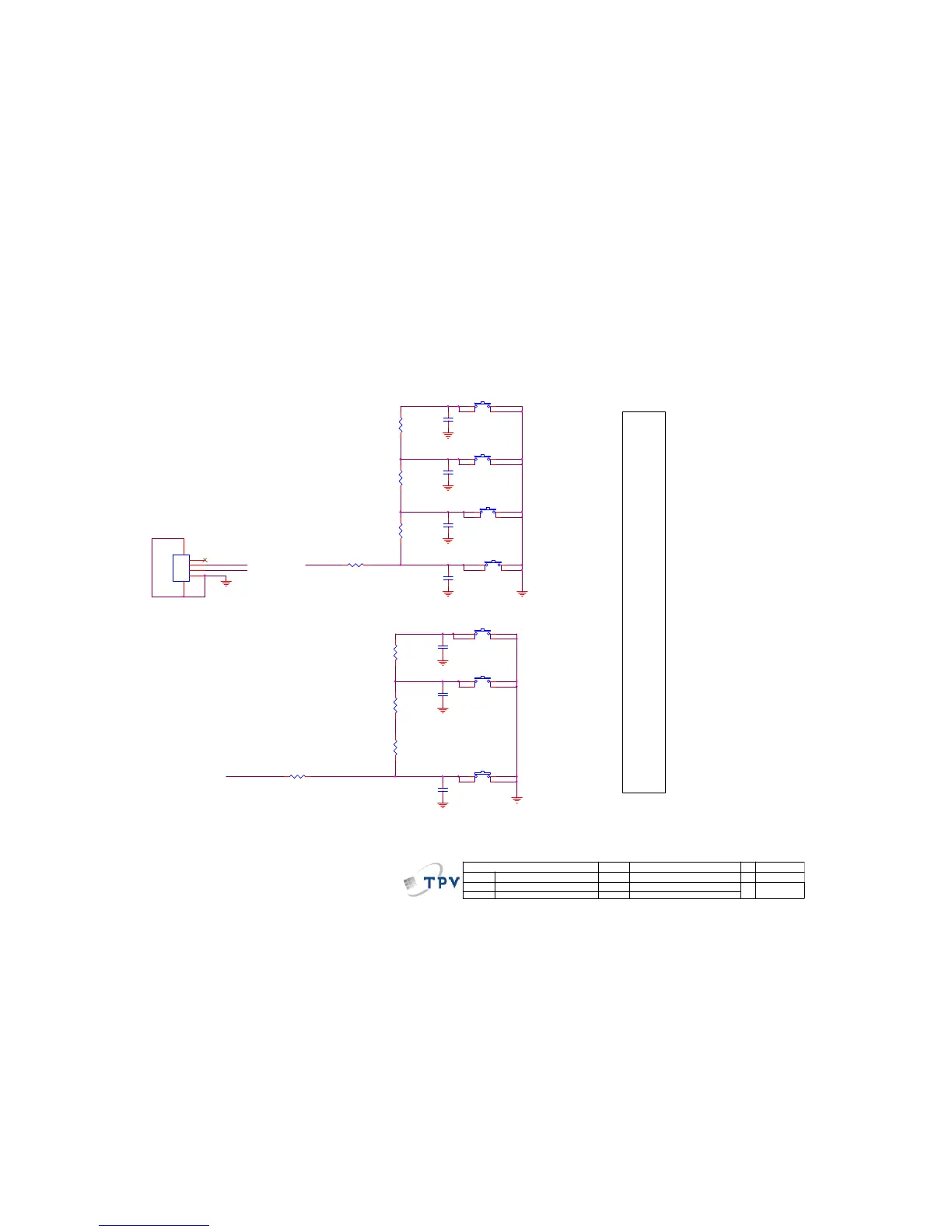

9.3 KEY Board
715G3814K01003004S
~0.3045V
~0.0118V
~0.9015V
~0.6059V
Power ON/OFF
Source Select
MENU
CH-
VOL-
VOL+
NONE KEY
CH+
~1.2V
PWR-SW
FUNC_KEY
R01
20K 1/10W
R02
6.8KOHM +-1% 1/10W
33T3802 4H
R03
3K3 1/10W 1%
R08
100R 1/10W 1%
R09
100R 1/10W 1%
FUNC_KEY
OEM MODEL
Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬隔瓜絪腹 B
Custom
22Tuesday , May 11, 2010
称爹 <>
02-Keypad
R07
3K3 1/10W 1%
C01
NC
SW01
TACT SW FWRD H1.5MM
C07
NC
SW2
TACT SW FWRD H1.5MM
SW3
TACT SW FWRD H1.5MM
R05
20K 1/10W
C05
NC
SW4
TACT SW FWRD H1.5MM
C03
NC
SW5
TACT SW FWRD H1.5MM
SW6
TACT SW FWRD H1.5MM
SW7
TACT SW FWRD H1.5MM
C06
NC
C02
NC
C04
NC
PWR-SW
R06
6.8KOHM +-1% 1/10W
77T 600 1GCJ
~0.0118V
~0.6059V
~0.9015V
CN2
CONN
1
2
3
4
65
