22

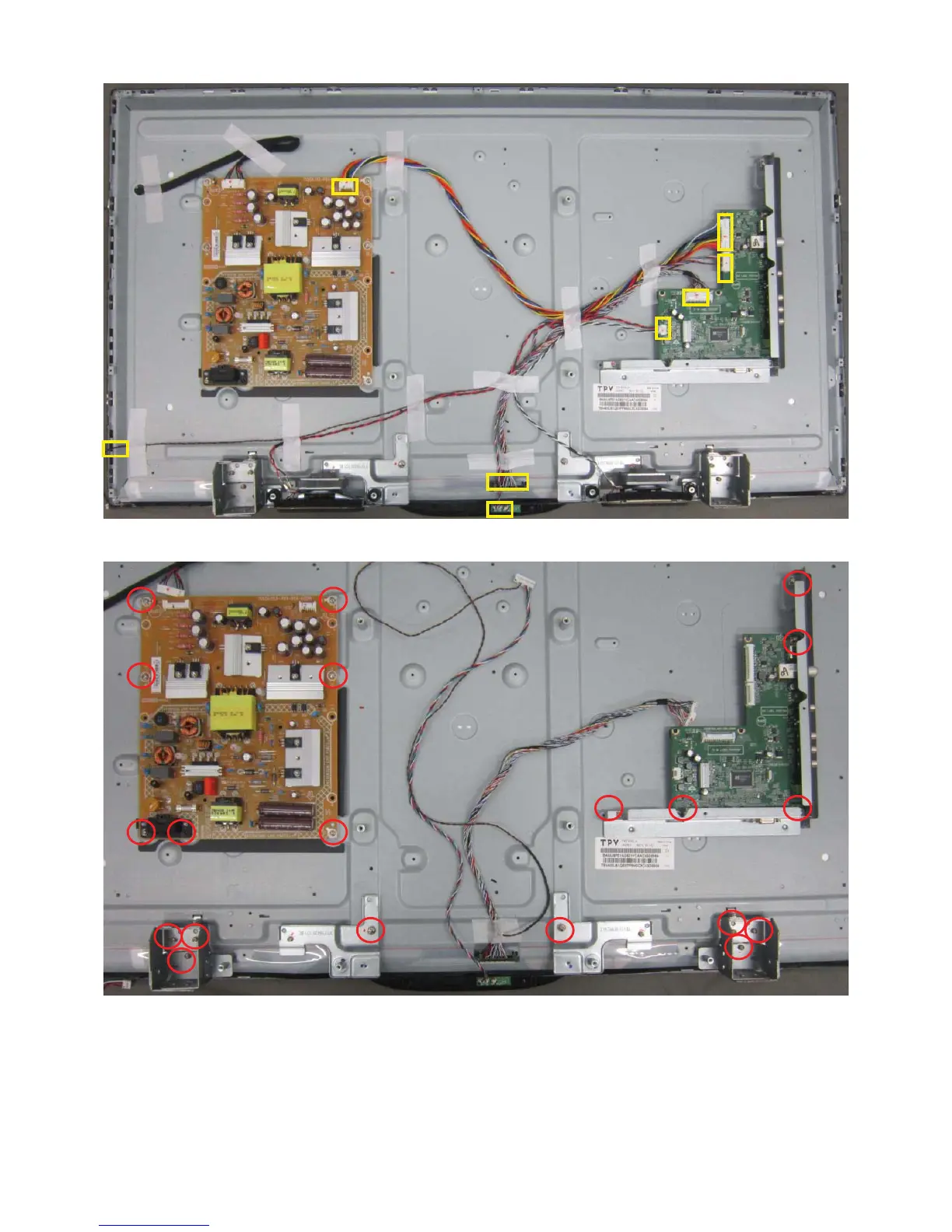

3. Disconnect the PINS marked in yellow, then remove the CABLES and SPEAKERS.
4. Remove the screws marked in red to remove MAIN BOARD, POWER BOARD, BKT_SPEAKER, ,
BKT_STAND.
