AOC M2470SWH User Manual

22

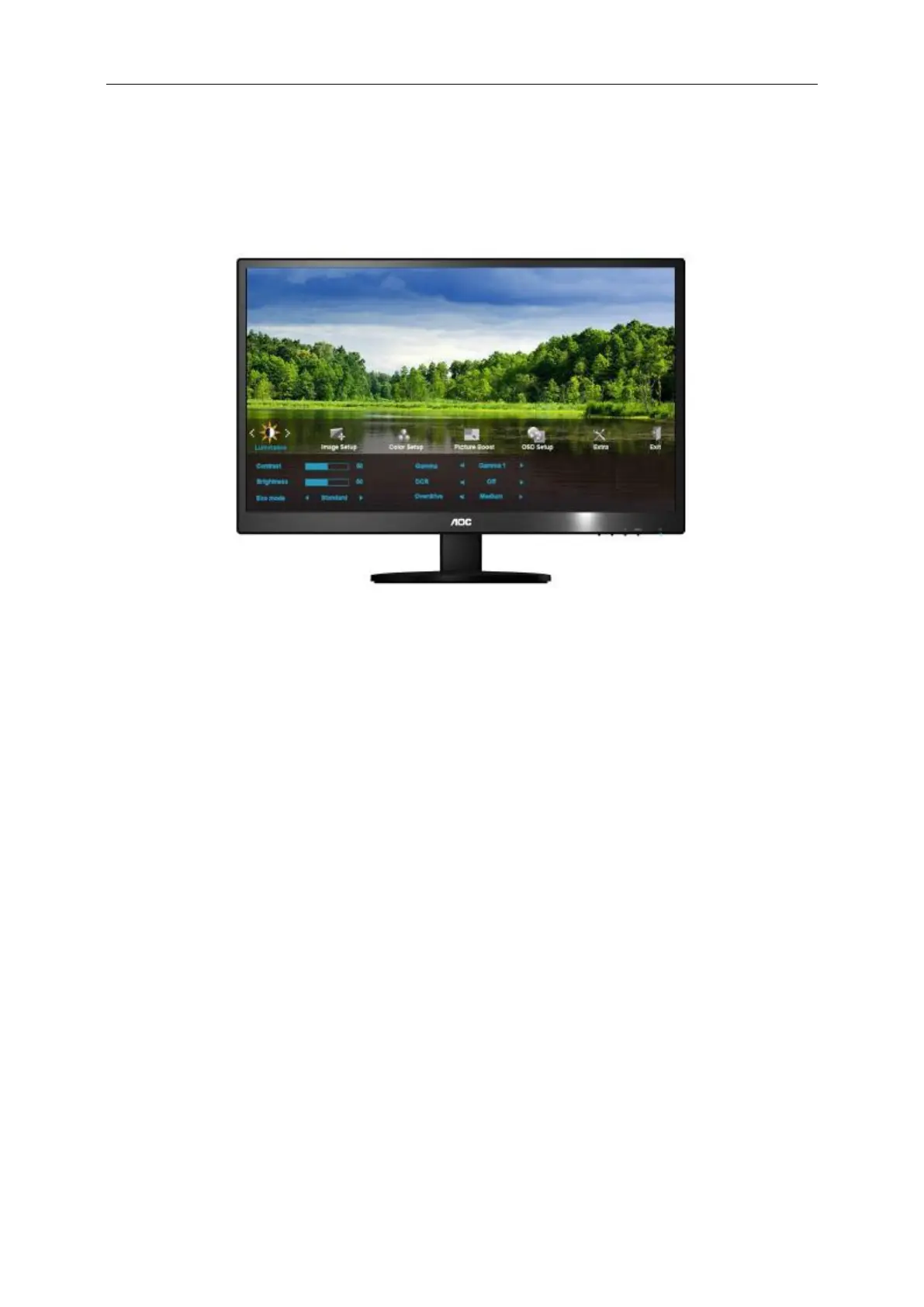

OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate it . press - or + to navigate through the sub-menu functions. Once the desired
function is highlighted, press MENU-button to activate it.
3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any
other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor
is off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are
turned off accordingly.

AOC M2470SWH Specifications

General

3D	No
Panel type	MVA
Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	-
Pixel frequency	165 MHz
Display diagonal	23.6 \
Surface hardness	3H
Display technology	LED
Maximum refresh rate	60 Hz
Supported video modes	1080p
Viewable size, vertical	293.32 mm
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display brightness (peak)	- cd/m²
Display diagonal (metric)	59.944 cm
Viewable size, horizontal	521.28 mm
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	0
RMS rated power	2 W
Exterior finish type	Textured
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.19 W
Power consumption (standby)	0.37 W
Power consumption (typical)	17.96 W
Package type	Box
Package depth	435 mm
Package width	620 mm
Package height	127 mm
Package weight	5210 g
VGA cable length	1.2 m
Cables included	AC, HDMI, VGA
HDMI cable length	1.5 m
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	221 mm
Height (with stand)	400.4 mm
Weight (with stand)	3580 g
Depth (without stand)	78.2 mm
Width (without stand)	551.4 mm
Height (without stand)	396.9 mm
Weight (without stand)	- g
